Power Circuits / Switching Regulator or Controllers / LM3224MMX-ADJ/NOPB
Datasheets
LM3224MMX-ADJ/NOPB by:
Texas Instruments
National Semiconductor Corporation
Texas Instruments
Not Found

615kHz/1.25MHz Step-up PWM DC/DC Converter 8-VSSOP

Part Details for LM3224MMX-ADJ/NOPB by Texas Instruments

Results Overview of LM3224MMX-ADJ/NOPB by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics

LM3224MMX-ADJ/NOPB Information

LM3224MMX-ADJ/NOPB by Texas Instruments is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TCKE712BNL Toshiba Electronic Devices & Storage Corporation eFuse IC (electronic Fuse), 4.4 to 13.2 V, 3.65 A, Latch, Adjustable Over Voltage Protection, WSON10
CA3085B Rochester Electronics LLC CA3085 - Adjustable Positive Standard Regulator
CA3085AE Rochester Electronics LLC CA3085 - Adjustable Positive Standard Regulator, 1.6V Min, 37V Max, BIPolar, PDIP8

Price & Stock for LM3224MMX-ADJ/NOPB

Part # Distributor Description Stock Price Buy
DISTI # 296-38108-1-ND
DigiKey IC REG BOOST ADJ 1.9A 8VSSOP Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $2.7800
  • 3,500 $1.4454
  • 7,000 $1.4189
$1.4189 / $2.7800 Buy Now
DISTI # 926-LM3224MMXADJNOPB
Mouser Electronics Switching Voltage Regulators Switching Volt Reg S TEPupPWM DC/DC CONV A 926-LM3224MM-ADJNOPB RoHS: Compliant 3293
  • 1 $3.3400
  • 10 $2.8400
  • 3,500 $1.4400
$1.4400 / $3.3400 Buy Now
LCSC Boost type 1.9A 2.7V7V 1.26V20V VSSOP-8-0.65mm DC-DC Converters ROHS 3
  • 1 $2.9658
  • 10 $2.5568
  • 30 $2.3017
  • 100 $2.0180
  • 500 $1.8988
  • 1,000 $1.8474
$1.8474 / $2.9658 Buy Now
Win Source Electronics IC REG BOOST ADJ 1.9A 8VSSOP 7000
  • 45 $1.8539
  • 100 $1.5212
  • 155 $1.4736
  • 215 $1.4261
  • 275 $1.3787
  • 365 $1.2360
$1.2360 / $1.8539 Buy Now

Part Details for LM3224MMX-ADJ/NOPB

LM3224MMX-ADJ/NOPB CAD Models

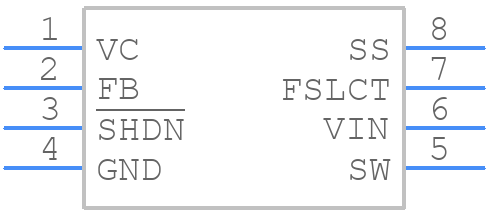

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

LM3224MMX-ADJ/NOPB Part Data Attributes

Parametric Data
LM3224MMX-ADJ/NOPB Texas Instruments
Buy Now Datasheet
Compare Parts:
LM3224MMX-ADJ/NOPB Texas Instruments 615kHz/1.25MHz Step-up PWM DC/DC Converter 8-VSSOP
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code MSOP
Package Description GREEN, PLASTIC, MSOP-8
Pin Count 8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Max 7 V
Input Voltage-Min 2.7 V
Input Voltage-Nom 2.7 V
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Outputs 1
Number of Terminals 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current-Max 2.8 A
Output Voltage-Max 20 V
Output Voltage-Min 1.26 V
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.09 mm
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 1250 kHz
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3 mm

Alternate Parts for LM3224MMX-ADJ/NOPB

This table gives cross-reference parts and alternative options found for LM3224MMX-ADJ/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LM3224MMX-ADJ/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LM3224MMX-ADJ Texas Instruments Check for Price 2.8A SWITCHING REGULATOR, 1500kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, MSOP-8 LM3224MMX-ADJ/NOPB vs LM3224MMX-ADJ
LM3224MM-ADJ Texas Instruments Check for Price 2.8A SWITCHING REGULATOR, 1500kHz SWITCHING FREQ-MAX, PDSO8, PLASTIC, MSOP-8 LM3224MMX-ADJ/NOPB vs LM3224MM-ADJ
LM3224MM-ADJ/NOPB National Semiconductor Corporation Check for Price IC 2.8 A SWITCHING REGULATOR, 1500 kHz SWITCHING FREQ-MAX, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8, Switching Regulator or Controller LM3224MMX-ADJ/NOPB vs LM3224MM-ADJ/NOPB
LM3224MMX-ADJ/NOPB National Semiconductor Corporation Check for Price IC 2.8 A SWITCHING REGULATOR, 1500 kHz SWITCHING FREQ-MAX, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8, Switching Regulator or Controller LM3224MMX-ADJ/NOPB vs LM3224MMX-ADJ/NOPB

LM3224MMX-ADJ/NOPB Frequently Asked Questions (FAQ)

  • The maximum input voltage is 15V, but it's recommended to keep it below 14V for reliable operation and to prevent overheating.

  • The output voltage can be adjusted by connecting a resistor divider network between the output and the ADJ pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula: Vout = 1.25V x (1 + R1/R2).

  • The minimum input voltage required is 2.5V, but it's recommended to keep it above 3V for reliable operation and to ensure the output voltage is within the specified tolerance.

  • The LM3224MMX-ADJ/NOPB is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage to prevent overheating and ensure reliable operation.

  • To ensure stability, it's recommended to use a minimum output capacitance of 10uF and to keep the output voltage within the specified range. Additionally, the input voltage should be well-regulated and free of noise.
