Signal Circuits / Motion Control Electronics / L6229D
Datasheets
L6229D by: STMicroelectronics

DMOS driver for three-phase brushless DC motor

Part Details for L6229D by STMicroelectronics

Results Overview of L6229D by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Robotics and Drones

L6229D Information

L6229D by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for L6229D

Part # Distributor Description Stock Price Buy
DISTI # 497-5839-5-ND
DigiKey IC MOTOR DRIVER 12V-52V 24SO Min Qty: 1 Lead time: 30 Weeks Container: Tube 360
In Stock
  • 1 $6.5400
  • 10 $5.0260
  • 32 $4.5625
  • 128 $4.1754
  • 256 $4.0315
  • 512 $3.9131
  • 1,024 $3.8156
  • 2,528 $3.7140
$3.7140 / $6.5400 Buy Now
DISTI # L6229D
Avnet Americas 3-Phase Brushless DC Motor Controller 24-Pin SO Tube - Rail/Tube (Alt: L6229D) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 30 Weeks, 0 Days Container: Tube 0
  • 800 $3.5046
  • 1,600 $3.4869
  • 3,200 $3.4692
  • 4,800 $3.4515
  • 6,400 $3.4338
$3.4338 / $3.5046 Buy Now
DISTI # L6229D
Avnet Americas 3-Phase Brushless DC Motor Controller 24-Pin SO Tube - Rail/Tube (Alt: L6229D) RoHS: Compliant Min Qty: 800 Package Multiple: 800 Lead time: 30 Weeks, 0 Days Container: Tube 0
  • 800 $3.5046
  • 1,600 $3.4869
  • 3,200 $3.4692
  • 4,800 $3.4515
  • 6,400 $3.4338
$3.4338 / $3.5046 Buy Now
DISTI # 511-L6229D
Mouser Electronics Motor / Motion / Ignition Controllers & Drivers 3-Phase DC Motor RoHS: Compliant 717
  • 1 $6.5400
  • 10 $5.0300
  • 25 $4.5700
  • 100 $4.1800
  • 250 $4.0400
  • 800 $3.8100
$3.8100 / $6.5400 Buy Now
STMicroelectronics DMOS driver for three-phase brushless DC motor RoHS: Compliant Min Qty: 1 717
  • 1 $6.4100
  • 10 $4.9300
  • 25 $4.4800
  • 100 $4.1000
  • 250 $3.9600
  • 500 $3.9600
$3.9600 / $6.4100 Buy Now
Quest Components BRUSHLESS DC MOTOR CONTROLLER, 2.8A, BCDMOS, PDSO24 10
  • 1 $9.3825
  • 2 $6.2550
  • 5 $4.6913
$4.6913 / $9.3825 Buy Now
DISTI # L6229D
TME IC: driver, motor controller, SO24, 1.4A, 100kHz, 12÷52V Min Qty: 1 0
  • 1 $5.7600
  • 32 $5.0400
  • 128 $4.4000
  • 256 $4.2000
  • 512 $4.0200
$4.0200 / $5.7600 RFQ
DISTI # L6229D
Avnet Silica 3Phase Brushless DC Motor Controller 24Pin SO Tube (Alt: L6229D) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 17 Weeks, 0 Days Silica - 1600
Buy Now
DISTI # L6229D
EBV Elektronik 3Phase Brushless DC Motor Controller 24Pin SO Tube (Alt: L6229D) RoHS: Compliant Min Qty: 32 Package Multiple: 32 Lead time: 31 Weeks, 0 Days EBV - 0
Buy Now

Part Details for L6229D

L6229D CAD Models

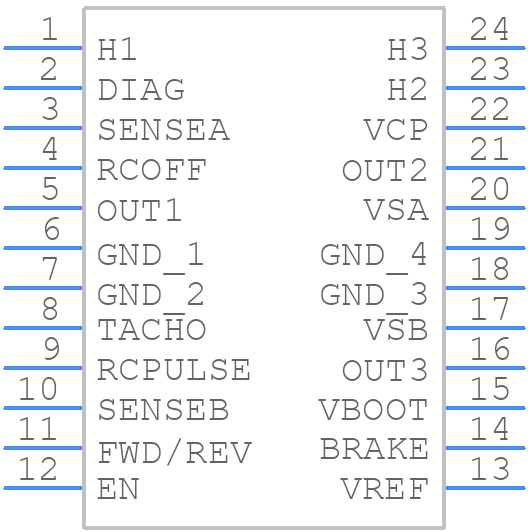

  • Part Symbol

    Part Symbol

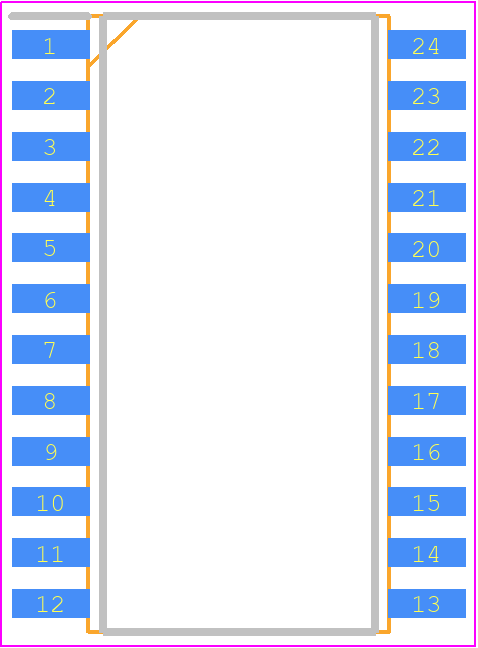

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

L6229D Part Data Attributes

Parametric Data
L6229D STMicroelectronics
Buy Now Datasheet
Compare Parts:
L6229D STMicroelectronics DMOS driver for three-phase brushless DC motor
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description SOP-24
Pin Count 24
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 30 Weeks
Samacsys Manufacturer STMicroelectronics
Analog IC - Other Type BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code R-PDSO-G24
JESD-609 Code e4
Length 15.4 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 150 °C
Operating Temperature-Min -40 °C
Output Current-Max 2.8 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP24,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Current-Max (Isup) 10 mA
Supply Voltage-Max (Vsup) 52 V
Supply Voltage-Min (Vsup) 8 V
Supply Voltage-Nom (Vsup) 48 V
Surface Mount YES
Technology BCDMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7.5 mm

L6229D Related Parts

L6229D Frequently Asked Questions (FAQ)

  • The L6229D can operate from -40°C to 150°C, making it suitable for high-reliability applications.

  • STMicroelectronics provides a dedicated evaluation board and software tools to help engineers configure and optimize the L6229D for their specific motor control application.

  • The L6229D has a maximum current rating of 2.8A per channel, making it suitable for a wide range of motor control applications.

  • The L6229D has built-in overcurrent and overvoltage protection, which can be configured to trigger an interrupt or shutdown the device in case of a fault condition.

  • Yes, the L6229D is designed to meet the requirements of safety-critical applications, such as ISO 26262, and is suitable for use in automotive and industrial control systems.
