L6227DTR by: STMicroelectronics

DMOS dual full bridge driver with PWM current controller

Part Details for L6227DTR by STMicroelectronics

Results Overview of L6227DTR by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Automotive Robotics and Drones

L6227DTR Information

L6227DTR by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for L6227DTR

Part # Distributor Description Stock Price Buy
DISTI # 497-3363-1-ND
DigiKey IC MTR DRVR BIPOLAR 8V-52V 24SO Min Qty: 1 Lead time: 30 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 3628
In Stock
  • 1 $5.9700
  • 10 $4.5750
  • 25 $4.2272
  • 100 $3.8443
  • 250 $3.6617
  • 500 $3.5517
  • 1,000 $3.4612
  • 2,000 $3.3866
$3.3866 / $5.9700 Buy Now
DISTI # L6227DTR
Avnet Americas Motor Driver/Controller, Brushed DC, Stepper, 8 V to 52 V, 2 Outputs, 1.4 A, 24 Pins, SOIC - Tape an... d Reel (Alt: L6227DTR) more RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 30 Weeks, 0 Days Container: Reel 0
  • 1,000 $3.0035
  • 2,000 $2.9846
  • 4,000 $2.9294
  • 6,000 $2.8761
  • 8,000 $2.8248
$2.8248 / $3.0035 Buy Now
DISTI # 511-L6227DTR
Mouser Electronics Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge RoHS: Compliant 766
  • 1 $5.9700
  • 10 $4.5800
  • 25 $4.2300
  • 100 $3.8400
  • 250 $3.6600
  • 500 $3.5500
  • 1,000 $3.4000
  • 2,000 $3.3700
$3.3700 / $5.9700 Buy Now
STMicroelectronics DMOS dual full bridge driver with PWM current controller RoHS: Compliant Min Qty: 1 766
  • 1 $5.8500
  • 10 $4.4900
  • 25 $4.1500
  • 100 $3.7600
  • 250 $3.5900
  • 500 $3.4800
$3.4800 / $5.8500 Buy Now
Future Electronics L6227 Series 52 V Quad Surface Mount Brushed DC Motor Driver - SOIC-24 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 30 Weeks Container: Reel 1000
Reel
  • 1,000 $2.8600
$2.8600 Buy Now
Future Electronics L6227 Series 52 V Quad Surface Mount Brushed DC Motor Driver - SOIC-24 Min Qty: 1000 Package Multiple: 1000 1000
null
  • 1,000 $2.8600
$2.8600 Buy Now
DISTI # L6227DTR
Avnet Silica Motor DriverController Brushed DC Stepper 8 V to 52 V 2 Outputs 14 A 24 Pins SOIC (Alt: L6227DTR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days Silica - 2000
Buy Now
DISTI # L6227DTR
EBV Elektronik Motor DriverController Brushed DC Stepper 8 V to 52 V 2 Outputs 14 A 24 Pins SOIC (Alt: L6227DTR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 31 Weeks, 0 Days EBV - 1000
Buy Now

Part Details for L6227DTR

L6227DTR CAD Models

  • Part Symbol

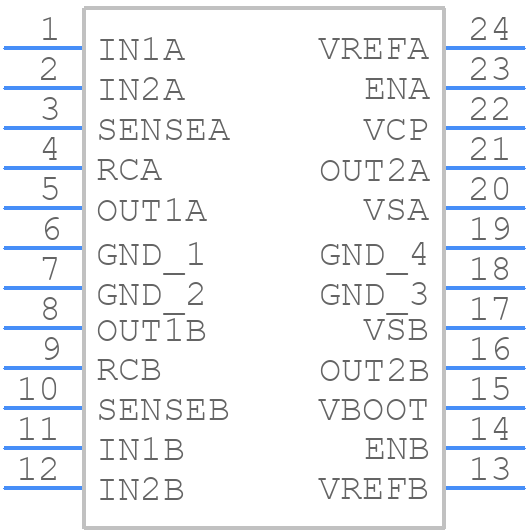

    Part Symbol

  • Footprint

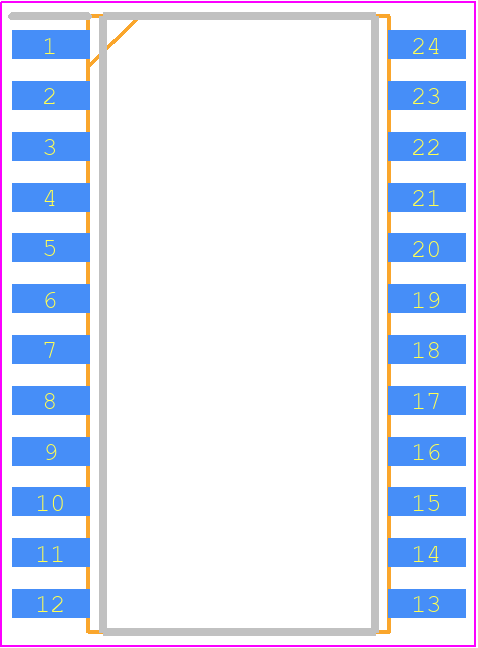

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

L6227DTR Part Data Attributes

Parametric Data
L6227DTR STMicroelectronics
Buy Now Datasheet
Compare Parts:
L6227DTR STMicroelectronics DMOS dual full bridge driver with PWM current controller
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code SOIC
Package Description SO-24
Pin Count 24
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 30 Weeks
Samacsys Manufacturer STMicroelectronics
Analog IC - Other Type STEPPER MOTOR CONTROLLER
JESD-30 Code R-PDSO-G24
JESD-609 Code e4
Length 15.4 mm
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 24
Operating Temperature-Max 150 °C
Operating Temperature-Min -40 °C
Output Current-Max 2.8 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP24,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Current-Max (Isup) 10 mA
Supply Voltage-Max (Vsup) 52 V
Supply Voltage-Min (Vsup) 8 V
Supply Voltage-Nom (Vsup) 48 V
Surface Mount YES
Technology BCDMOS
Temperature Grade AUTOMOTIVE
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 7.5 mm
