HMC1040LP3CETR

Part Details for HMC1040LP3CETR by Analog Devices Inc

Results Overview of HMC1040LP3CETR by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

HMC1040LP3CETR Information

HMC1040LP3CETR by Analog Devices Inc is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.

RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.

Price & Stock for HMC1040LP3CETR

Part # Distributor Description Stock Price Buy
DISTI # 60AK8236
Newark Rf Amplifier, Qfn-16, -40 To 85Deg C, Frequency Min:24Ghz, Frequency Max:43.5Ghz, Gain:25Db, Noi... se Figure Typ:2.7Db, Rf Ic Case Style:Qfn, No. Of Pins:16Pins, Supply Voltage Min:-, Supply Voltage Max:2.5V, Product Range:- Rohs Compliant: Yes |Analog Devices HMC1040LP3CETR more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $72.1800
  • 10 $61.8600
  • 25 $58.1700
  • 50 $58.0500
  • 100 $53.5900
  • 250 $53.4700
  • 500 $49.8600
$49.8600 / $72.1800 Buy Now
DISTI # 1127-3453-1-ND
DigiKey IC AMP VSAT 24GHZ-43.5GHZ 16QFN Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 375
In Stock
  • 1 $69.0300
  • 10 $60.6010
  • 25 $57.6848
  • 100 $57.4515
  • 500 $49.6223
$49.6223 / $69.0300 Buy Now
DISTI # 584-HMC1040LP3CETR
Mouser Electronics RF Amplifier LNA, 24-43.5 GHz RoHS: Compliant 1323
  • 1 $60.5200
  • 10 $54.5300
  • 25 $52.6300
  • 50 $52.5500
  • 100 $50.7600
  • 250 $50.6700
  • 500 $46.9300
$46.9300 / $60.5200 Buy Now
DISTI # V72:2272_07698189
Arrow Electronics RF Amp Single MMIC Amp 43.5GHz 4V 16-Pin QFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2049 Container: Cut Strips Americas - 663
  • 1 $49.9600
  • 10 $49.6000
  • 25 $49.2400
  • 100 $48.8800
  • 250 $48.5100
  • 500 $48.1500
$48.1500 / $49.9600 Buy Now
DISTI # 53051620
Verical RF Amp Single MMIC Amp 43.5GHz 4V 16-Pin QFN EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2049 Americas - 663
  • 1 $49.9600
  • 10 $49.6000
  • 25 $49.2400
  • 100 $48.8800
  • 250 $48.5100
  • 500 $48.1500
$48.1500 / $49.9600 Buy Now
DISTI # HMC1040LP3CETR
Richardson RFPD RF & MW LNA RoHS: Compliant Min Qty: 500 2500
  • 500 $49.7500
  • 1,000 $49.1000
$49.1000 / $49.7500 Buy Now
Win Source Electronics IC AMP VSAT 24GHZ-43.5GHZ 16SMT 429
  • 1 $161.4584
  • 2 $156.2501
  • 3 $151.0416
  • 4 $135.4167
$135.4167 / $161.4584 Buy Now

Part Details for HMC1040LP3CETR

HMC1040LP3CETR CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

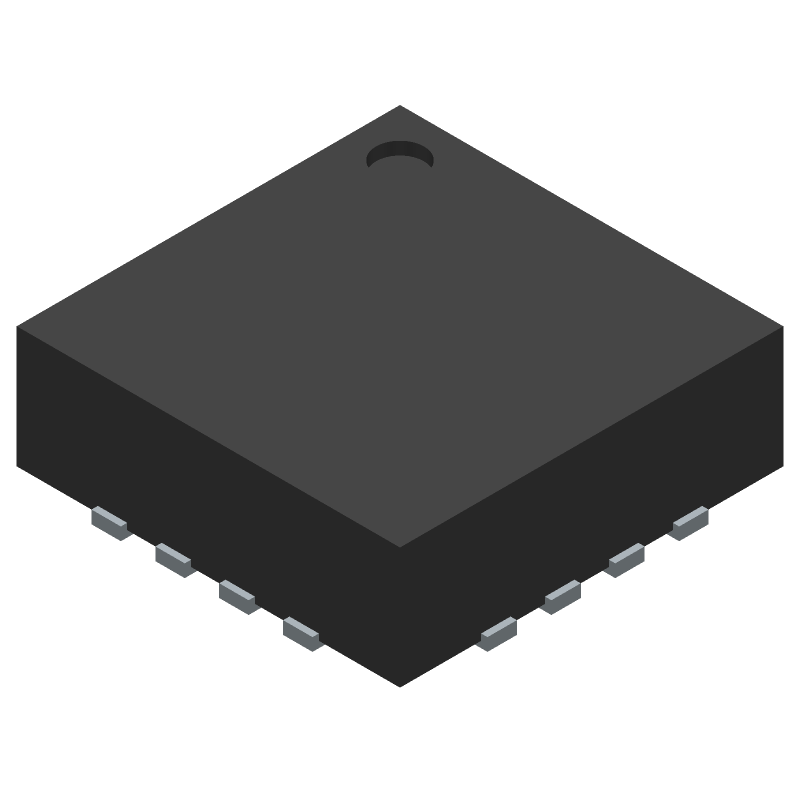

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HMC1040LP3CETR Part Data Attributes

Parametric Data
HMC1040LP3CETR Analog Devices Inc
Buy Now Datasheet
Compare Parts:
HMC1040LP3CETR Analog Devices Inc HMC1040LP3CETR
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Pin Count 16
Manufacturer Package Code HCP-16-3
Reach Compliance Code compliant
ECCN Code 3A001.B.2.D
HTS Code 8542.33.00.01
Samacsys Manufacturer Analog Devices
Characteristic Impedance 50 Ω
Construction COMPONENT
Gain 17 dB
Input Power-Max (CW) 5 dBm
Mounting Feature SURFACE MOUNT
Number of Functions 1
Number of Terminals 16
Operating Frequency-Max 43500 MHz
Operating Frequency-Min 24000 MHz
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Equivalence Code LCC16,.12SQ,20
Power Supplies 2.5 V
RF/Microwave Device Type WIDE BAND LOW POWER
Supply Current-Max 85 mA
Surface Mount YES
Technology GAAS
