HCF4007UBEY by: STMicroelectronics

4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, PDIP14, PLASTIC, DIP-14

Part Details for HCF4007UBEY by STMicroelectronics

Results Overview of HCF4007UBEY by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Communication and Networking

HCF4007UBEY Information

HCF4007UBEY by STMicroelectronics is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for HCF4007UBEY

Part # Distributor Description Stock Price Buy
DISTI # HCF4007UBEY
Avnet Americas Inverter, Dual, 1 Input, 14 Pins, PDIP - Rail/Tube (Alt: HCF4007UBEY) RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Container: Tube 0
RFQ
ComSIT USA Electronic Component RoHS: Compliant Stock DE - 0
Stock ES - 2650
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
DISTI # HCF4007UBEY
EBV Elektronik Inverter Dual 1 Input 14 Pins PDIP (Alt: HCF4007UBEY) RoHS: Compliant Min Qty: 25 Package Multiple: 25 Lead time: 143 Weeks, 0 Days EBV - 0
Buy Now
Vyrian Logic ICs 1381
RFQ

Part Details for HCF4007UBEY

HCF4007UBEY CAD Models

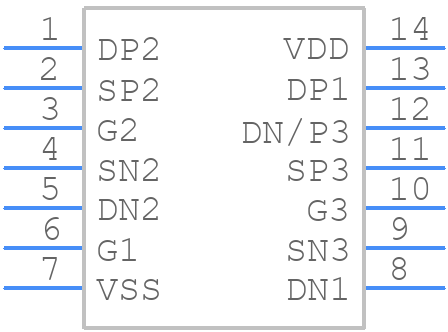

  • Part Symbol

    Part Symbol

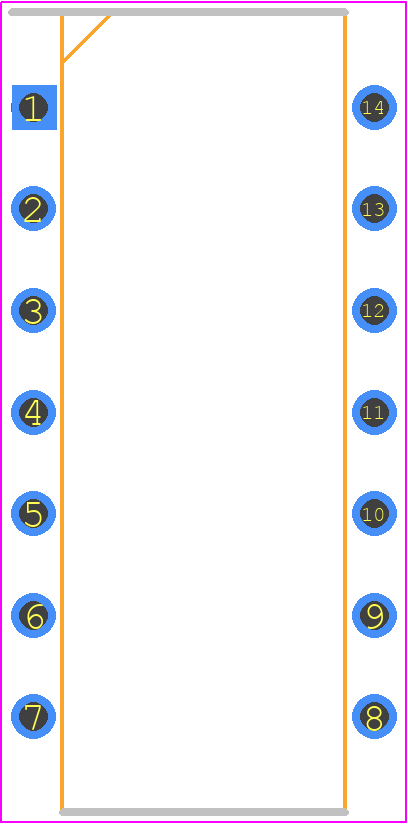

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

HCF4007UBEY Part Data Attributes

Parametric Data
HCF4007UBEY STMicroelectronics
Buy Now Datasheet
Compare Parts:
HCF4007UBEY STMicroelectronics 4000/14000/40000 SERIES, TRIPLE 1-INPUT INVERT GATE, PDIP14, PLASTIC, DIP-14
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer STMICROELECTRONICS
Part Package Code DIP
Package Description PLASTIC, DIP-14
Pin Count 14
Reach Compliance Code compliant
HTS Code 8542.39.00.01
Samacsys Manufacturer STMicroelectronics
Additional Feature DUAL COMPLEMENTARY PAIR PLUS INVERTER
Family 4000/14000/40000
JESD-30 Code R-PDIP-T14
JESD-609 Code e4
Load Capacitance (CL) 50 pF
Logic IC Type INVERTER
Number of Functions 3
Number of Inputs 1
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 110 ns
Qualification Status Not Qualified
Seated Height-Max 5.1 mm
Supply Voltage-Max (Vsup) 20 V
Supply Voltage-Min (Vsup) 3 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
