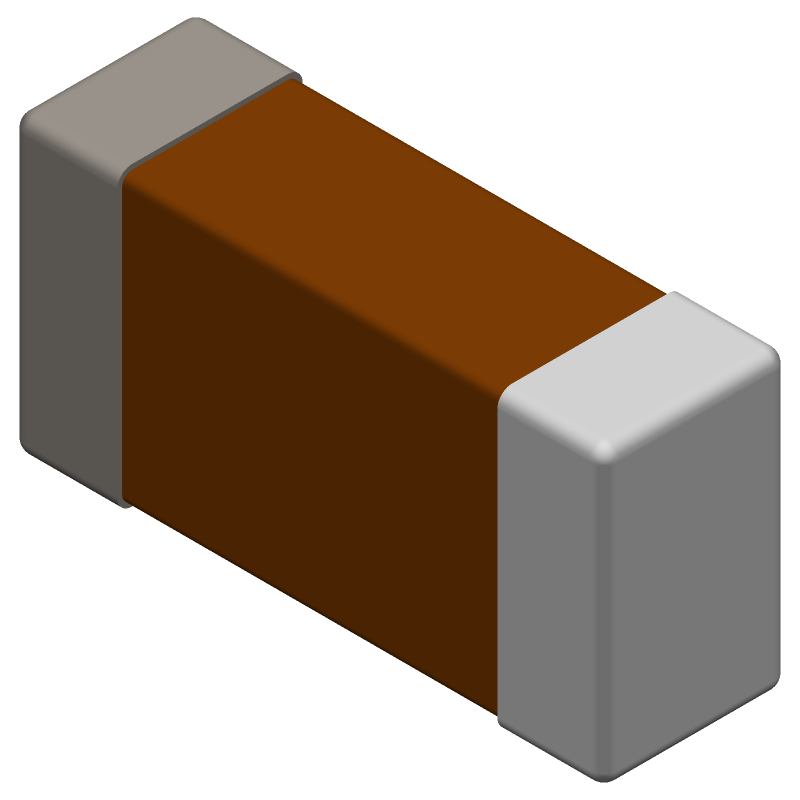

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for GRM31CR70J226KE19L by Murata Manufacturing Co Ltd
Overview of GRM31CR70J226KE19L by Murata Manufacturing Co Ltd
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (6 crosses)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 crosses)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Price & Stock for GRM31CR70J226KE19L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
64AJ4427
|
Newark | Cap, 22Uf, 6.3V, Mlcc, 1206 Rohs Compliant: Yes |Murata GRM31CR70J226KE19L Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 650 |
|
$0.3920 / $0.7490 | Buy Now |
|
DISTI #
13T1215
|
Newark | Multilayer Ceramic Capacitor, Grm Series, 22 - F, - 10%, X7R, 6.3 V, 1206 [3216 Metric] Rohs Compliant: Yes |Murata GRM31CR70J226KE19L Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2520 / $0.2740 | Buy Now |
|
DISTI #
490-6515-1-ND
|
DigiKey | CAP CER 22UF 6.3V X7R 1206 Min Qty: 1 Lead time: 19 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
160299 In Stock |
|
$0.2189 / $0.5900 | Buy Now |
|
DISTI #
GRM31CR70J226KE19L
|
Avnet Americas | Multilayer Ceramic Capacitor, 22 uF, 6.3 V, ± 10%, X7R, 1206 [3216 Metric] - Tape and Reel (Alt: GRM31CR70J226KE19L) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
$0.3117 | Buy Now |
|
DISTI #
81-GRM31CR70J226KE9L
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 22 uF 6.3 VDC 10% 1206 X7R RoHS: Compliant | 41893 |
|
$0.2190 / $0.5500 | Buy Now |
|
|
Future Electronics | 1206 6.3 V 22 uF ±10% Tolerance X7R Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Container: Reel | 34000Reel |
|
$0.2150 / $0.2350 | Buy Now |
|
|
Future Electronics | 1206 6.3 V 22 uF ±10% Tolerance X7R Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Container: Reel | 14000Reel |
|
$0.2250 / $0.2400 | Buy Now |
|
|
Bristol Electronics | Min Qty: 13 | 7115 |
|
$0.1072 / $0.4125 | Buy Now |
|
|
Quest Components | CAPACITOR, CERAMIC, MULTILAYER, 6.3 V, X7R, 22 uF, SURFACE MOUNT, 1206 | 5692 |
|
$0.1375 / $0.5500 | Buy Now |
|
|
Quest Components | CAPACITOR, CERAMIC, MULTILAYER, 6.3 V, X7R, 22 uF, SURFACE MOUNT, 1206 | 1600 |
|
$0.3150 / $0.7875 | Buy Now |
Part Details for GRM31CR70J226KE19L
GRM31CR70J226KE19L CAD Models
GRM31CR70J226KE19L Part Data Attributes:
|
|
GRM31CR70J226KE19L
Murata Manufacturing Co Ltd
Buy Now
Datasheet
|
Compare Parts:
GRM31CR70J226KE19L
Murata Manufacturing Co Ltd
Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MURATA MANUFACTURING CO LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Murata Electronics | |
| Capacitance | 22 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.6 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, EMBOSSED, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 6.3 V | |
| Size Code | 1206 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.6 mm |
Alternate Parts for GRM31CR70J226KE19L
This table gives cross-reference parts and alternative options found for GRM31CR70J226KE19L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of GRM31CR70J226KE19L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Description | Manufacturer | Compare |
|---|---|---|---|
| MCASJ31LAB7226KTNA01 | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP | TAIYO YUDEN | GRM31CR70J226KE19L vs MCASJ31LAB7226KTNA01 |
| MMASJ31LAB7226KTNA18 | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP | TAIYO YUDEN | GRM31CR70J226KE19L vs MMASJ31LAB7226KTNA18 |
| MCASJ31LAB7226KTNA1J | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP | TAIYO YUDEN | GRM31CR70J226KE19L vs MCASJ31LAB7226KTNA1J |
| MBASJ31LAB7226KTNA18 | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP | TAIYO YUDEN | GRM31CR70J226KE19L vs MBASJ31LAB7226KTNA18 |
| MMASJ31LAB7226KTNA01 | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP | TAIYO YUDEN | GRM31CR70J226KE19L vs MMASJ31LAB7226KTNA01 |
| MBASJ31LAB7226KTNA01 | Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X7R, 15% TC, 22uF, Surface Mount, 1206, CHIP | TAIYO YUDEN | GRM31CR70J226KE19L vs MBASJ31LAB7226KTNA01 |
