Flash PLD, 10ns, 980-Cell, CMOS, PQFP144, 22 X 22 MM, 0.50 MM PITCH, LEAD FREE, TQFP-144

Part Details for EPM1270T144C5N by Intel Corporation

Overview of EPM1270T144C5N by Intel Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Industrial Automation Computing and Data Storage Telecommunications Electronic Manufacturing

Price & Stock for EPM1270T144C5N

Part # Distributor Description Stock Price Buy
DISTI # 544-1333-ND
DigiKey IC CPLD 980MC 6.2NS 144TQFP Min Qty: 1 Lead time: 26 Weeks Container: Tray 202
In Stock
  • 1 $51.0600
  • 25 $49.0404
  • 100 $45.9375
$45.9375 / $51.0600 Buy Now
DISTI # 70818285
Verical CPLD MAX® II Family 980 Macro Cells 201.1MHz 0.18um Technology 2.5V/3.3V 144-Pin TQFP Tray Min Qty: 1 Package Multiple: 1 Date Code: 2319 Americas - 1830
  • 1 $51.0600
$51.0600 Buy Now
DISTI # EPM1270T144C5N
TME IC: CPLD, SMD, TQFP144, Number of macrocells: 1270, I/O: 116, 5ns Min Qty: 1 0
  • 1 $125.0000
  • 3 $115.0000
  • 10 $97.7000
  • 60 $82.5000
$82.5000 / $125.0000 RFQ
Chip 1 Exchange INSTOCK 160
RFQ
Chip 1 Exchange INSTOCK 2912
RFQ
DISTI # 63S6040
Bürklin Elektronik CPLD MAX® II Family 201.1MHz 0.18um 2.5V/3.3V Min Qty: 1 1133
  • 1 $42.7179
  • 10 $40.4673
$40.4673 / $42.7179 Buy Now

Part Details for EPM1270T144C5N

EPM1270T144C5N CAD Models

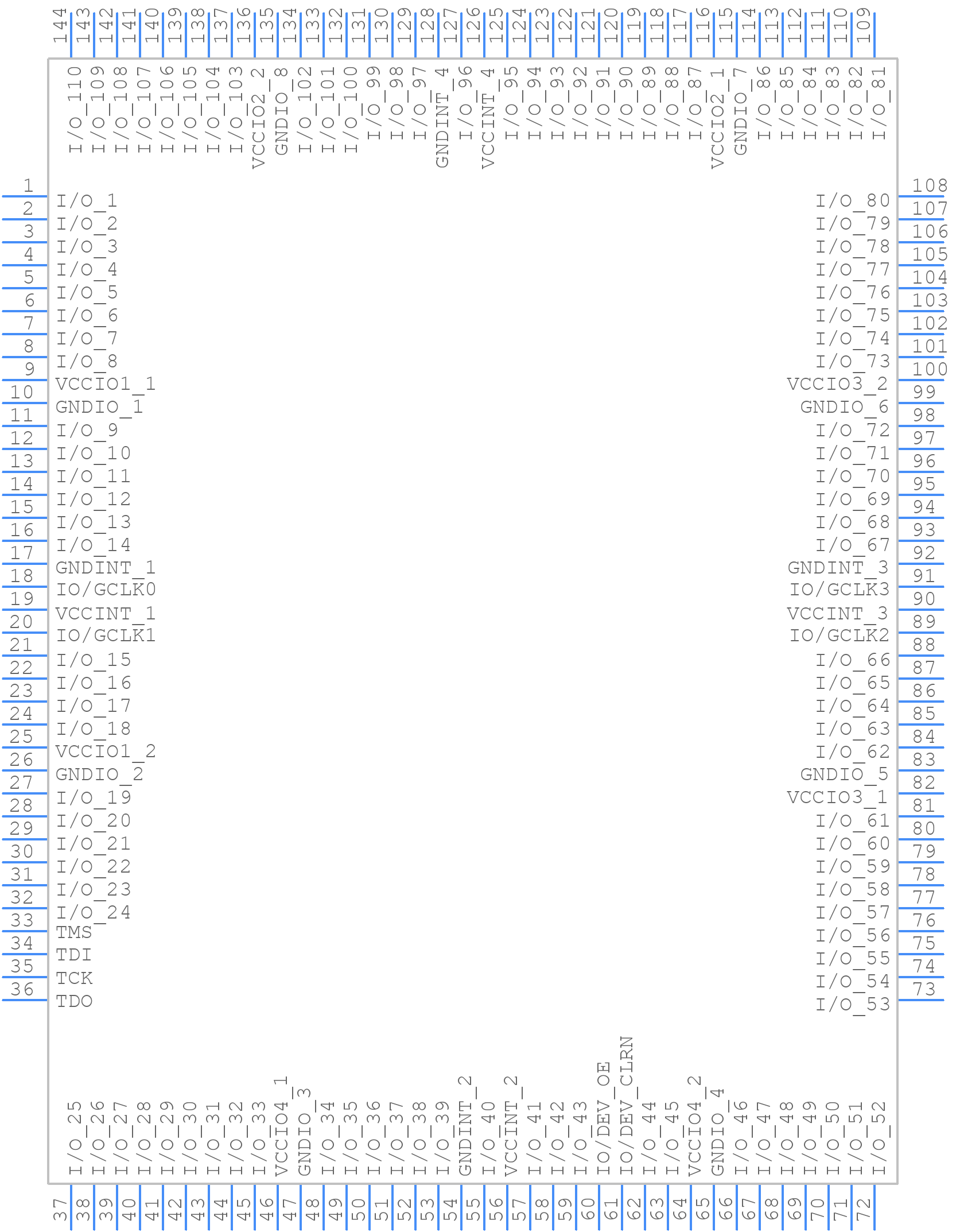

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EPM1270T144C5N Part Data Attributes:

Parametric Data
EPM1270T144C5N Intel Corporation
Buy Now Datasheet
Compare Parts:
EPM1270T144C5N Intel Corporation Flash PLD, 10ns, 980-Cell, CMOS, PQFP144, 22 X 22 MM, 0.50 MM PITCH, LEAD FREE, TQFP-144
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer INTEL CORP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Intel
Additional Feature IT CAN ALSO OPERATE AT 3.3V
In-System Programmable YES
JESD-30 Code S-PQFP-G144
JESD-609 Code e3
JTAG BST YES
Length 20 mm
Moisture Sensitivity Level 3
Number of Dedicated Inputs
Number of I/O Lines 116
Number of Inputs 116
Number of Macro Cells 980
Number of Outputs 116
Number of Terminals 144
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 0 DEDICATED INPUTS, 116 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Programmable Logic Type FLASH PLD
Propagation Delay 10 ns
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Supply Voltage-Max 2.625 V
Supply Voltage-Min 2.375 V
Supply Voltage-Nom 2.5 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 20 mm
