EHT-113-01-S-D-SM-K-TR by: Samtec Inc

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle,

Part Details for EHT-113-01-S-D-SM-K-TR by Samtec Inc

Overview of EHT-113-01-S-D-SM-K-TR by Samtec Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Energy and Power Systems Renewable Energy

Available Datasheets

Part # Manufacturer Description Datasheet
DBL5W5P543A40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 5W5 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Without Accessory on PCB.
DEL2V2P543H40LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 2V2 Pin Right Angle Solder 40A, Europe Standard, 500 Cycles, Front: Threaded Insert M3, Back: Harpoons for 2.4mm PCB Thickness.
DC8W8P500H30LF Amphenol Communications Solutions D-Sub Power Board Mount Connectors, Input Output Connectors, Full Power 8W8 Pin Right Angle Solder 30A, Europe Standard, 200 Cycles, Front: Without Accessory, Back: Harpoons for 2.4mm PCB Thickness.

Price & Stock for EHT-113-01-S-D-SM-K-TR

Part # Distributor Description Stock Price Buy
DISTI # 91P6069
Newark Connector, Header, 26 Position, 2Row, 2Mm, Connector Systems:Board-To-Board, Wire-To-Board, Pitch Spacing:2Mm, No. Of Rows:2Rows, No. Of Contacts:26Contacts, Contact Termination Type:Surface Mount, Product Range:Eht Series Rohs Compliant: Yes |Samtec EHT-113-01-S-D-SM-K-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $9.2800
  • 250 $9.0300
  • 500 $8.6500
$8.6500 / $9.2800 Buy Now
DISTI # EHT-113-01-S-D-SM-K-TR-ND
DigiKey CONN HEADER SMD 26POS 2MM Min Qty: 150 Lead time: 6 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 150 $8.4049
$8.4049 Buy Now
DISTI # 200-EHT11301SDSMKTR
Mouser Electronics Headers & Wire Housings 2.00 mm Shrouded IDC Ejector Header RoHS: Compliant 0
  • 150 $8.9200
  • 450 $7.8700
  • 900 $5.7900
$5.7900 / $8.9200 Order Now
Onlinecomponents.com 2.00 mm Shrouded IDC Ejector Header RoHS: Compliant 0
  • 25 $14.0600
  • 50 $13.4300
  • 150 $9.1600
  • 300 $8.3000
  • 600 $6.0900
  • 1,050 $4.0000
  • 2,550 $3.9400
$3.9400 / $14.0600 Buy Now
NexGen Digital   2
RFQ
DISTI # 000000000001291764
Sager Headers & Wire Housings 2.00 mm Shrouded IDC Ejector Header Min Qty: 1 0
  • 1 $13.5500
  • 10 $12.8300
  • 25 $12.3500
  • 50 $12.0500
  • 100 $8.9200
  • 250 $7.8700
$7.8700 / $13.5500 Buy Now
Master Electronics 2.00 mm Shrouded IDC Ejector Header RoHS: Compliant 0
  • 25 $14.0600
  • 50 $13.4300
  • 150 $9.1600
  • 300 $8.3000
  • 600 $6.0900
  • 1,050 $4.0000
  • 2,550 $3.9400
$3.9400 / $14.0600 Buy Now
DISTI # 5cd8df7ccd7c1c4c382dab53
Samtec 2.00 mm Shrouded IDC Ejector Header RoHS: Compliant Min Qty: 1 Lead time: 1 Weeks, 6 Days Container: Tape & Reel 0
  • 1 $12.2000
  • 10 $11.5500
  • 25 $11.1100
  • 50 $10.2400
  • 100 $8.6500
  • 250 $7.4000
  • 500 $5.3800
  • 1,000 $3.7800
$3.7800 / $12.2000 Buy Now

Part Details for EHT-113-01-S-D-SM-K-TR

EHT-113-01-S-D-SM-K-TR CAD Models

  • Part Symbol

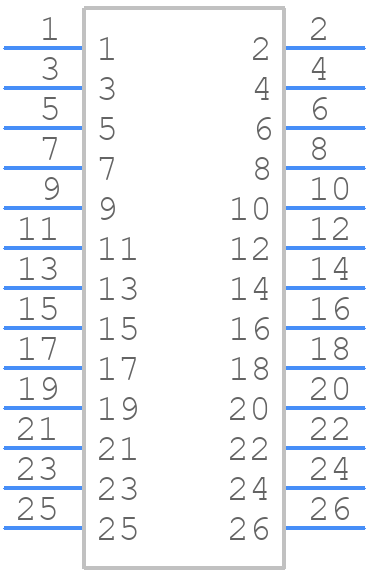

    Part Symbol

  • Footprint

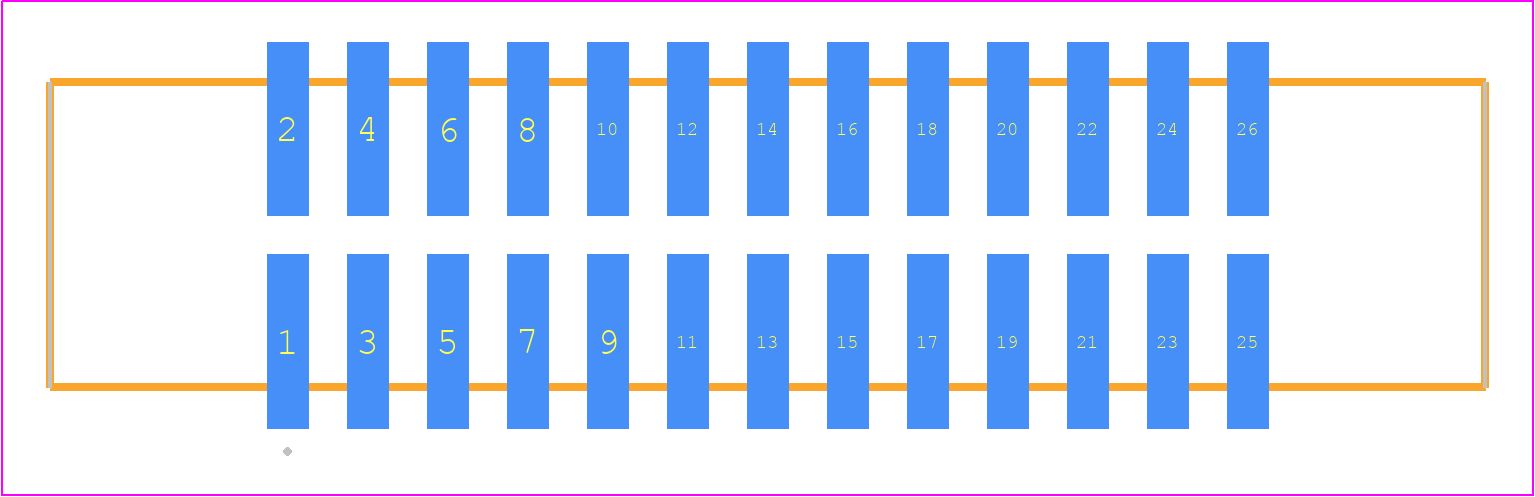

    footprint

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

EHT-113-01-S-D-SM-K-TR Part Data Attributes

Parametric Data
EHT-113-01-S-D-SM-K-TR Samtec Inc
Buy Now Datasheet
Compare Parts:
EHT-113-01-S-D-SM-K-TR Samtec Inc Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Latch & Eject, Black Insulator, Receptacle,
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer SAMTEC INC
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer SAMTEC
Additional Feature POLYFILM PIK&PLACE PAD,T&R PKG
Body Breadth 0.3 inch
Body Depth 0.375 inch
Body Length 1.567 inch
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Finish Mating GOLD (30) OVER NICKEL (50)
Contact Finish Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Filter Feature NO
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
Mating Contact Pitch 0.079 inch
Mating Contact Row Spacing 0.079 inch
Mixed Contacts NO
Mounting Option 1 LATCH & EJECT
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 5.334 mm
Plating Thickness 30u inch
Polarization Key POLARIZED HOUSING
Reference Standard UL
Terminal Pitch 2.0066 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 26
