EEUED2C330 by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 160V, 20% +Tol, 20% -Tol, 33uF, Through Hole Mount, 20 MMH RADIAL LEADED, ROHS COMPLIANT

Part Details for EEUED2C330 by Panasonic Electronic Components

Results Overview of EEUED2C330 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

EEUED2C330 Information

EEUED2C330 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for EEUED2C330

Part # Distributor Description Stock Price Buy
DISTI # 62W7568
Newark Aluminium Electrolytic Capacitor, Ed Series, 33 - F, - 20%, 160 V, 10 Mm, Radial Leaded Rohs Complia... nt: Yes |Panasonic EEUED2C330 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 3686
  • 1 $0.5680
  • 10 $0.3850
  • 25 $0.3580
  • 50 $0.3340
  • 100 $0.3090
  • 500 $0.2890
  • 1,000 $0.2520
$0.2520 / $0.5680 Buy Now
DISTI # EEU-ED2C330
Avnet Americas Aluminum Electrolytic Capacitor, 33 uF, 160 V, ? 20%, 8000 hours @ 105?C, Radial Leaded - Bulk (Alt:... EEU-ED2C330) more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks, 0 Days Container: Bulk 90
  • 1 $0.2005
  • 10 $0.1988
  • 30 $0.1960
  • 50 $0.1932
  • 100 $0.1903
$0.1903 / $0.2005 Buy Now
DISTI # 70068362
RS Capacitor, Aluminum Electrolytic, Al Electrolytic Cap, 33uF 160V 105Deg C | Panasonic Electronic Com... ponents EEUED2C330 more RoHS: Compliant Min Qty: 5 Package Multiple: 1 Container: Bulk 0
  • 5 $0.4790
$0.4790 RFQ
DISTI # EEUED2C330
TME Capacitor: electrolytic, THT, 33uF, 160VDC, Ø10x20mm, Pitch: 5mm Min Qty: 2000 0
  • 2,000 $0.3310
$0.3310 RFQ
DISTI # EEUED2C330
Avnet Abacus Aluminum Electrolytic Capacitor 33 uF 160 V 20 8000 hours 105C Radial Leaded (Alt: EEUED2C330) RoHS: Compliant Min Qty: 2000 Package Multiple: 200 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for EEUED2C330

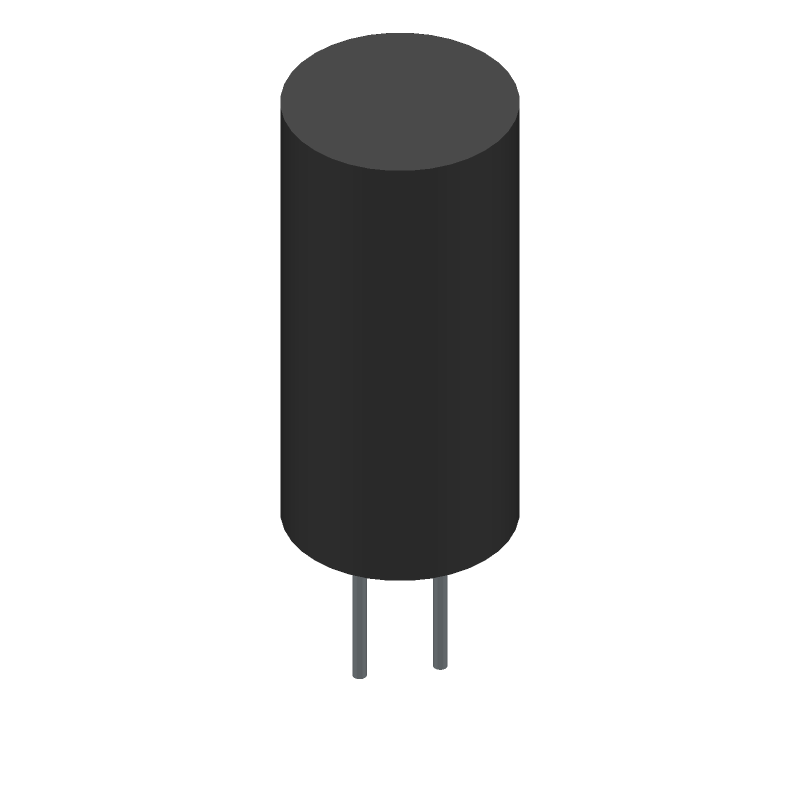

EEUED2C330 CAD Models
