ECOS2WP331DA by: Panasonic Electronic Components

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 330uF, THROUGH HOLE MOUNT, ROHS COMPLIANT

Part Details for ECOS2WP331DA by Panasonic Electronic Components

Results Overview of ECOS2WP331DA by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ECOS2WP331DA Information

ECOS2WP331DA by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ECOS2WP331DA

Part # Distributor Description Stock Price Buy
DISTI # 70067953
RS Capacitor, Aluminum Electrolytic, Cap 330uF, Vol-Rtg 450V, Snap-In, Ts-Ha, 2 Pin Min Qty: 100 Package Multiple: 1 Container: Bulk 0
  • 100 $14.4100
  • 500 $13.6900
  • 1,000 $12.9700
  • 2,000 $12.2500
$12.2500 / $14.4100 RFQ
DISTI # ECOS2WP331DA
Avnet Abacus Electrolytic Capacitor 330uF 450V 20 SnapIn (Alt: ECOS2WP331DA) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 143 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for ECOS2WP331DA

ECOS2WP331DA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

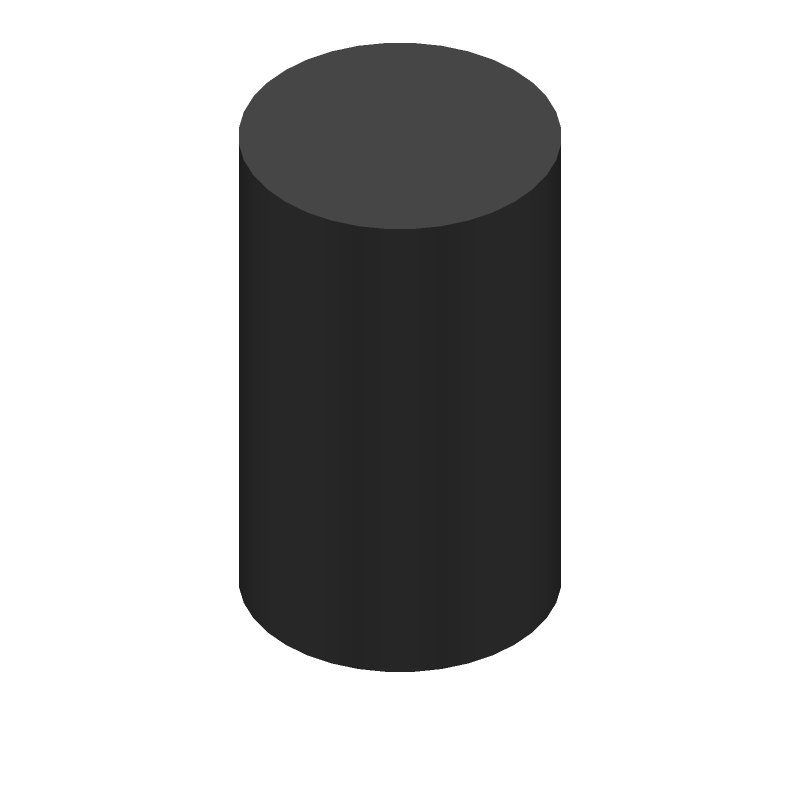

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ECOS2WP331DA Part Data Attributes

Parametric Data
ECOS2WP331DA Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
ECOS2WP331DA Panasonic Electronic Components CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 330uF, THROUGH HOLE MOUNT, ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer PANASONIC CORP
Package Description ROHS COMPLIANT
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8532.22.00.40
Samacsys Manufacturer Panasonic
Capacitance 330 µF
Capacitor Type ALUMINUM ELECTROLYTIC CAPACITOR
Diameter 30 mm
Dielectric Material ALUMINUM (WET)
ESR 553 mΩ
JESD-609 Code e3
Leakage Current 1.15607 mA
Length 50 mm
Mounting Feature THROUGH HOLE MOUNT
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Package Shape CYLINDRICAL PACKAGE
Package Style Snap-in
Polarity POLARIZED
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 450 V
Ripple Current 2010 mA
Surface Mount NO
Tan Delta 0.15
Terminal Finish Tin (Sn)
Terminal Pitch 10 mm
Terminal Shape SNAP-IN

Alternate Parts for ECOS2WP331DA

This table gives cross-reference parts and alternative options found for ECOS2WP331DA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECOS2WP331DA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ELH337M450AS6AA KEMET Corporation $5.3658 Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount ECOS2WP331DA vs ELH337M450AS6AA
LH450M0330BP443050 YAGEO Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 330uF, ECOS2WP331DA vs LH450M0330BP443050
B43501B5337M002 TDK Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, ROHS COMPLIANT ECOS2WP331DA vs B43501B5337M002
LH450M0330BP543050 YAGEO Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 330uF, ECOS2WP331DA vs LH450M0330BP543050
B43501B5337M082 TDK Electronics Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 330uF, THROUGH HOLE MOUNT, ROHS COMPLIANT ECOS2WP331DA vs B43501B5337M082
B43501B5337M080 TDK Electronics Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 330uF, THROUGH HOLE MOUNT, ROHS COMPLIANT ECOS2WP331DA vs B43501B5337M080
B43540A5337M000 TDK Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS AND REACH COMPLIANT ECOS2WP331DA vs B43540A5337M000
B43501B5337M067 TDK Electronics Check for Price CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 330uF, THROUGH HOLE MOUNT, ROHS COMPLIANT ECOS2WP331DA vs B43501B5337M067
B43540A5337M087 TDK Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 450V, 20% +Tol, 20% -Tol, 330uF, Through Hole Mount, RADIAL LEADED, ROHS AND REACH COMPLIANT ECOS2WP331DA vs B43540A5337M087
SLF337M450S1A5S50K Teapo Electronic Corporation Check for Price Aluminum Electrolytic Capacitor, Polarized, Aluminum, 450V, 20% +Tol, 20% -Tol, 330uF, ECOS2WP331DA vs SLF337M450S1A5S50K
