ECEA1VKS220 by: Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

Part Details for ECEA1VKS220 by Panasonic Electronic Components

Results Overview of ECEA1VKS220 by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ECEA1VKS220 Information

ECEA1VKS220 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for ECEA1VKS220

Part # Distributor Description Stock Price Buy
DISTI # 62W6386
Newark Cap, Alu Elec, 22Uf, 35V, Radial, Capacitance:22Μf, Voltage(Dc):35V, Capacitance Tolerance:± 20%,... Capacitor Terminals:Pc Pin, Lifetime @ Temperature:1000 Hours @ 85°C, Polarity:Polar, Capacitor Case/Package:Radial Leaded, Esr:- Rohs Compliant: Yes |Panasonic ECEA1VKS220 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 3120
  • 1 $0.2550
  • 10 $0.1730
  • 25 $0.1520
  • 50 $0.1300
  • 100 $0.1090
  • 500 $0.0920
  • 1,000 $0.0710
$0.0710 / $0.2550 Buy Now
DISTI # ECE-A1VKS220
Avnet Americas Aluminum Electrolytic Capacitor, 22 uF, 35 V, ? 20%, 1000 hours @ 85?C, Radial Leaded - Bulk (Alt: E... CE-A1VKS220) more RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 21 Weeks, 0 Days Container: Bulk 0
  • 200 $0.0469
  • 400 $0.0461
  • 800 $0.0454
  • 1,200 $0.0446
  • 1,600 $0.0437
$0.0437 / $0.0469 Buy Now
DISTI # 70067894
RS Capacitor, Aluminum Electrolytic, Cap 22uF, Vol-Rtg 35V, Radial, Ks, Height 5mm | Panasonic Electron... ic Components ECEA1VKS220 more RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Container: Bulk 0
  • 1,000 $0.0890
$0.0890 RFQ
Quest Components ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 35V, 20% +TOL, 20% -TOL, 22UF, THROUGH H... OLE MOUNT more 501
  • 1 $0.1592
  • 32 $0.1194
  • 85 $0.0995
$0.0995 / $0.1592 Buy Now
Quest Components ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 35V, 20% +TOL, 20% -TOL, 22UF, THROUGH H... OLE MOUNT (Also Known As: ECE-A1VKS220) more 501
  • 1 $0.1592
  • 32 $0.1194
  • 85 $0.0995
$0.0995 / $0.1592 Buy Now
DISTI # ECEA1VKS220
TME Capacitor: electrolytic, THT, 22uF, 35VDC, Ø6.3x5mm, Pitch: 2.5mm Min Qty: 1 0
  • 1 $0.3060
  • 5 $0.2080
  • 10 $0.1770
  • 50 $0.1250
  • 200 $0.0970
  • 600 $0.0940
$0.0940 / $0.3060 RFQ
DISTI # ECEA1VKS220
Avnet Abacus Aluminum Electrolytic Capacitor 22 uF 35 V 20 1000 hours 85C Radial Leaded (Alt: ECEA1VKS220) RoHS: Compliant Min Qty: 4000 Package Multiple: 200 Lead time: 17 Weeks, 0 Days Abacus - 0
Buy Now
Vyrian Capacitors 4267
RFQ

Part Details for ECEA1VKS220

ECEA1VKS220 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

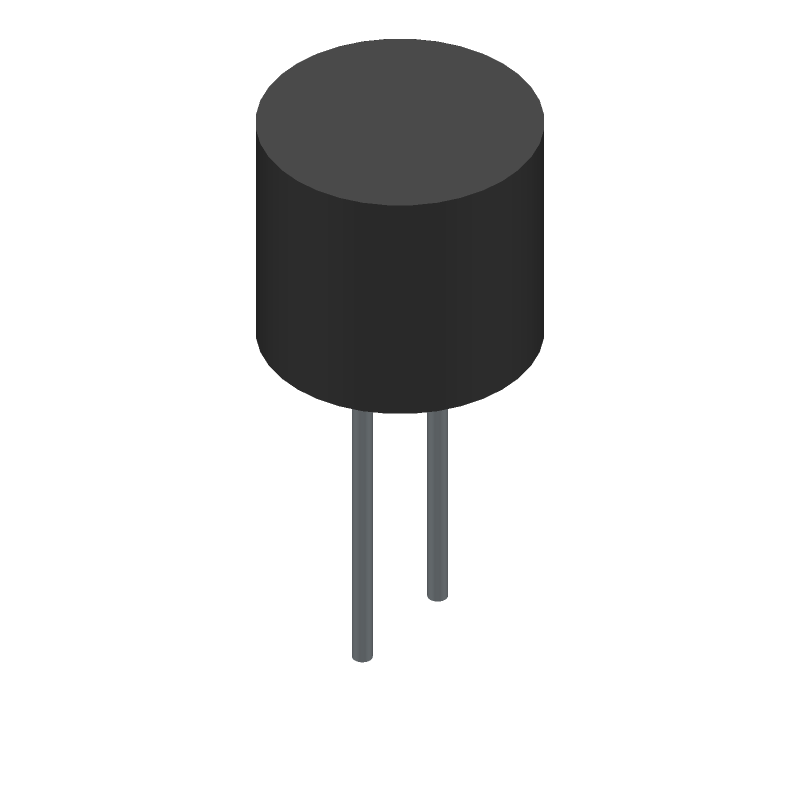

    3D Model
