Microcontrollers and Processors / Microcontrollers / DSPIC33FJ64GP202-I/SP
Datasheets
DSPIC33FJ64GP202-I/SP by: Microchip Technology Inc

16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, DIP-28

Part Details for DSPIC33FJ64GP202-I/SP by Microchip Technology Inc

Results Overview of DSPIC33FJ64GP202-I/SP by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DSPIC33FJ64GP202-I/SP Information

DSPIC33FJ64GP202-I/SP by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for DSPIC33FJ64GP202-I/SP

Part # Distributor Description Stock Price Buy
DISTI # 39M8214
Newark Digital Signal Controller-Dsc, 16 Bit, 64Kb, 40Mhz, 3.6V Dip-28, Product Range:Dspic33F Series, Co... re Frequency:40Mhz, Flash Memory Size:64Kb, No. Of I/O S:21I/O S, Embedded Interface Type:Ecan, I2C, Spi, Uart, Dsc Case Style:Dip Rohs Compliant: Yes |Microchip DSPIC33FJ64GP202-I/SP more RoHS: Compliant Min Qty: 135 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $5.4900
$5.4900 Buy Now
DISTI # DSPIC33FJ64GP202-I/SP-ND
DigiKey IC MCU 16BIT 64KB FLASH 28SPDIP Min Qty: 135 Lead time: 7 Weeks Container: Tube Temporarily Out of Stock
  • 135 $5.2800
$5.2800 Buy Now
DISTI # DSPIC33FJ64GP202-I/SP
Avnet Americas MCU 16-bit dSPIC33 dsPIC RISC 64KB Flash 3.3V 28-Pin SPDIP Tube - Rail/Tube (Alt: DSPIC33FJ64GP202-I... /SP) more RoHS: Compliant Min Qty: 120 Package Multiple: 15 Lead time: 7 Weeks, 0 Days Container: Tube 0
  • 120 $5.6125
  • 150 $5.5221
  • 270 $5.4325
  • 600 $5.3427
  • 1,200 $5.2533
$5.2533 / $5.6125 Buy Now
DISTI # 579-DSPIC364GP202ISP
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 16B DSC 28LD64KB DMA 40MIPS RoHS: Compliant 0
  • 135 $5.2800
$5.2800 Order Now
DISTI # DSPIC33FJ64GP202-I/SP
Microchip Technology Inc 16 BIT MCU/DSP 28LD 40MIPS 64KB FLASH, SPDIP, Projected EOL: 2034-04-08 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 5

Alternates Available
  • 1 $6.3600
  • 25 $5.8400
  • 100 $5.2800
  • 1,000 $4.8700
  • 5,000 $4.6300
$4.6300 / $6.3600 Buy Now
DISTI # 70046770
RS 16-Bit DSC, 28LD,64KB Flash, DMA,40 MIPS, nanoWatt | Microchip Technology Inc. DSPIC33FJ64GP202-I/SP RoHS: Not Compliant Min Qty: 180 Package Multiple: 1 Lead time: 32 Weeks, 0 Days Container: Bulk 0
  • 180 $7.2900
  • 900 $6.9300
  • 1,800 $6.5600
  • 3,600 $6.2000
$6.2000 / $7.2900 RFQ
Onlinecomponents.com Microcontroller - dsPIC 33F - 16-Bit - 40 MIPs - 21 I/O - 64KB (64K x 8) FLASH Program Memory - 8K x... 8 RAM - 3 to 3.6V Supply - 28-SPDIP. more RoHS: Compliant 0
  • 34 $8.0800
  • 68 $6.0600
  • 102 $5.6600
  • 135 $5.5400
$5.5400 / $8.0800 Buy Now
Bristol Electronics   Min Qty: 1 45
  • 1 $8.9600
  • 4 $5.8240
  • 10 $4.4800
  • 29 $4.1816
$4.1816 / $8.9600 Buy Now
Quest Components   36
  • 1 $12.0000
  • 4 $6.0000
  • 34 $5.6000
$5.6000 / $12.0000 Buy Now
DISTI # 33FJ64GP202-I/SP
TME IC: dsPIC microcontroller, 64kB, 8kBSRAM, DIP28, 3÷3.6VDC, DSPIC Min Qty: 1 0
  • 1 $6.7000
  • 5 $6.4800
  • 30 $6.0500
  • 90 $5.6200
$5.6200 / $6.7000 RFQ
NAC 16-bit DSC, 64KB Flash,DMA,40 MIPS,nanoWatt - Package: 28 SPDIP .300in TUBE RoHS: Compliant Min Qty: 60 Package Multiple: 15 Container: Tube 0
  • 1 $6.6000
  • 100 $5.9900
  • 500 $5.6100
  • 1,000 $5.4800
$5.4800 / $6.6000 Buy Now
DISTI # DSPIC33FJ64GP202-I/SP
Avnet Silica MCU 16bit dSPIC33 dsPIC RISC 64KB Flash 33V 28Pin SPDIP Tube (Alt: DSPIC33FJ64GP202-I/SP) RoHS: Compliant Min Qty: 15 Package Multiple: 15 Lead time: 8 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Microcontroller - dsPIC 33F - 16-Bit - 40 MIPs - 21 I/O - 64KB (64K x 8) FLASH Program Memory - 8K x... 8 RAM - 3 to 3.6V Supply - 28-SPDIP. more RoHS: Compliant 0
  • 34 $8.0800
  • 68 $6.0600
  • 102 $5.6600
  • 135 $5.5400
$5.5400 / $8.0800 Buy Now

Part Details for DSPIC33FJ64GP202-I/SP

DSPIC33FJ64GP202-I/SP CAD Models

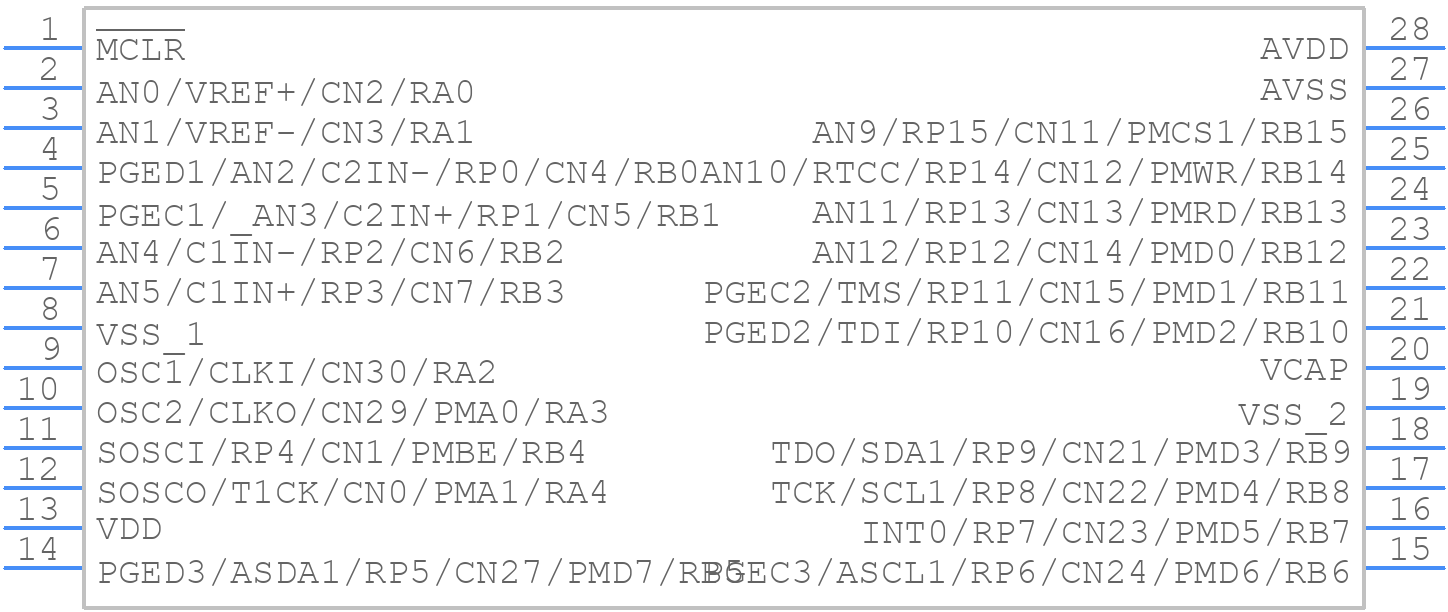

  • Part Symbol

    Part Symbol

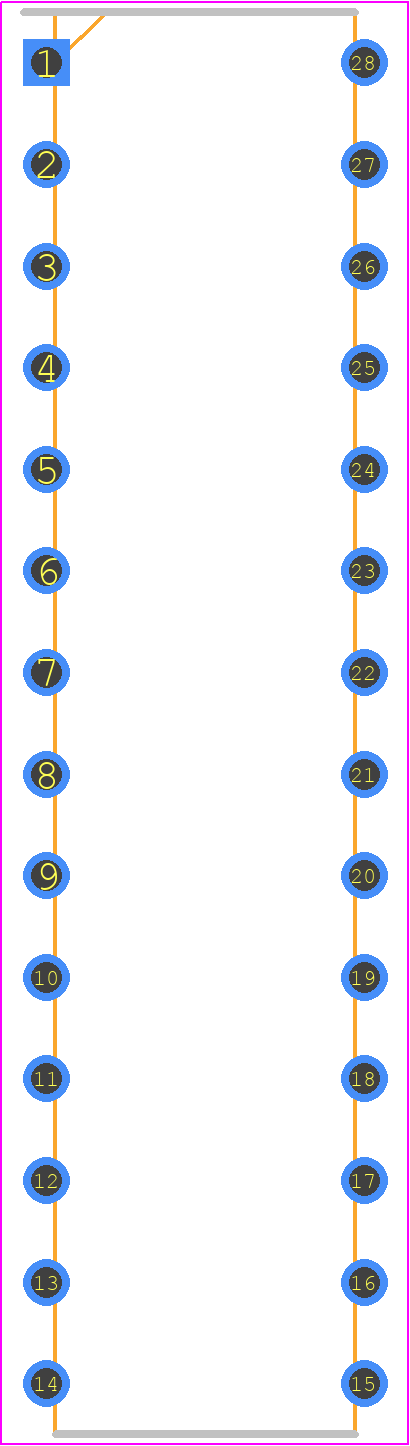

  • Footprint

    footprint

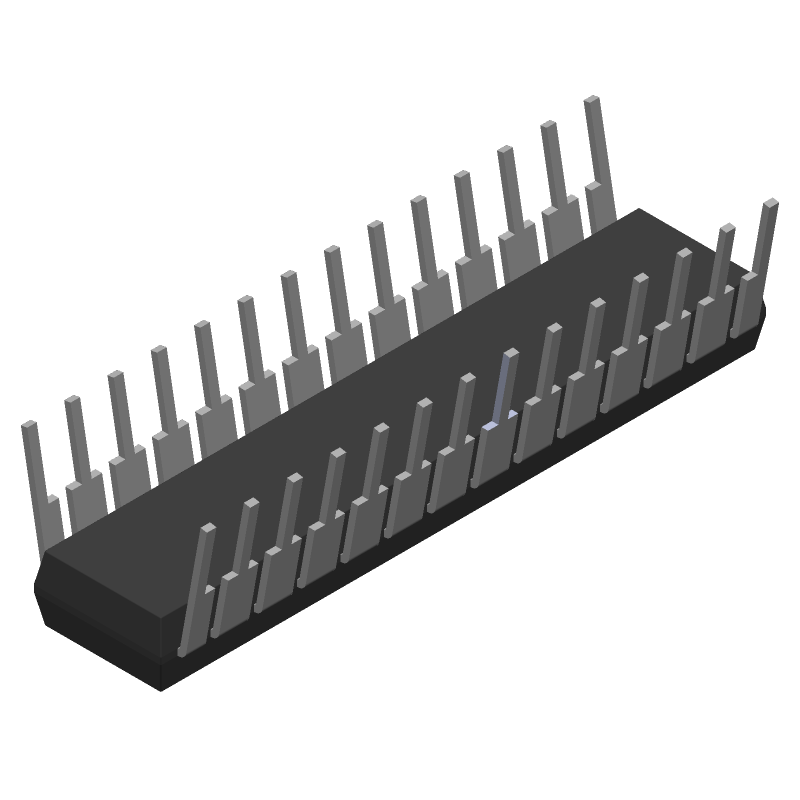

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DSPIC33FJ64GP202-I/SP Part Data Attributes

Parametric Data
DSPIC33FJ64GP202-I/SP Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
DSPIC33FJ64GP202-I/SP Microchip Technology Inc 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, DIP-28
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code DIP
Package Description DIP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 6 Weeks
Samacsys Manufacturer Microchip
Has ADC YES
Address Bus Width
Barrel Shifter YES
Bit Size 16
Boundary Scan YES
Clock Frequency-Max 40 MHz
DAC Channels YES
DMA Channels YES
External Data Bus Width
Format FLOATING POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code R-PDIP-T28
JESD-609 Code e3
Length 34.671 mm
Low Power Mode YES
Number of DMA Channels 8
Number of External Interrupts 3
Number of I/O Lines 21
Number of Serial I/Os 3
Number of Terminals 28
Number of Timers 7
On Chip Data RAM Width 8
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PWM Channels YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP28,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
RAM (words) 8192
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 5.08 mm
Speed 40 MHz
Supply Current-Max 76 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, CONTROLLER

Alternate Parts for DSPIC33FJ64GP202-I/SP

This table gives cross-reference parts and alternative options found for DSPIC33FJ64GP202-I/SP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DSPIC33FJ64GP202-I/SP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DSPIC33FJ64GP202T-E/SP Microchip Technology Inc Check for Price IC,DSP,16-BIT,CMOS,DIP,28PIN,PLASTIC DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64GP202T-E/SP
DSPIC33FJ64GP202T-I/SP Microchip Technology Inc Check for Price IC,DSP,16-BIT,CMOS,DIP,28PIN,PLASTIC DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64GP202T-I/SP
DSPIC33FJ64GP202-E/SP Microchip Technology Inc $6.3579 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDIP28, 0.300 INCH, LEAD FREE, PLASTIC, DIP-28 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64GP202-E/SP
Part Number Manufacturer Composite Price Description Compare
DSPIC33FJ128GP706ATI/MR Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC64, 9 X 9 MM, 0.90 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, QFN-64 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ128GP706ATI/MR
DSPIC33FJ64MC204-H/ML Microchip Technology Inc Check for Price 16-BIT, FLASH, 20 MHz, MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64MC204-H/ML
DSPIC33FJ32MC202T-H/ML Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ32MC202T-H/ML
DSPIC33FJ64GP206ATI/PT Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQFP64, 10 X 10 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, TQFP-64 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64GP206ATI/PT
DSPIC33FJ64GP204T-I/ML Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64GP204T-I/ML
DSPIC33FJ128GP802T-I/SO Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 0.300 INCH, LEAD FREE, PLASTIC, SOIC-28 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ128GP802T-I/SO
DSPIC33FJ32MC202-I/ML Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC28, 6 X 6 MM, PLASTIC, QFN-28 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ32MC202-I/ML
DSPIC33FJ32MC202T-I/SO Microchip Technology Inc $1.0000 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ32MC202T-I/SO
DSPIC33FJ128GP706ATI/PT Microchip Technology Inc Check for Price 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQFP64, 10 X 10 MM, 1 MM HEIGHT, 0.50 MM PITCH, LEAD FREE, PLASTIC, TQFP-64 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ128GP706ATI/PT
DSPIC33FJ64GP202T-I/SO Microchip Technology Inc $6.0250 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 0.300 INCH, LEAD FREE, PLASTIC, SOIC-28 DSPIC33FJ64GP202-I/SP vs DSPIC33FJ64GP202T-I/SO
