DS4422N+ Information

DS4422N+ by Analog Devices Inc is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for DS4422N+

Part # Distributor Description Stock Price Buy
DISTI # 700-DS4422N
Mouser Electronics Digital to Analog Converters - DAC Two-/Four-Channel, I C, 7-Bit Sink/Source Current DAC RoHS: Compliant 429
  • 1 $3.8000
  • 10 $2.0900
  • 100 $1.6800
  • 200 $1.3900
  • 500 $1.3200
  • 1,000 $1.2600
  • 2,500 $1.2100
$1.2100 / $3.8000 Buy Now
DISTI # V36:1790_26384293
Arrow Electronics DAC 2-CH Current Steering 7-bit 14-Pin TDFN EP Tube RoHS: Compliant Min Qty: 400 Package Multiple: 100 Lead time: 10 Weeks Date Code: 2302 Americas - 600
  • 400 $1.0113
  • 500 $0.9829
  • 1,000 $0.9481
  • 2,500 $0.9283
  • 3,000 $0.9241
  • 5,000 $0.9198
  • 10,000 $0.9156
$0.9156 / $1.0113 Buy Now
Analog Devices Inc Two-/Four-Channel, I²C, 7-Bit Package Multiple: 1 1230
  • 1 $3.8100
  • 10 $2.4370
  • 25 $2.0824
  • 100 $1.7828
  • 500 $1.4836
  • 1,000 $1.3894
  • 2,500 $1.2889
  • 5,000 $1.2278
$1.2278 / $3.8100 Buy Now
DISTI # 84305777
Verical DAC 2-CH Current Steering 7-bit 14-Pin TDFN EP Tube RoHS: Compliant Min Qty: 400 Package Multiple: 100 Date Code: 2302 Americas - 600
  • 400 $1.0113
  • 500 $0.9829
  • 1,000 $0.9481
  • 2,500 $0.9283
  • 3,000 $0.9241
  • 5,000 $0.9198
  • 10,000 $0.9156
$0.9156 / $1.0113 Buy Now

Part Details for DS4422N+

DS4422N+ CAD Models

  • Part Symbol

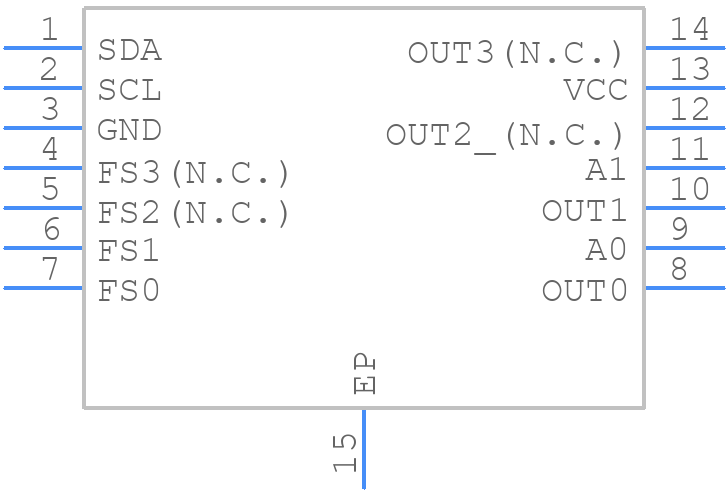

    Part Symbol

  • Footprint

    footprint

  • 3D Model

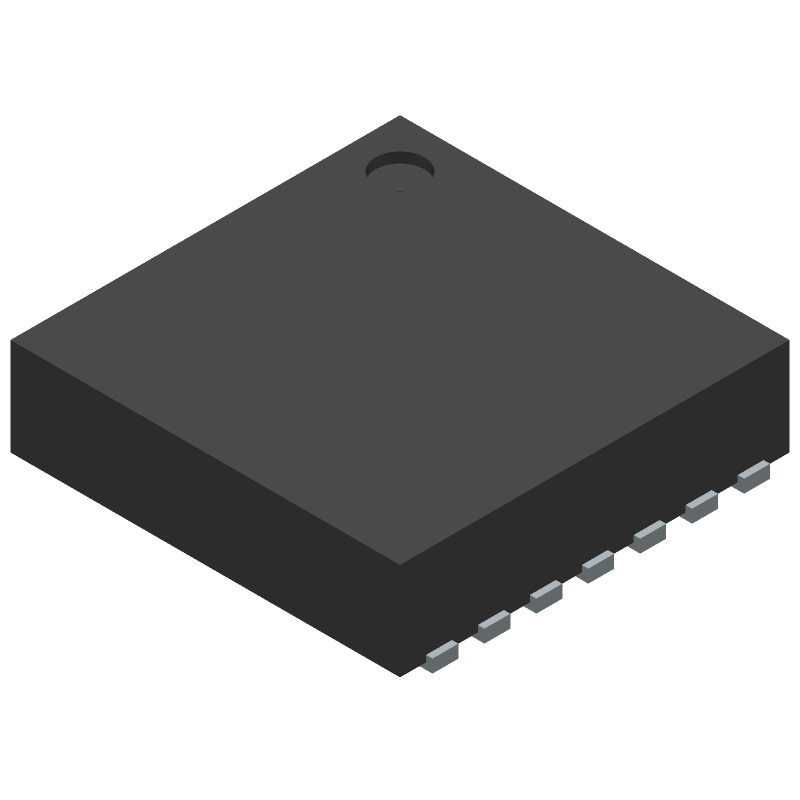

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DS4422N+ Part Data Attributes

Parametric Data
DS4422N+ Analog Devices Inc
Buy Now Datasheet
Compare Parts:
DS4422N+ Analog Devices Inc Two-/Four-Channel, I<sup>2</sup>C, 7-Bit Sink/Source Current DAC, 14-LFCSP-3X3X0.75, 14 Pins, -40 to 85C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 14-LFCSP-3X3X0.75
Package Description 3 X 3 MM, 0.80 MM HEIGHT, ROHS COMPLIANT, TDFN-14
Pin Count 14
Manufacturer Package Code 14-LFCSP-3X3X0.75
Reach Compliance Code compliant
Date Of Intro 2008-03-26
Samacsys Manufacturer Analog Devices
Analog Output Voltage-Max 4.75 V
Analog Output Voltage-Min
Converter Type D/A CONVERTER
Input Bit Code BINARY
Input Format SERIAL
JESD-30 Code S-XDSO-N14
JESD-609 Code e3
Length 3 mm
Linearity Error-Max (EL) 0.7812%
Moisture Sensitivity Level 1
Number of Bits 7
Number of Functions 1
Number of Terminals 14
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material UNSPECIFIED
Package Code HVSON
Package Equivalence Code SOLCC14,.12,16
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.8 mm
Supply Current-Max 0.25 mA
Supply Voltage-Nom 3.3 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.4 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Width 3 mm
