Power Circuits / Power Management Circuits / DS1816R-10+T&R
Datasheets
DS1816R-10+T&R by:
Analog Devices Inc
Analog Devices Inc
Dallas Semiconductor
Maxim Integrated Products
Not Found

3.3V EconoReset with Open Drain Output, 3-SOT_23-N/A, 3 Pins, -40 to 85C

Part Details for DS1816R-10+T&R by Analog Devices Inc

Results Overview of DS1816R-10+T&R by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DS1816R-10+T&R Information

DS1816R-10+T&R by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for DS1816R-10+T&R

Part # Distributor Description Stock Price Buy
DISTI # 700-DS1816R-10T&R
Mouser Electronics Supervisory Circuits 3.3V EconoReset with Open Drain Output RoHS: Compliant 9566
  • 1 $3.8300
  • 10 $2.8900
  • 25 $2.6600
  • 100 $2.4000
  • 250 $2.2200
  • 500 $2.0900
  • 1,000 $2.0100
  • 3,000 $1.9700
$1.9700 / $3.8300 Buy Now
Analog Devices Inc 3.3V EconoReset with Open Drai Min Qty: 1 Package Multiple: 1 1372
  • 1 $5.2500
  • 10 $3.4260
  • 25 $2.9520
  • 100 $2.4153
  • 250 $2.1519
  • 500 $1.9898
  • 1,000 $1.9000
  • 3,000 $1.9000
$1.9000 / $5.2500 Buy Now

Part Details for DS1816R-10+T&R

DS1816R-10+T&R CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

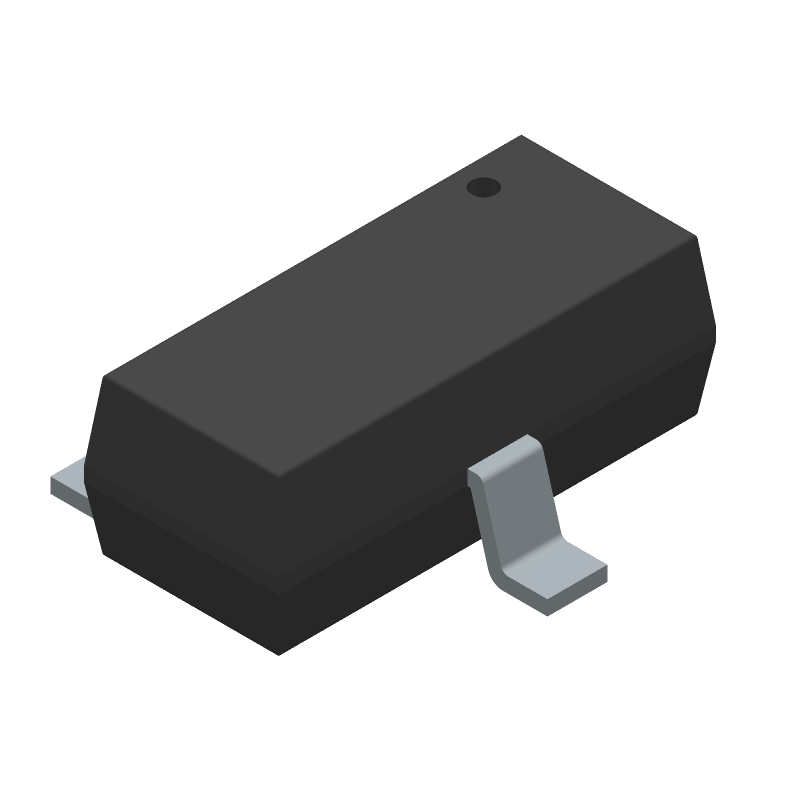

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DS1816R-10+T&R Part Data Attributes

Parametric Data
DS1816R-10+T&R Analog Devices Inc
Buy Now Datasheet
Compare Parts:
DS1816R-10+T&R Analog Devices Inc 3.3V EconoReset with Open Drain Output, 3-SOT_23-N/A, 3 Pins, -40 to 85C
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code 3-SOT_23-N/A
Package Description LEAD FREE, SOT-23, 3 PIN
Pin Count 3
Manufacturer Package Code 3-SOT_23-N/A
Reach Compliance Code compliant
Date Of Intro 1999-11-19
Samacsys Manufacturer Analog Devices
Additional Feature BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N
Adjustable Threshold NO
Analog IC - Other Type VOLTAGE SUPERVISOR/RESET IC
JESD-30 Code R-PDSO-G3
JESD-609 Code e3
Length 2.92 mm
Moisture Sensitivity Level 1
Number of Channels 1
Number of Functions 1
Number of Terminals 3
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TO-236
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.12 mm
Supply Current-Max (Isup) 0.035 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup)
Supply Voltage-Nom (Vsup) 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.95 mm
Terminal Position DUAL
Threshold Voltage-Nom +2.88V
Time@Peak Reflow Temperature-Max (s) 30
Width 1.3 mm

Alternate Parts for DS1816R-10+T&R

This table gives cross-reference parts and alternative options found for DS1816R-10+T&R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS1816R-10+T&R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DS1816R-10/T&R Maxim Integrated Products Check for Price Power Supply Support Circuit, Fixed, 1 Channel, +2.88VV, CMOS, PDSO3, SOT-23, 3 PIN DS1816R-10+T&R vs DS1816R-10/T&R
Part Number Manufacturer Composite Price Description Compare
DS1816R-10 Maxim Integrated Products Check for Price Power Supply Support Circuit, Fixed, 1 Channel, +2.88VV, CMOS, PDSO3, SOT-23, 3 PIN DS1816R-10+T&R vs DS1816R-10
DS1816R-10/T&R/C01 Maxim Integrated Products Check for Price Power Supply Support Circuit, Fixed, 1 Channel, PDSO3, SOT-23, 3 PIN DS1816R-10+T&R vs DS1816R-10/T&R/C01
DS1816R-10+T&R Maxim Integrated Products $2.0680 Power Supply Support Circuit, Fixed, 1 Channel, +2.88VV, CMOS, PDSO3, LEAD FREE, SOT-23, 3 PIN DS1816R-10+T&R vs DS1816R-10+T&R

DS1816R-10+T&R Related Parts

DS1816R-10+T&R Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the device away from high-current paths and ensure good airflow around the device.

  • Use a thermally conductive interface material (e.g., thermal tape or thermal grease) between the device and the heat sink. Ensure the heat sink is properly attached and has sufficient airflow.

  • Operating at the maximum Tj can reduce the device's lifespan. It's recommended to keep Tj below 125°C for optimal reliability and performance.

  • Use ESD-protective packaging, wrist straps, and mats during handling. Ensure the device is properly grounded during assembly, and use ESD-protected tools and equipment.

  • Store the device in its original packaging, away from direct sunlight, moisture, and extreme temperatures (–40°C to 125°C).
