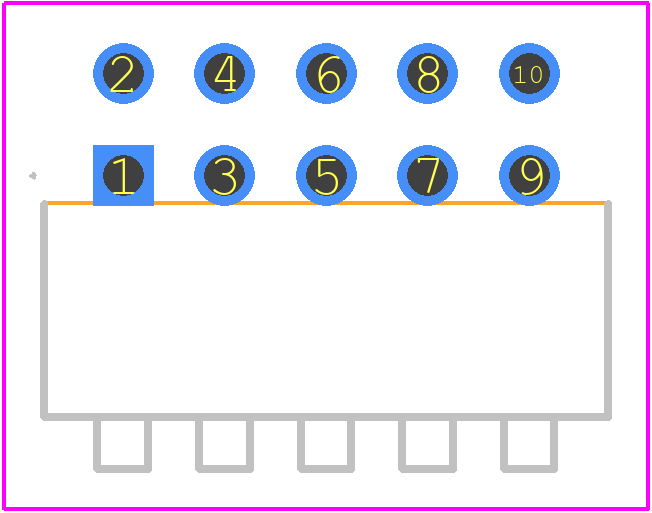

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS03-254-05BE by Same Sky
Results Overview of DS03-254-05BE by Same Sky
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
DS03-254-05BE Information
DS03-254-05BE by Same Sky is a DIP Switch.
DIP Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| JM38510/19005BEA | Renesas Electronics Corporation | Single 8-Channel MUX/DEMUX with Overvoltage Protection | |
| ISL9205BEVAL1Z | Renesas Electronics Corporation | Li-Ion Battery Charger Evaluation Board | |
| ISL705BEHVX | Renesas Electronics Corporation | Rad-Hard, 5.0V/3.3V µ-Processor Supervisory Circuits, DIE, / |
Price & Stock for DS03-254-05BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2223-DS03-254-05BE-ND
|
DigiKey | SWITCH SLIDE DIP SPST 0.025A 24V Min Qty: 1 Lead time: 15 Weeks Container: Tube |
663 In Stock |
|
$0.7309 / $1.2300 | Buy Now |
|
DISTI #
490-DS03-254-05BE
|
Mouser Electronics | DIP Switches / SIP Switches DIP Switch, SPST, 2.54 pitch, Raised actuator, right angle, 5 position, ... more | 353 |
|
$0.6990 / $1.2300 | Buy Now |
|
|
Onlinecomponents.com | 5 Position, Through Hole, 2.54 mm, Flat Slide Actuator, Convex Bottom, Long Pin, DIP Switch RoHS: Compliant | 0 |
|
$0.5790 / $0.8690 | Buy Now |
|
DISTI #
DS0325405BE
|
TME | Switch: DIP-SWITCH, Poles number: 5, OFF-ON, 0.025A/24VDC, Pos: 2 Min Qty: 759 | 0 |
|
$0.7500 | RFQ |
Part Details for DS03-254-05BE
DS03-254-05BE CAD Models
DS03-254-05BE Part Data Attributes
|
|
DS03-254-05BE
Same Sky
Buy Now
Datasheet
|
Compare Parts:
DS03-254-05BE
Same Sky
5 Pole, Flat Actuator, Convex Bottom, Long Pin, DIP Switch
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | CUI DEVICES | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.65 | |
| Samacsys Manufacturer | Same Sky | |
| Actuator Color | WHITE | |
| Actuator Length | 0.051 inch | |
| Actuator Material | POLYBUTYLENE TEREPHTHALATE | |
| Actuator Type | RAISED TYPE | |
| Body Breadth | 8.58 mm | |
| Body Color | BLACK | |
| Body Height | 9.9 mm | |
| Body Length or Diameter | 14.12 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD | |
| Contact Current(DC)-Max | 0.025 A | |
| Contact (DC) Max Rating R Load | 0.025A@24VDC | |
| Contact Resistance | 0.1 mΩ | |
| Contact Voltage(DC)-Max | 24 V | |
| Dielectric Withstand Volts | 500VAC V | |
| Electrical Life | 2000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD | |
| Housing Material | POLYBUTYLENE TEREPHTHALATE | |
| Insulation Resistance | 100000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Number of Switch Sections | 5 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PCB Hole Count | 10 | |
| Solderability | WAVE/HAND | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | SPST | |
| Switch Type | SLIDE DIP SWITCH | |
| Terminal Length | 0.106 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
