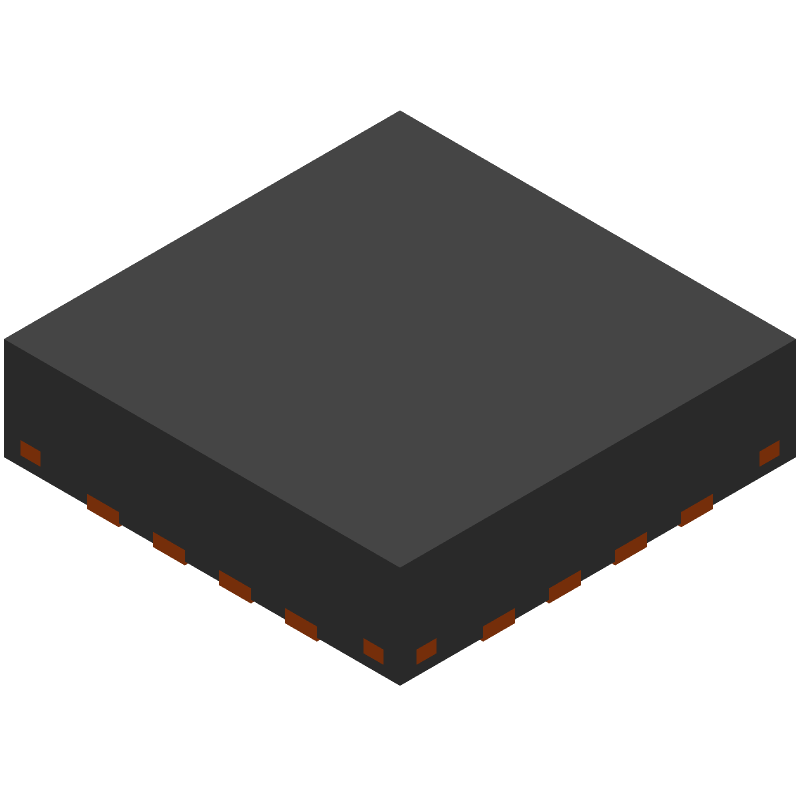

10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85

Part Details for DRV8833CRTET by Texas Instruments

Results Overview of DRV8833CRTET by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Aerospace and Defense Agriculture Technology Automotive Robotics and Drones

DRV8833CRTET Information

DRV8833CRTET by Texas Instruments is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
DRV8833CRTET Texas Instruments 1A Low Voltage Stepper or Single/Dual Brushed DC Motor Driver (PWM Ctrl) 16-WQFN -40 to 85

Price & Stock for DRV8833CRTET

Part # Distributor Description Stock Price Buy
DISTI # 296-38587-1-ND
DigiKey IC MOTOR DRIVER 1A 16WQFN Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 441
In Stock
  • 1 $2.2200
  • 10 $1.6410
  • 25 $1.4976
  • 100 $1.3391
$1.3391 / $2.2200 Buy Now
DISTI # 595-DRV8833CRTET
Mouser Electronics Motor / Motion / Ignition Controllers & Drivers 1A Low Volt Stepper Sng/Dual DC Mtr Drv A 595-DR... V8833CRTER more RoHS: Compliant 19006
  • 1 $1.9800
  • 10 $1.4600
  • 25 $1.3300
  • 100 $1.2700
  • 250 $1.0700
$1.0700 / $1.9800 Buy Now
LCSC WQFN-16-EP(3x3) Stepper Motor Driver ROHS 37
  • 1 $1.2085
  • 10 $1.0788
  • 30 $0.9867
  • 250 $0.9031
  • 500 $0.8645
  • 1,000 $0.8496
$0.8496 / $1.2085 Buy Now
Vyrian Other Function Semiconductors 6246
RFQ

Part Details for DRV8833CRTET

DRV8833CRTET CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DRV8833CRTET Part Data Attributes

Parametric Data
DRV8833CRTET Texas Instruments
Buy Now Datasheet
Compare Parts:
DRV8833CRTET Texas Instruments 10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Package Description WQFN-16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature ALSO OPERATES WITH THE RANGE OF 0V TO 5.5V SUPPLY
Analog IC - Other Type BRUSH DC MOTOR CONTROLLER
JESD-30 Code S-PQCC-N16
JESD-609 Code e4
Length 3 mm
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Current-Max 1 A
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel) 260
Seated Height-Max 0.8 mm
Supply Current-Max (Isup) 3 mA
Supply Voltage-Max (Vsup) 10.8 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 3 mm

Alternate Parts for DRV8833CRTET

This table gives cross-reference parts and alternative options found for DRV8833CRTET. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV8833CRTET, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DRV8833CRTER Texas Instruments $0.6214 10.8-V, 1-A dual H-bridge motor driver with current regulation 16-WQFN -40 to 85 DRV8833CRTET vs DRV8833CRTER
DRV8833PWP Texas Instruments $1.3862 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-HTSSOP -40 to 85 DRV8833CRTET vs DRV8833PWP
DRV8833RTYR Texas Instruments $1.1059 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-QFN -40 to 85 DRV8833CRTET vs DRV8833RTYR
DRV8833RTYT Texas Instruments $1.0376 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-QFN -40 to 85 DRV8833CRTET vs DRV8833RTYT
DRV8833PWR Texas Instruments $1.0980 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-TSSOP -40 to 85 DRV8833CRTET vs DRV8833PWR
DRV8833PW Texas Instruments $1.8383 10.8-V, 2-A dual H-bridge motor driver with current regulation 16-TSSOP -40 to 85 DRV8833CRTET vs DRV8833PW
DRV8833CPWP Texas Instruments $0.7454 10.8-V, 1-A dual H-bridge motor driver with current regulation 16-HTSSOP -40 to 85 DRV8833CRTET vs DRV8833CPWP

DRV8833CRTET Related Parts

DRV8833CRTET Frequently Asked Questions (FAQ)

  • The maximum voltage that can be applied to the VM pin is 15V, but it's recommended to keep it below 12V for reliable operation.

  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 50-100mV at the maximum motor current.

  • The nSLEEP pin is an active-low input that puts the device into a low-power sleep mode when driven low. This can be used to reduce power consumption when the motor is not in use. To use it, simply drive the nSLEEP pin low to enter sleep mode, and drive it high to exit sleep mode.

  • The DRV8833CRTET can be configured for half-bridge or full-bridge operation by connecting the appropriate pins. For half-bridge operation, connect the OUT1 and OUT2 pins together, and for full-bridge operation, connect the OUT1 and OUT2 pins to separate motor windings.

  • The DRV8833CRTET can handle a maximum current of 2A per channel, but this can be limited by the PCB design, thermal considerations, and other factors. Be sure to check the thermal and current handling capabilities of your specific design.
