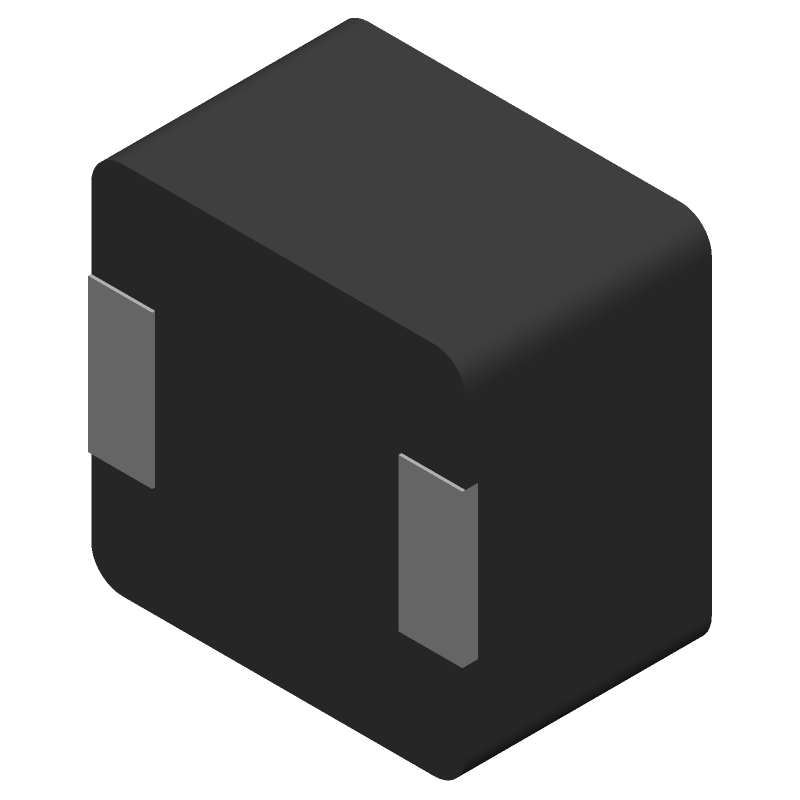

General Purpose Inductor, 150uH, 20%, Ferrite-Core, 4947,

Part Details for DR127-151-R by Coiltronics

Results Overview of DR127-151-R by Coiltronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DR127-151-R Information

DR127-151-R by Coiltronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.

Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.

Price & Stock for DR127-151-R

Part # Distributor Description Stock Price Buy
DISTI # 74AC0139
Newark Inductor, Power, Inductance:150Μh, Rms Current (Irms):1.59A, Inductor Construction:Shielded, Sat... uration Current (Isat):3.01A, Product Range:Dr Series, Power Inductor Case:12.5Mm X 12.5Mm X 8Mm, Dc Resistance Max:-, Inductance Rohs Compliant: Yes |Eaton Coiltronics DR127-151-R more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 350
  • 1 $1.7700
  • 10 $1.6300
  • 25 $1.5500
  • 50 $1.4800
  • 100 $1.4300
  • 250 $1.3800
  • 500 $1.3500
$1.3500 / $1.7700 Buy Now
DISTI # 27K7323
Newark Inductor, Shielded, 150Uh, 3.01A, Smd, Inductance:150Μh, Rms Current (Irms):1.59A, Inductor Const... ruction:Shielded, Saturation Current (Isat):3.01A, Product Range:Dr Series, Dc Resistance Max:-, Inductance Tolerance:± 20% Rohs Compliant: Yes |Eaton Coiltronics DR127-151-R more RoHS: Compliant Min Qty: 350 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $1.1900
  • 1,000 $1.1300
  • 2,000 $1.0700
  • 4,000 $0.9720
  • 6,000 $0.9400
  • 10,000 $0.9070
$0.9070 / $1.1900 Buy Now
Vyrian Inductors 7789
RFQ

Part Details for DR127-151-R

DR127-151-R CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DR127-151-R Part Data Attributes

Parametric Data
DR127-151-R Coiltronics
Buy Now Datasheet
Compare Parts:
DR127-151-R Coiltronics General Purpose Inductor, 150uH, 20%, Ferrite-Core, 4947,
Select a part to compare:
Part Life Cycle Code Transferred
Ihs Manufacturer COILTRONICS INC
Package Description CHIP
Reach Compliance Code unknown
ECCN Code EAR99
HTS Code 8504.50.80.00
Samacsys Manufacturer COILTRONICS
Case/Size Code 4949
Construction Rectangular
Core Material FERRITE
DC Resistance 0.247 Ω
Inductance-Nom (L) 150 µH
Inductor Application POWER INDUCTOR
Inductor Type GENERAL PURPOSE INDUCTOR
Number of Functions 1
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Height 8 mm
Package Length 12.5 mm
Package Style SMT
Package Width 12.5 mm
Packing Method TR, 13 Inch
Rated Current-Max 1.59 A
Shape/Size Description RECTANGULAR PACKAGE
Shielded YES
Surface Mount YES
Terminal Placement DUAL ENDED
Terminal Shape WRAPAROUND
Test Frequency 0.1 MHz
Tolerance 20%

DR127-151-R Related Parts

DR127-151-R Frequently Asked Questions (FAQ)

  • The recommended PCB land pattern for the DR127-151-R can be found in the Coiltronics application note AN-001, which provides detailed guidelines for PCB layout and design.

  • The DR127-151-R has a maximum operating temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal relief, such as a thermal pad or via, and to follow proper PCB design and layout practices to minimize thermal resistance.

  • The self-resonant frequency (SRF) of the DR127-151-R is not explicitly stated in the datasheet. However, it can be estimated using the inductor's inductance and capacitance values. Typically, the SRF is around 100-200 MHz for this type of inductor.

  • The DR127-151-R is designed to meet the requirements of various industrial and automotive applications, including those with high vibration. However, it's essential to ensure that the PCB and component mounting are designed to withstand the expected vibration levels.

  • To select the correct DR127-151-R variant, consider factors such as the required inductance value, current rating, and tolerance. Refer to the Coiltronics datasheet and application notes for guidance on selecting the appropriate part number and variant.
