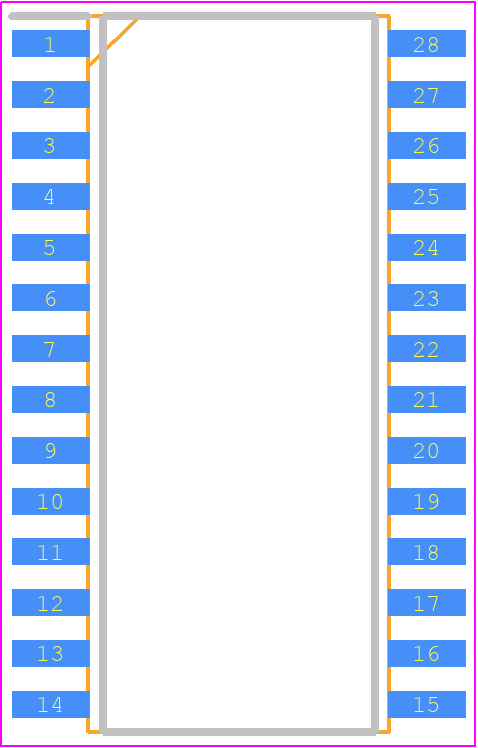

Footprint
-

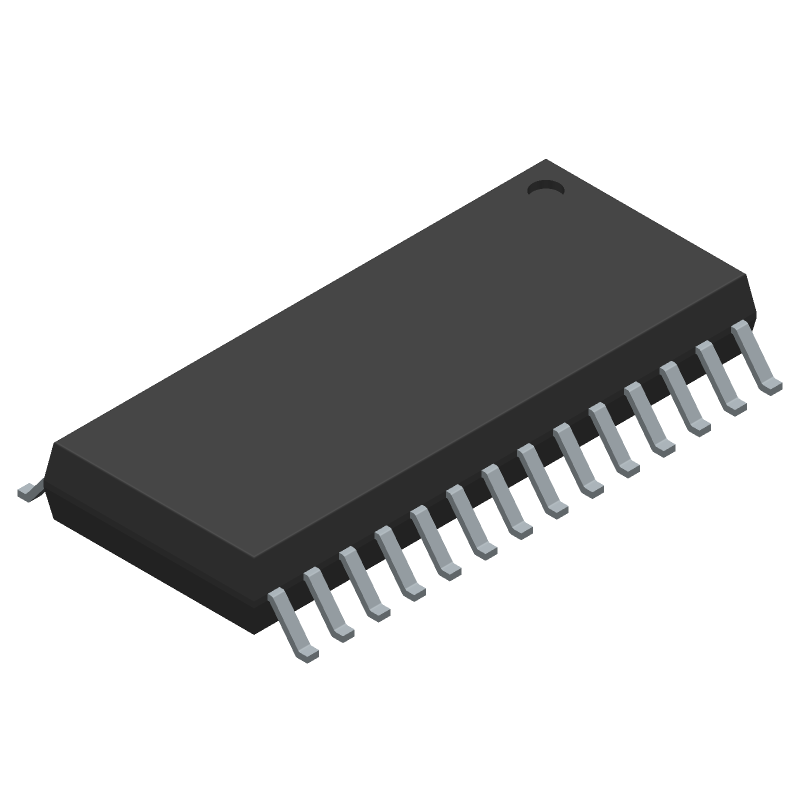

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DG507ACWI+T by Analog Devices Inc
Results Overview of DG507ACWI+T by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (3 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
DG507ACWI+T Information
DG507ACWI+T by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DG507ACWI+T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DG507ACWIT
|
Mouser Electronics | Multiplexer Switch ICs Monolithic CMOS Analog Multiplexers RoHS: Compliant | 648 |
|
$10.0100 / $18.8600 | Buy Now |
|
|
Analog Devices Inc | Monolithic CMOS Analog Multipl Min Qty: 1000 Package Multiple: 1 | 0 |
|
$10.0125 / $18.0300 | Buy Now |
Part Details for DG507ACWI+T
DG507ACWI+T CAD Models
DG507ACWI+T Part Data Attributes
|
|
DG507ACWI+T
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DG507ACWI+T
Analog Devices Inc
Monolithic CMOS Analog Multiplexers, 28-SOIC_W-300_MIL, 28 Pins, 0 to 70C
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 28-SOIC_W-300_MIL | |
| Package Description | SO-28 | |
| Pin Count | 28 | |
| Manufacturer Package Code | 28-SOIC_W-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1988-04-01 | |
| Samacsys Manufacturer | Analog Devices | |
| Analog IC - Other Type | DIFFERENTIAL MULTIPLEXER | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 17.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Max (Vsup) | -18 V | |
| Neg Supply Voltage-Min (Vsup) | -4.5 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Off-state Isolation-Nom | 68 dB | |
| On-state Resistance Match-Nom | 27 Ω | |
| On-state Resistance-Max (Ron) | 450 Ω | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP28,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Signal Current-Max | 0.02 A | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 400 ns | |
| Switch-on Time-Max | 1000 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
Alternate Parts for DG507ACWI+T
This table gives cross-reference parts and alternative options found for DG507ACWI+T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DG507ACWI+T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DG507AEWI-T | Maxim Integrated Products | Check for Price | Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDSO28 | DG507ACWI+T vs DG507AEWI-T |
| DG507AEWI | Maxim Integrated Products | Check for Price | Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDSO28 | DG507ACWI+T vs DG507AEWI |
| DG507AEWI+ | Maxim Integrated Products | Check for Price | Multiplexers/Switches, 1 Func, 8 Channel, CMOS, PDSO28 | DG507ACWI+T vs DG507AEWI+ |
