Improved, Quad, SPST Analog Switches, 16-SOIC_N-150_MIL, 16 Pins, -40 to 85C

Part Details for DG413DY+ by Analog Devices Inc

Results Overview of DG413DY+ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Education and Research Audio and Video Systems Aerospace and Defense Entertainment and Gaming Communication and Networking

DG413DY+ Information

DG413DY+ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for DG413DY+

Part # Distributor Description Stock Price Buy
DISTI # 700-DG413DY
Mouser Electronics Analog Switch ICs Improved, Quad, SPST Analog Switches RoHS: Compliant 172
  • 1 $7.1200
  • 10 $5.5000
  • 50 $4.7200
  • 100 $4.4200
  • 250 $4.1000
  • 500 $4.0000
  • 1,000 $3.9300
$3.9300 / $7.1200 Buy Now
Analog Devices Inc Improved, Quad, SPST Analog Sw Package Multiple: 1 1373
  • 1 $8.6900
  • 10 $5.8450
  • 100 $4.2680
  • 250 $3.8571
  • 500 $3.7875
  • 1,000 $3.0300
$3.0300 / $8.6900 Buy Now

Part Details for DG413DY+

DG413DY+ CAD Models

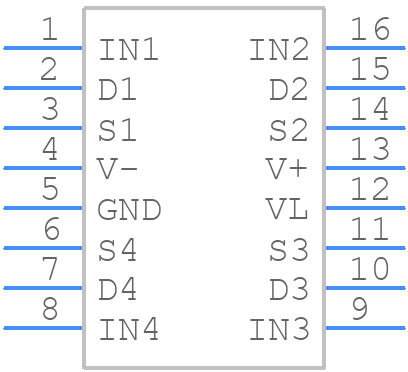

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

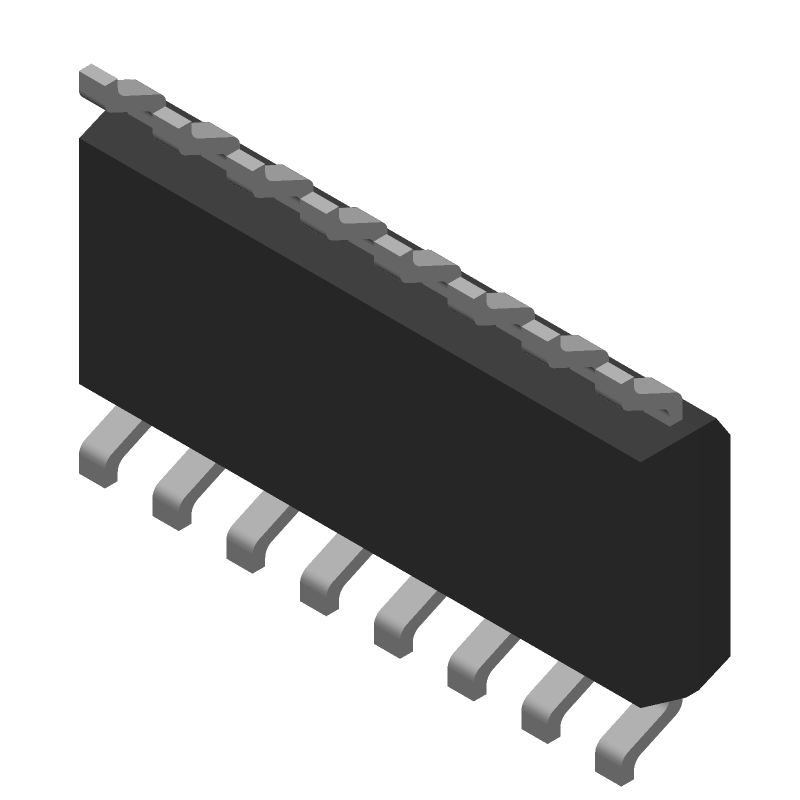

  • 3D Model
