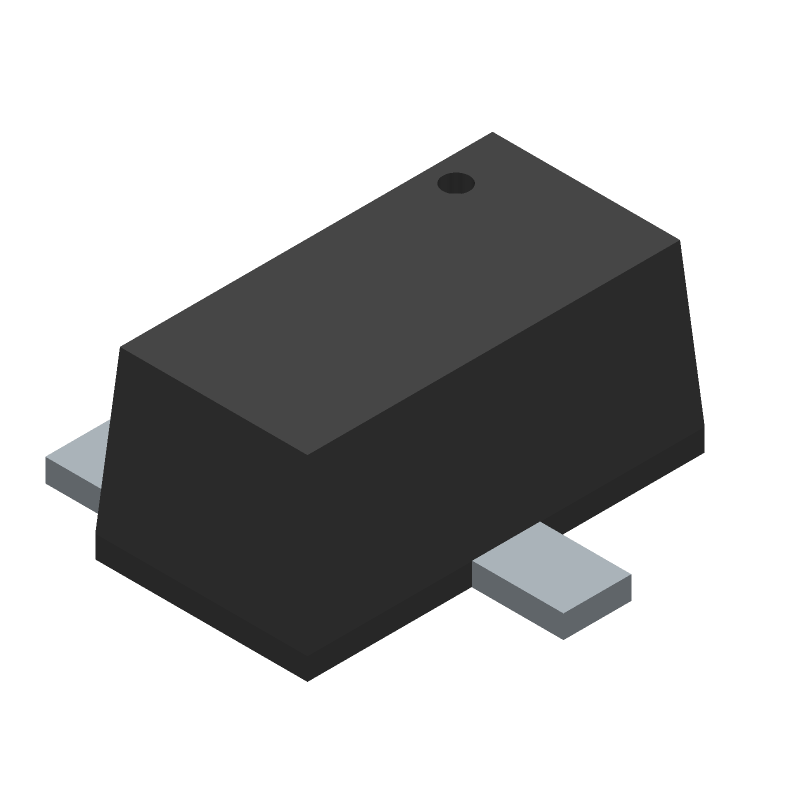

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DB3S308F0L by Panasonic Electronic Components
Results Overview of DB3S308F0L by Panasonic Electronic Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
DB3S308F0L Information
DB3S308F0L by Panasonic Electronic Components is a Microwave Mixer Diode.
Microwave Mixer Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DB3S308F0L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
DB3S308F0L
|
Avnet Abacus | Diode Switching 30V 0075A 3Pin SC89 Embossed TR (Alt: DB3S308F0L) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 143 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Greenchips | Date Code: 18+ | 44 |
|
RFQ | |
|
|
Win Source Electronics | DIODE ARRAY SCHOTTKY 30V SSMINI3 | 84510 |
|
$0.0433 / $0.0649 | Buy Now |
Part Details for DB3S308F0L
DB3S308F0L CAD Models
DB3S308F0L Part Data Attributes
|
|
DB3S308F0L
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
DB3S308F0L
Panasonic Electronic Components
Mixer Diode, Very High Frequency, Silicon, HALOGEN FREE AND ROHS COMPLIANT, SSMINI3-F3-B, SC-89, 3 PIN
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | SC-89, 3 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.60 | |
| Samacsys Manufacturer | Panasonic | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | MIXER DIODE | |
| Forward Voltage-Max (VF) | 0.29 V | |
| Frequency Band | VERY HIGH FREQUENCY | |
| JESD-30 Code | R-PDSO-F3 | |
| Non-rep Pk Forward Current-Max | 1 A | |
| Number of Elements | 2 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Rep Pk Reverse Voltage-Max | 30 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
DB3S308F0L Frequently Asked Questions (FAQ)
-
The recommended PCB footprint for the DB3S308F0L is a rectangular pad with dimensions of 3.3mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
-
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating or cold solder joints.
-
The maximum operating temperature range for the DB3S308F0L is -40°C to 125°C, with a storage temperature range of -40°C to 150°C.
-
Handle the DB3S308F0L by the edges or the body, avoiding touching the pins or the electrical contacts. Use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
-
The recommended reflow soldering profile for the DB3S308F0L is a peak temperature of 240°C to 250°C, with a dwell time of 30 seconds to 60 seconds above 217°C.
