Part Details for D2540-6V0C-AR-WG by 3M Interconnect

Results Overview of D2540-6V0C-AR-WG by 3M Interconnect

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

D2540-6V0C-AR-WG Information

D2540-6V0C-AR-WG by 3M Interconnect is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
CSD25404Q3 Texas Instruments -20V, P ch NexFET MOSFET™, single SON 3x3, 6.5mOhm 8-VSON-CLIP -55 to 150
CSD25404Q3T Texas Instruments -20V, P ch NexFET MOSFET™, single SON 3x3, 6.5mOhm 8-VSON-CLIP -55 to 150
CSD25402Q3A Texas Instruments -20V, P ch NexFET MOSFET™, single SON 3x3, 8.9mOhm 8-VSONP -55 to 125

Price & Stock for D2540-6V0C-AR-WG

Part # Distributor Description Stock Price Buy
DISTI # 12P7071
Newark Wire-Board Connector, Header, 40 Position, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:... 2.54Mm, No. Of Rows:2Rows, No. Of Contacts:40Contacts, Contact Termination Type:Surface Mount Straight, Product Range:D2500 Series Rohs Compliant: Yes |3M D2540-6V0C-AR-WG more RoHS: Compliant Min Qty: 400 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # MSH40ECT-ND
DigiKey CONN HEADER SMD 40POS 2.54MM Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 233
In Stock
  • 1 $4.8200
  • 10 $4.3790
  • 100 $3.8582
  • 200 $3.0243
  • 400 $2.8800
  • 600 $2.7988
  • 1,000 $2.6998
  • 1,400 $2.6365
  • 2,000 $2.5710
$2.5710 / $4.8200 Buy Now
DISTI # 7010305454
Avnet Americas Conn Shrouded Header HDR 40 POS 2.54mm Solder ST SMD T/R - Tape and Reel (Alt: 7010305454) RoHS: Compliant Min Qty: 400 Package Multiple: 200 Lead time: 16 Weeks, 0 Days Container: Reel 0
RFQ
DISTI # 517-D2540-6V0C-AR-WH
Mouser Electronics Headers & Wire Housings 40P 4-WALL HEADER VERTICAL SMT 10U AU RoHS: Compliant 2710
  • 1 $3.9200
  • 10 $3.7200
  • 100 $2.7500
  • 200 $2.5800
  • 600 $2.5100
  • 1,000 $2.4800
  • 2,600 $2.3900
$2.3900 / $3.9200 Buy Now
DISTI # MMM7100243211
Heilind Electronics 3M FOUR-WALL HEADER, D2500 SE D2540-6V0C-AR-WG Americas - 0 in Stock
  • 400 $3.0318
  • 600 $2.9844
  • 2,800 $2.9385
$2.9385 / $3.0318 Buy Now
Bristol Electronics   17
RFQ

Part Details for D2540-6V0C-AR-WG

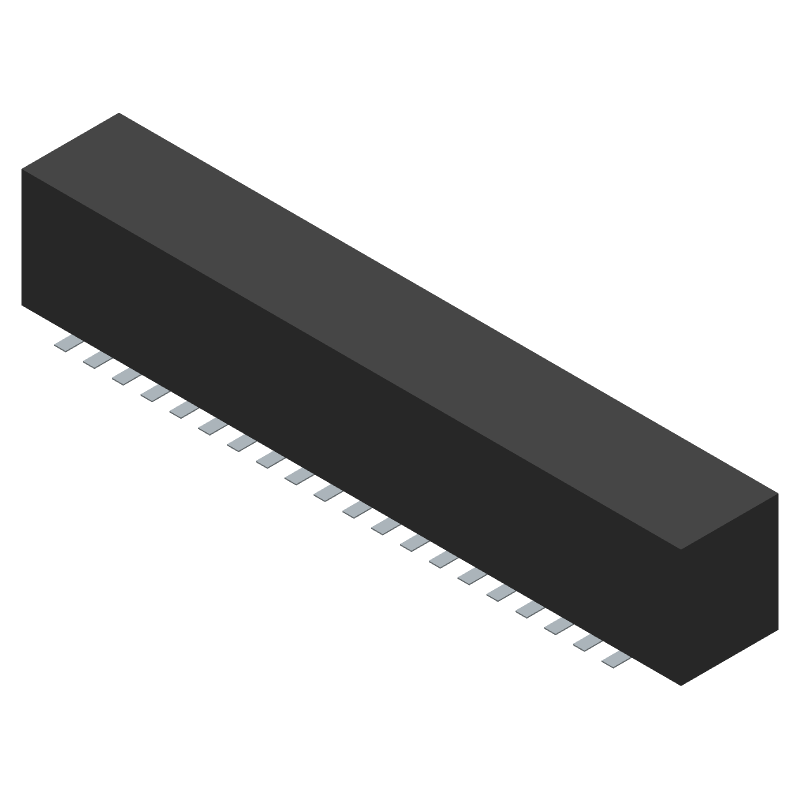

D2540-6V0C-AR-WG CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

D2540-6V0C-AR-WG Part Data Attributes

Parametric Data
D2540-6V0C-AR-WG 3M Interconnect
Buy Now Datasheet
Compare Parts:
D2540-6V0C-AR-WG 3M Interconnect Board Connector
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer 3M ELECTRONIC PRODUCTS DIVISION
Reach Compliance Code compliant
Factory Lead Time 16 Weeks
Samacsys Manufacturer 3M
Body Breadth 0.338 inch
Body Depth 0.4 inch
Body Length 2.288 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating NOT SPECIFIED
Contact Finish Termination Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 1000VAC V
Filter Feature NO
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material GLASS FILLED PCT-POLYESTER
JESD-609 Code e3
Mating Contact Pitch 0.1 inch
Mating Contact Row Spacing 0.1 inch
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max 105 °C
Operating Temperature-Min -55 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing 6.86 mm
Plating Thickness 10u inch
Polarization Key GUIDE SLOT(S)
Rated Current (Signal) 5 A
Reference Standard CUL; UL
Terminal Pitch 2.54 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 40
UL Flammability Code 94V-0
