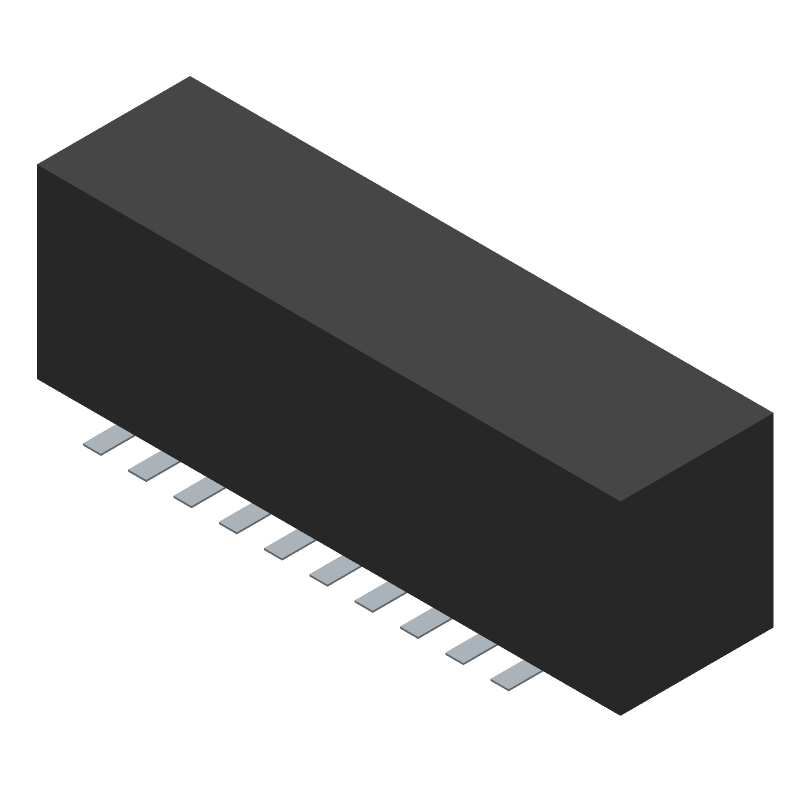

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for D2520-6V0C-AR-WE by 3M Interconnect
Results Overview of D2520-6V0C-AR-WE by 3M Interconnect
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
D2520-6V0C-AR-WE Information
D2520-6V0C-AR-WE by 3M Interconnect is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CSD25202W15T | Texas Instruments | -20V, P ch NexFET MOSFET™, single WLP 1.5x1.5, 26mOhm 9-DSBGA -55 to 150 | |
| CSD25202W15 | Texas Instruments | -20V, P ch NexFET MOSFET™, single WLP 1.5x1.5, 26mOhm 9-DSBGA |
Price & Stock for D2520-6V0C-AR-WE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
67T1235
|
Newark | Conn, Header, 20Pos, 2Row, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of ... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 517 |
|
$1.5700 | Buy Now |
|
DISTI #
12P7059
|
Newark | Wire-Board Connector, Header, 20 Position, 2.54Mm, Full Reel, Connector Systems:Wire-To-Board, Pit... more RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
MSH20ECT-ND
|
DigiKey | CONN HEADER SMD 20POS 2.54MM Min Qty: 1 Lead time: 8 Weeks Container: Tape & Reel (TR), Digi-Reel®, Cut Tape (CT) |
789 In Stock |
|
$1.7118 / $3.1200 | Buy Now |
|
DISTI #
7010347798
|
Avnet Americas | Conn Shrouded Header HDR 20 POS 2.54mm Solder ST SMD T/R - Tape and Reel (Alt: 7010347798) RoHS: Compliant Min Qty: 200 Package Multiple: 200 Lead time: 24 Weeks, 0 Days Container: Reel |
200 |
|
RFQ | |
|
DISTI #
67T1235
|
Avnet Americas | Conn Shrouded Header HDR 20 POS 2.54mm Solder ST SMD T/R - Product that comes on tape, but is not re... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 4 Days Container: Ammo Pack |
517 Partner Stock |
|
$1.7000 / $2.0700 | Buy Now |
|
DISTI #
7100243206
|
Avnet Americas | Conn Shrouded Header HDR 20 POS 2.54mm Solder ST SMD T/R - Bulk (Alt: 7100243206) RoHS: Compliant Min Qty: 1000 Package Multiple: 200 Lead time: 13 Weeks, 4 Days Container: Bulk | 0 |
|
$1.6817 / $1.7868 | Buy Now |
|
DISTI #
517-D2520-6V0C-AR-WE
|
Mouser Electronics | Headers & Wire Housings 20P 4-WALL HEADER VERTICAL SMT 10U AU RoHS: Compliant | 148 |
|
$1.8200 / $2.7800 | Buy Now |
|
DISTI #
MMM7100243206
|
Heilind Electronics | 4-WALL HEADER, D2500 SERIES | Americas - 0 in Stock |
|
$2.0212 / $2.0529 | Buy Now |
|
|
Bristol Electronics | 21 |
|
RFQ | ||
|
|
Quest Components | TWO PART BOARD CONNECTOR | 35 |
|
$1.9407 / $3.8814 | Buy Now |
Part Details for D2520-6V0C-AR-WE
D2520-6V0C-AR-WE CAD Models
D2520-6V0C-AR-WE Part Data Attributes
|
|
D2520-6V0C-AR-WE
3M Interconnect
Buy Now
Datasheet
|
Compare Parts:
D2520-6V0C-AR-WE
3M Interconnect
Board Connector,
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | 3M ELECTRONIC PRODUCTS DIVISION | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks, 4 Days | |
| Samacsys Manufacturer | 3M | |
| Body Breadth | 0.338 inch | |
| Body Depth | 0.4 inch | |
| Body Length | 1.288 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| Dielectric Withstanding Voltage | 1000VAC V | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED PCT-POLYESTER | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 6.86 mm | |
| Plating Thickness | 10u inch | |
| Polarization Key | GUIDE SLOT(S) | |
| Rated Current (Signal) | 5 A | |
| Reference Standard | CUL; UL | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SURFACE MOUNT | |
| Total Number of Contacts | 20 | |
| UL Flammability Code | 94V-0 |
D2520-6V0C-AR-WE Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
-
Yes, the D2520-6V0C-AR-WE is designed to withstand vibrations and is suitable for use in high-vibration environments.
-
The operating temperature range for the D2520-6V0C-AR-WE is -40°C to 125°C (-40°F to 257°F).
-
Yes, the D2520-6V0C-AR-WE is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals.
-
No, the D2520-6V0C-AR-WE is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.
