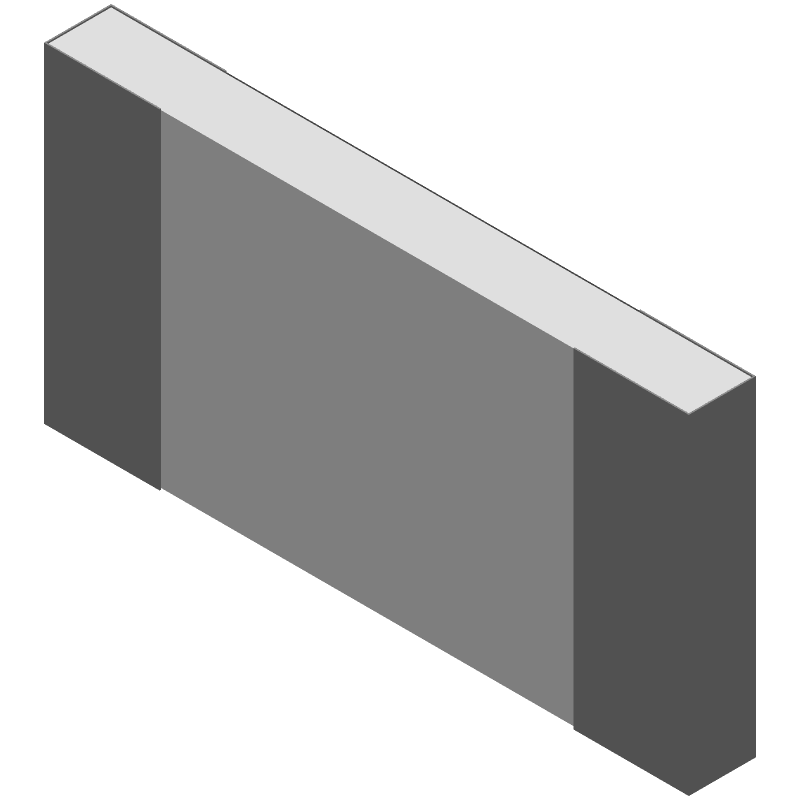

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSS2512FT25L0 by SEI Stackpole Electronics Inc
Results Overview of CSS2512FT25L0 by SEI Stackpole Electronics Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CSS2512FT25L0 Information
CSS2512FT25L0 by SEI Stackpole Electronics Inc is a Metal Alloy Resistor.
Metal Alloy Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CSS2512FT25L0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CSS2512FT25L0-ND
|
DigiKey | RES 0.025 OHM 1% 2W 2512 Min Qty: 2000 Lead time: 17 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2656 | Buy Now |
|
DISTI #
CSS2512FT25L0
|
Avnet Americas | RES CURR SENS 0.025 OHMS 1% - Tape and Reel (Alt: CSS2512FT25L0) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.2560 | Buy Now |
|
DISTI #
708-CSS2512FT25L0
|
Mouser Electronics | Current Sense Resistors - SMD RES SHUNT, 2512, 0.025 ohm, 1%, 2W RoHS: Compliant | 0 |
|
$0.2650 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.2440 / $0.2860 | Buy Now |
|
|
NAC | RESISTOR SHUNT, 2512, 0.025 ohm, 1%, 2W - Ultra Stable Current Sense Metal Strip RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | 0 |
|
$0.5000 / $0.6670 | Buy Now |
Part Details for CSS2512FT25L0
CSS2512FT25L0 CAD Models
CSS2512FT25L0 Part Data Attributes
|
|
CSS2512FT25L0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
CSS2512FT25L0
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Alloy, 2W, 0.025ohm, 1% +/-Tol, -15,15ppm/Cel, 2513
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | ULTRA PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 225 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.65 mm | |
| Package Length | 6.25 mm | |
| Package Style | SMT | |
| Package Width | 3.3 mm | |
| Packing Method | TR, Plastic, 7 Inch | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 100 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.025 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2513 | |
| Surface Mount | YES | |
| Technology | METAL ALLOY | |
| Temperature Coefficient | 15 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% |
