CSS2512FT10L0 Information
CSS2512FT10L0 by SEI Stackpole Electronics Inc is a Metal Alloy Resistor.
Metal Alloy Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CSS2512FT10L0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CSS2512FT10L0-ND
|
DigiKey | RES 0.01 OHM 1% 2W 2512 Min Qty: 2000 Lead time: 17 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.2656 | Buy Now |
|
DISTI #
CSS2512FT10L0
|
Avnet Americas | Res Metal Alloy 2512 0.01 Ohm 1% 2W ?15ppm/?C Molded SMD SMD Plastic T/R - Tape and Reel (Alt: CSS25... more RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 17 Weeks, 0 Days Container: Reel | 0 |
|
$0.2560 | Buy Now |
|
DISTI #
708-CSS2512FT10L0
|
Mouser Electronics | Current Sense Resistors - SMD RES SHUNT, 2512, 0.01 ohm, 1%, 2W RoHS: Compliant | 0 |
|
$0.2650 | Order Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks | 0 |
|
$0.4450 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.2440 / $0.2860 | Buy Now |
|
|
NAC | RESISTOR SHUNT, 2512, 0.01 ohm, 1%, 2W - Ultra Stable Current Sense Metal Strip RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | 0 |
|
$0.5000 / $0.6670 | Buy Now |
Part Details for CSS2512FT10L0

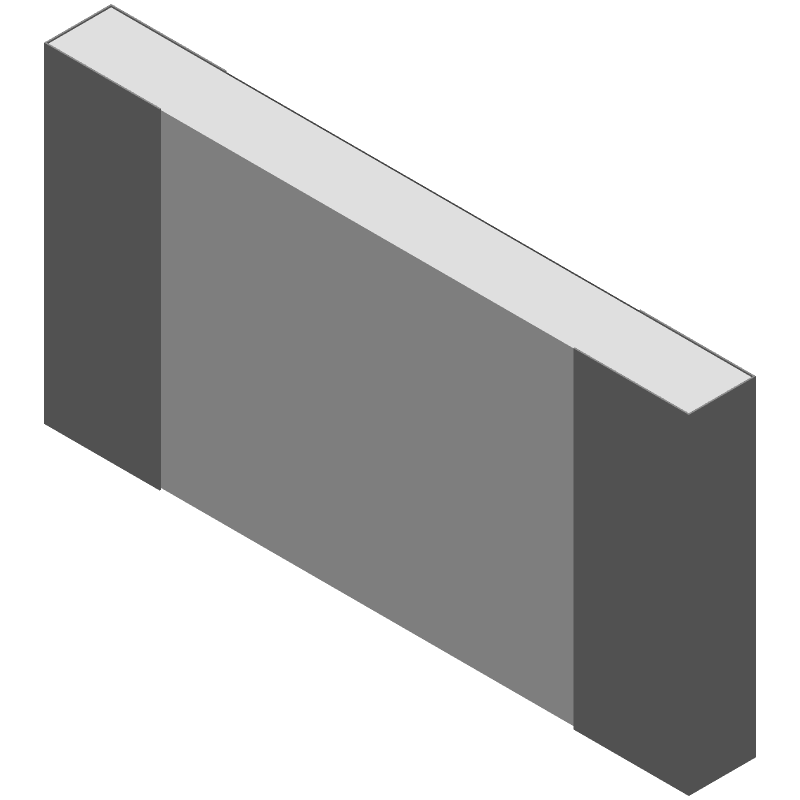

CSS2512FT10L0 CAD Models
CSS2512FT10L0 Part Data Attributes
|
|
CSS2512FT10L0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
CSS2512FT10L0
SEI Stackpole Electronics Inc
Fixed Resistor, Metal Alloy, 2W, 0.01ohm, 1% +/-Tol, -15,15ppm/Cel, 2513
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | ULTRA PRECISION | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 225 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.65 mm | |
| Package Length | 6.25 mm | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 100 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.01 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 15 ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.141 V |
CSS2512FT10L0 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the CSS2512FT10L0 is a rectangular pad with a size of 1.3mm x 0.8mm, with a 0.2mm radius corner and a 0.1mm spacing between pads.
-
To handle thermal considerations, ensure a good thermal connection to the PCB ground plane, use a thermal pad or thermal via under the component, and consider using a heat sink or thermal interface material if high power dissipation is expected.
-
The maximum operating temperature range for the CSS2512FT10L0 is -55°C to +150°C, but derating is required above 125°C to ensure reliable operation.
-
Yes, the CSS2512FT10L0 is suitable for high-frequency applications up to 1 GHz, but ensure proper PCB layout, decoupling, and impedance matching to minimize signal loss and distortion.
-
Select a resistor value that ensures the desired current rating and power dissipation, considering the maximum voltage rating and the specific application requirements.
