Resistors / Fixed Resistors / CSR0603FK36L0
Datasheets
CSR0603FK36L0 by: SEI Stackpole Electronics Inc

Fixed Resistor

Part Details for CSR0603FK36L0 by SEI Stackpole Electronics Inc

Results Overview of CSR0603FK36L0 by SEI Stackpole Electronics Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Security and Surveillance Internet of Things (IoT) Financial Technology (Fintech) Smart Cities Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Telecommunications Entertainment and Gaming Communication and Networking

CSR0603FK36L0 Information

CSR0603FK36L0 by SEI Stackpole Electronics Inc is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CSR0603FK36L0

Part # Distributor Description Stock Price Buy
DISTI # CSR0603FK36L0-ND
DigiKey RES 0.036 OHM 1% 1/8W 0603 Min Qty: 1000 Lead time: 14 Weeks Container: Tape & Reel (TR) Temporarily Out of Stock
  • 1,000 $0.1131
$0.1131 Buy Now
DISTI # CSR0603FK36L0
Avnet Americas Res Thick Film 0603 36MilliOhm 1% 1/8W Molded T/R - Tape and Reel (Alt: CSR0603FK36L0) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.1109
  • 2,000 $0.1000
  • 4,000 $0.0984
  • 6,000 $0.0968
  • 8,000 $0.0952
$0.0952 / $0.1109 Buy Now
DISTI # 708-CSR0603FK36L0
Mouser Electronics Current Sense Resistors - SMD RES CS, 0603, 0.036 ohm, 1%, 0.125W RoHS: Compliant 0
  • 1,000 $0.1130
  • 2,000 $0.1080
  • 5,000 $0.1060
  • 10,000 $0.1050
$0.1050 / $0.1130 Order Now
Future Electronics   RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks 0
  • 1,000 $0.1841
  • 2,000 $0.1813
  • 3,000 $0.1798
  • 4,000 $0.1778
$0.1778 / $0.1841 Buy Now
Onlinecomponents.com   RoHS: Compliant 0
  • 1,000 $0.1140
  • 2,000 $0.1070
  • 4,000 $0.1000
  • 8,000 $0.0980
$0.0980 / $0.1140 Buy Now
NAC RESISTOR CURRENT SENSING, 0603, 0.036 ohm, 1%, 0.125W - Thick Film - Current Sensing RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 0
  • 1,000 $0.2670
  • 5,000 $0.2290
  • 25,000 $0.2000
$0.2000 / $0.2670 Buy Now

Part Details for CSR0603FK36L0

CSR0603FK36L0 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

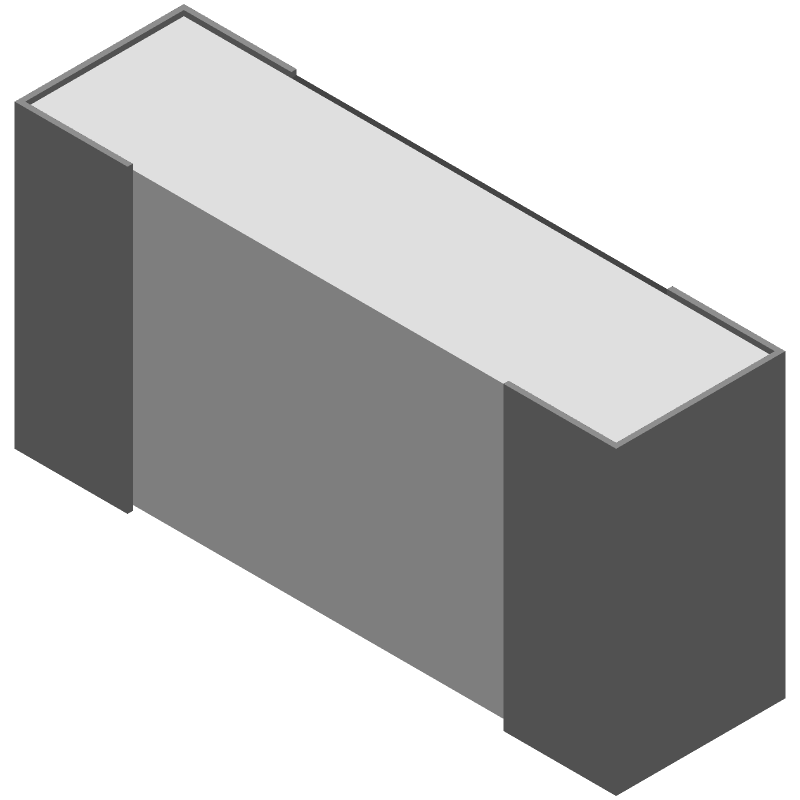

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CSR0603FK36L0 Part Data Attributes

Parametric Data
CSR0603FK36L0 SEI Stackpole Electronics Inc
Buy Now Datasheet
Compare Parts:
CSR0603FK36L0 SEI Stackpole Electronics Inc Fixed Resistor
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STACKPOLE ELECTRONICS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 13 Weeks
Samacsys Manufacturer Stackpole Electronics, Inc.
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.45 mm
Package Length 1.6 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 0.8 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Resistance 0.036 Ω
Resistor Type FIXED RESISTOR
Size Code 0603
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 300 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 0.0671 V

Alternate Parts for CSR0603FK36L0

This table gives cross-reference parts and alternative options found for CSR0603FK36L0. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CSR0603FK36L0, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
CSR0603FT36L0 SEI Stackpole Electronics Inc Check for Price Fixed Resistor CSR0603FK36L0 vs CSR0603FT36L0
