Resistors / Metal Glaze/Thick Film Resistors / CRM2512-FX-75R0ELF
Datasheets
CRM2512-FX-75R0ELF by: Bourns Inc

Fixed Resistor, Metal Glaze/thick Film, 2W, 75ohm, 300V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT

Part Details for CRM2512-FX-75R0ELF by Bourns Inc

Results Overview of CRM2512-FX-75R0ELF by Bourns Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Renewable Energy

CRM2512-FX-75R0ELF Information

CRM2512-FX-75R0ELF by Bourns Inc is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRM2512-FX-75R0ELF

Part # Distributor Description Stock Price Buy
DISTI # 34AK1251
Newark Res, 75R, 1%, 2W, 2512, Thick Film, Resistance:75Ohm, Resistance Tolerance:± 1%, Power Rating:2W,... Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:High Power, Product Range:Crm Series Rohs Compliant: Yes |Bourns CRM2512-FX-75R0ELF more RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 2,500 $0.1890
$0.1890 Buy Now
DISTI # 05R6948
Newark Res, 75R, 1%, 2W, 2512, Thick Film, Resistance:75Ohm, Resistance Tolerance:± 1%, Power Rating:2W,... Resistor Case/Package:2512 [6432 Metric], Resistor Technology:Thick Film, Resistor Type:High Power, Product Range:Crm Series Rohs Compliant: Yes |Bourns CRM2512-FX-75R0ELF more RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1 $0.1890
  • 5,000 $0.1790
  • 10,000 $0.1560
  • 20,000 $0.1390
  • 30,000 $0.1280
  • 50,000 $0.1170
$0.1170 / $0.1890 Buy Now
DISTI # 118-CRM2512-FX-75R0ELFCT-ND
DigiKey RES SMD 75 OHM 1% 2W 2512 Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2548
In Stock
  • 1 $0.4700
  • 10 $0.3040
  • 25 $0.2576
  • 50 $0.2286
  • 100 $0.2040
  • 250 $0.1770
  • 500 $0.1601
  • 1,000 $0.1457
  • 4,000 $0.1223
  • 8,000 $0.1135
  • 12,000 $0.1090
  • 20,000 $0.1039
  • 28,000 $0.1009
  • 40,000 $0.0979
  • 100,000 $0.0932
$0.0932 / $0.4700 Buy Now
DISTI # CRM2512-FX-75R0ELF
Avnet Americas SMD Chip Resistor, 75 Ohm, ? 1%, 2 W, 2512 [6432 Metric], Thick Film, High Power - Tape and Reel (Al... t: CRM2512-FX-75R0ELF) more RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 14 Weeks, 0 Days Container: Reel 0
  • 4,000 $0.1181
  • 8,000 $0.1163
  • 16,000 $0.0970
  • 24,000 $0.0965
  • 32,000 $0.0960
$0.0960 / $0.1181 Buy Now
DISTI # 652-CRM2512FX75R0ELF
Mouser Electronics Current Sense Resistors - SMD 2watts 1% 75ohms 100 PPM 2512 RoHS: Compliant 3474
  • 1 $0.4700
  • 10 $0.3040
  • 25 $0.2290
  • 100 $0.2040
  • 250 $0.1770
  • 500 $0.1610
  • 1,000 $0.1460
  • 4,000 $0.1180
  • 8,000 $0.1130
$0.1130 / $0.4700 Buy Now
Onlinecomponents.com High Power Thick Film Chip Resistor - 2.0W - 75.0 ohms ±1% - ±100ppm/°C - 300V - SMD 2512 - Tape&... ;Reel more RoHS: Compliant 0
  • 4,000 $0.1343
  • 8,000 $0.1304
  • 12,000 $0.1051
  • 28,000 $0.1022
  • 52,000 $0.0982
  • 100,000 $0.0956
  • 152,000 $0.0942
$0.0942 / $0.1343 Buy Now
DISTI # CRM2512-FX-75R0ELF
TTI Current Sense Resistors - SMD 2watts 1% 75ohms 100 PPM 2512 pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel Americas - 8000
In Stock
  • 4,000 $0.1030
  • 8,000 $0.1010
  • 12,000 $0.0990
  • 20,000 $0.0970
$0.0970 / $0.1030 Buy Now
DISTI # CRM2512-FX-75R0ELF
Avnet Abacus SMD Chip Resistor 75 Ohm 1 2 W 2512 6432 Metric Thick Film High Power - Tape and Reel (Alt: CRM2512... -FX-75R0ELF) more RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Master Electronics High Power Thick Film Chip Resistor - 2.0W - 75.0 ohms ±1% - ±100ppm/°C - 300V - SMD 2512 - Tape&... ;Reel more RoHS: Compliant 0
  • 4,000 $0.1343
  • 8,000 $0.1304
  • 12,000 $0.1051
  • 28,000 $0.1022
  • 52,000 $0.0982
  • 100,000 $0.0956
  • 152,000 $0.0942
$0.0942 / $0.1343 Buy Now

Part Details for CRM2512-FX-75R0ELF

CRM2512-FX-75R0ELF CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

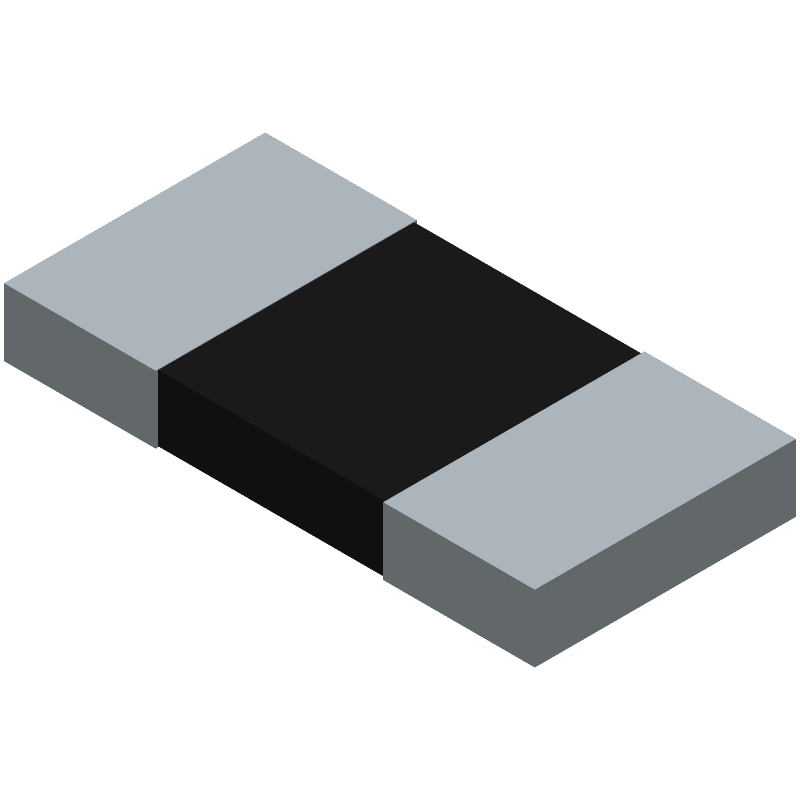

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRM2512-FX-75R0ELF Part Data Attributes

Parametric Data
CRM2512-FX-75R0ELF Bourns Inc
Buy Now Datasheet
Compare Parts:
CRM2512-FX-75R0ELF Bourns Inc Fixed Resistor, Metal Glaze/thick Film, 2W, 75ohm, 300V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer BOURNS INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 14 Weeks
Samacsys Manufacturer Bourns
Additional Feature CURRENT SENSING
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.6 mm
Package Length 6.3 mm
Package Style SMT
Package Width 3.1 mm
Packing Method TR, PAPER, 7 INCH
Rated Power Dissipation (P) 2 W
Rated Temperature 70 °C
Resistance 75 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 300 V

CRM2512-FX-75R0ELF Related Parts

CRM2512-FX-75R0ELF Frequently Asked Questions (FAQ)

  • The recommended land pattern for the CRM2512-FX-75R0ELF can be found in the Bourns Application Note S-8151, which provides guidelines for PCB layout and land pattern design.

  • The CRM2512-FX-75R0ELF has a high power rating, and thermal considerations are crucial. Ensure good thermal conductivity by using a thermal pad on the PCB, and consider using a heat sink or thermal interface material if necessary. Refer to the Bourns Thermal Management Application Note S-8153 for more information.

  • The maximum operating temperature range for the CRM2512-FX-75R0ELF is -40°C to +125°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within this range.

  • The CRM2512-FX-75R0ELF is designed to meet the requirements of various industries, including automotive and industrial. While it can withstand some vibration, it's essential to evaluate the specific vibration requirements of your application and consider additional mechanical support or fixation if necessary.

  • The CRM2512-FX-75R0ELF meets various safety and regulatory standards, including AEC-Q200, IATF 16949, and RoHS. Ensure that your application meets the necessary standards by following the guidelines and requirements outlined in the datasheet and relevant industry standards.
