Resistors / Metal Glaze/Thick Film Resistors / CRCW08055M10FKEA
Datasheets
CRCW08055M10FKEA by:
Vishay Intertechnologies
Vishay Dale
Vishay Intertechnologies
Not Found

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW08055M10FKEA by Vishay Intertechnologies

Results Overview of CRCW08055M10FKEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

CRCW08055M10FKEA Information

CRCW08055M10FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW08055M10FKEA

Part # Distributor Description Stock Price Buy
DISTI # 24W3711
Newark Surface Mount Thick Film Resistor, Aec-Q200 Crcw Series, 5.1 Mohm, 125 Mw, - 1%, 150 V Rohs Complian... t: Yes |Vishay CRCW08055M10FKEA more RoHS: Compliant Min Qty: 5000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 5,000 $0.0090
$0.0090 Buy Now
DISTI # CRCW08055M10FKEA
Avnet Americas D12/CRCW0805 100 5M1 1% ET1 e3 - Tape and Reel (Alt: CRCW08055M10FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 235000
  • 5,000 $0.0040
  • 10,000 $0.0037
  • 20,000 $0.0037
  • 30,000 $0.0036
  • 40,000 $0.0035
$0.0035 / $0.0040 Buy Now
DISTI # 71-CRCW08055M10FKEA
Mouser Electronics Thick Film Resistors - SMD 1/8watt 5.1Mohms 1% RoHS: Compliant 14923
  • 1 $0.1000
  • 10 $0.0250
  • 100 $0.0210
  • 500 $0.0150
  • 1,000 $0.0130
  • 5,000 $0.0070
  • 25,000 $0.0060
$0.0060 / $0.1000 Buy Now
DISTI # V79:2366_27013619
Arrow Electronics Res Thick Film 0805 5.1M Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1 Package Multiple: 1 Date Code: 2126 Americas - 9710
Buy Now
Future Electronics CRCW Series 0805 0.125 W 5.1 MOhm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 25000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel 0
Reel
  • 5,000 $0.0042
  • 15,000 $0.0042
  • 25,000 $0.0042
  • 100,000 $0.0042
  • 150,000 $0.0042
$0.0042 Buy Now
DISTI # 68378779
Verical Res Thick Film 0805 5.1M Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive AEC-Q200 Min Qty: 1283 Package Multiple: 1 Date Code: 2126 Americas - 9710
  • 1,283 $0.0045
$0.0045 Buy Now
Bristol Electronics   60000
RFQ
Bristol Electronics   3456
RFQ
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 1 %, 100 PPM, 5100000 OHM, SURFACE MOUNT, 0805, LEAD FREE 48000
  • 1 $0.0645
  • 2,327 $0.0129
  • 15,505 $0.0086
$0.0086 / $0.0645 Buy Now
Quest Components RESISTOR, METAL GLAZE/THICK FILM, 0.125 W, 1 %, 100 PPM, 5100000 OHM, SURFACE MOUNT, 0805, LEAD FREE 2764
  • 1 $0.0360
  • 140 $0.0240
  • 834 $0.0120
$0.0120 / $0.0360 Buy Now
DISTI # CRCW08055M10FKEA
TTI Thick Film Resistors - SMD 1/8watt 5.1Mohms 1% pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 5000
In Stock
  • 5,000 $0.0041
  • 10,000 $0.0040
  • 15,000 $0.0039
  • 25,000 $0.0039
  • 40,000 $0.0038
  • 125,000 $0.0036
  • 375,000 $0.0036
$0.0036 / $0.0041 Buy Now
DISTI # SMC-CRCW08055M10FKEA
Sensible Micro Corporation Thick Film Resistors - Smd 1/8Watt 5.1Mohms 1% RoHS: Not Compliant Min Qty: 25 Lead time: 0 Weeks, 1 Days 0
  • 100 $0.0293
  • 500 $0.0285
  • 1,000 $0.0270
$0.0270 / $0.0293 RFQ
DISTI # CRCW08055M10FKEA
Avnet Abacus D12CRCW0805 100 5M1 1 ET1 e3 (Alt: CRCW08055M10FKEA) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for CRCW08055M10FKEA

CRCW08055M10FKEA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

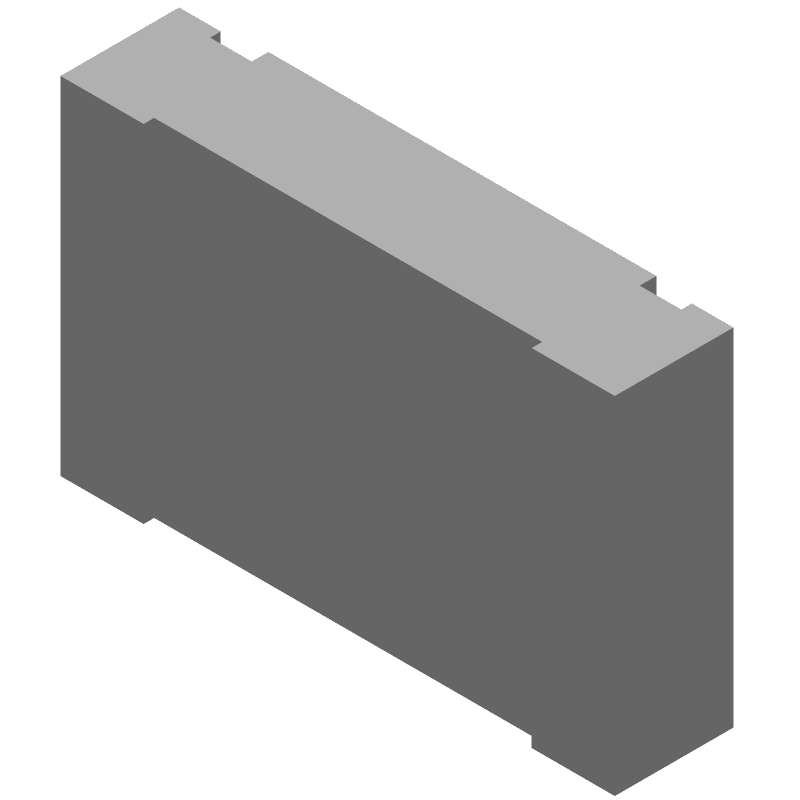

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW08055M10FKEA Part Data Attributes

Parametric Data
CRCW08055M10FKEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW08055M10FKEA Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 150
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 5100000 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for CRCW08055M10FKEA

This table gives cross-reference parts and alternative options found for CRCW08055M10FKEA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW08055M10FKEA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RC0805FR-075M1L YAGEO Corporation $0.0168 Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055M10FKEA vs RC0805FR-075M1L
BCTS000805-5104FTP Chilisin Electronics Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055M10FKEA vs BCTS000805-5104FTP
WR08W5104FQL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT CRCW08055M10FKEA vs WR08W5104FQL
WR08W5104FTL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT CRCW08055M10FKEA vs WR08W5104FTL
9C08052A5M1FKPFT YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT CRCW08055M10FKEA vs 9C08052A5M1FKPFT
232273415105 YAGEO Corporation Check for Price RES,SMT,THICK FILM,5.1M OHMS,50WV,1% +/-TOL,-100,100PPM TC,0805 CASE CRCW08055M10FKEA vs 232273415105
PWR05FTEW5104 Viking Tech Corp Check for Price Fixed Resistor, CHIP CRCW08055M10FKEA vs PWR05FTEW5104
RC0805FR-135M1L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055M10FKEA vs RC0805FR-135M1L
WR08W5104FGL Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT CRCW08055M10FKEA vs WR08W5104FGL
AR0805FR-075M1L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5100000ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055M10FKEA vs AR0805FR-075M1L

CRCW08055M10FKEA Related Parts

CRCW08055M10FKEA Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW08055M10FKEA is 240°C/W, which is relatively low and suitable for most applications.

  • Yes, the CRCW08055M10FKEA is suitable for high-frequency applications due to its low inductance and high-frequency stability.

  • The power rating of the CRCW08055M10FKEA at 70°C is 0.125W, which is lower than the maximum power rating of 0.25W at 25°C.

  • Yes, the CRCW08055M10FKEA resistor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The operating temperature range of the CRCW08055M10FKEA is -55°C to 155°C, making it suitable for a wide range of applications.
