Resistors / Metal Glaze/Thick Film Resistors / CRCW08055K23FKEA
Datasheets
CRCW08055K23FKEA by:
Vishay Intertechnologies
Vishay BCcomponents
Vishay Dale
Vishay Intertechnologies
Not Found

Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Part Details for CRCW08055K23FKEA by Vishay Intertechnologies

Results Overview of CRCW08055K23FKEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

CRCW08055K23FKEA Information

CRCW08055K23FKEA by Vishay Intertechnologies is a Metal Glaze/Thick Film Resistor.
Metal Glaze/Thick Film Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for CRCW08055K23FKEA

Part # Distributor Description Stock Price Buy
DISTI # CRCW08055K23FKEA
Avnet Americas D12/CRCW0805 100 5K23 1% ET1 e3 - Tape and Reel (Alt: CRCW08055K23FKEA) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks, 0 Days Container: Reel 10000
  • 5,000 $0.0045
  • 10,000 $0.0042
  • 20,000 $0.0041
  • 30,000 $0.0040
  • 40,000 $0.0038
$0.0038 / $0.0045 Buy Now
DISTI # 71-CRCW0805-5.23K-E3
Mouser Electronics Thick Film Resistors - SMD 1/8watt 5.23Kohms 1% 100ppm RoHS: Compliant 26050
  • 1 $0.1000
  • 10 $0.0250
  • 100 $0.0210
  • 500 $0.0140
  • 1,000 $0.0120
  • 5,000 $0.0070
  • 25,000 $0.0060
$0.0060 / $0.1000 Buy Now
DISTI # V36:1790_07442778
Arrow Electronics Res Thick Film 0805 5.23K Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Date Code: 2323 Americas - 20000
  • 5,000 $0.0050
  • 25,000 $0.0045
$0.0045 / $0.0050 Buy Now
DISTI # V72:2272_07442778
Arrow Electronics Res Thick Film 0805 5.23K Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2236 Container: Cut Strips Americas - 9051
  • 1 $0.0540
  • 10 $0.0135
  • 25 $0.0133
  • 100 $0.0111
  • 500 $0.0076
  • 1,000 $0.0059
  • 3,000 $0.0055
  • 6,000 $0.0051
$0.0051 / $0.0540 Buy Now
Future Electronics CRCW Series 0805 0.125 W 5.23 kOhm ±1 % ±100 ppm/K SMT Thick Film Chip Resistor RoHS: Compliant pbFree: Yes Min Qty: 5000 Package Multiple: 5000 Lead time: 12 Weeks Container: Reel 75000
Reel
  • 5,000 $0.0047
  • 15,000 $0.0046
  • 25,000 $0.0045
  • 75,000 $0.0043
  • 125,000 $0.0042
$0.0042 / $0.0047 Buy Now
DISTI # 69166199
Verical Res Thick Film 0805 5.23K Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 5000 Package Multiple: 5000 Date Code: 2323 Americas - 20000
  • 5,000 $0.0050
  • 25,000 $0.0045
$0.0045 / $0.0050 Buy Now
DISTI # 69166547
Verical Res Thick Film 0805 5.23K Ohm 1% 0.125W(1/8W) ±100ppm/°C Pad SMD T/R Automotive Min Qty: 1429 Package Multiple: 1 Date Code: 2236 Americas - 9051
  • 1,429 $0.0059
  • 3,000 $0.0055
  • 6,000 $0.0051
$0.0051 / $0.0059 Buy Now
DISTI # CRCW08055K23FKEA
TTI Thick Film Resistors - SMD 1/8watt 5.23Kohms 1% 100ppm pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Reel Americas - 25000
In Stock
  • 5,000 $0.0046
  • 10,000 $0.0045
  • 15,000 $0.0044
  • 20,000 $0.0043
  • 25,000 $0.0042
  • 40,000 $0.0042
  • 50,000 $0.0041
$0.0041 / $0.0046 Buy Now
DISTI # CRCW08055K23FKEA
Avnet Abacus D12CRCW0805 100 5K23 1 ET1 e3 (Alt: CRCW08055K23FKEA) RoHS: Compliant Min Qty: 15000 Package Multiple: 5000 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 125mW Thick Film Resistors 200V 1% 100ppm/ 5.23k 0805 Chip Resistor - Surface Mount ROHS 2710
  • 10 $0.0063
  • 100 $0.0051
  • 300 $0.0045
  • 1,000 $0.0041
  • 5,000 $0.0037
  • 10,000 $0.0035
$0.0035 / $0.0063 Buy Now

Part Details for CRCW08055K23FKEA

CRCW08055K23FKEA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

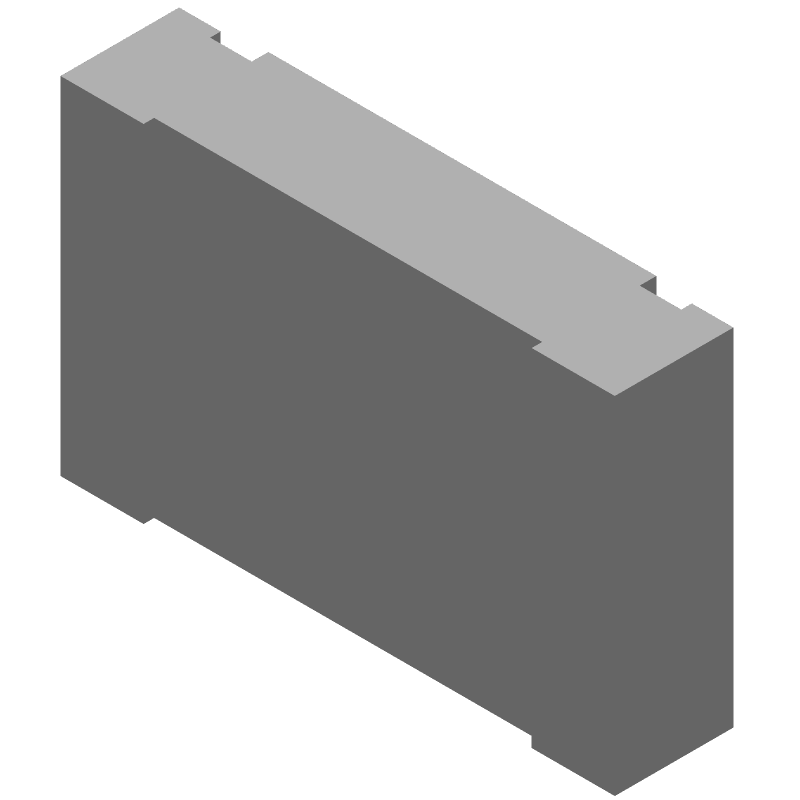

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CRCW08055K23FKEA Part Data Attributes

Parametric Data
CRCW08055K23FKEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
CRCW08055K23FKEA Vishay Intertechnologies Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8533.21.00.30
Factory Lead Time 12 Weeks
Samacsys Manufacturer Vishay
Additional Feature LASER TRIMMABLE, RATED AC VOLTAGE (V): 150
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 155 °C
Operating Temperature-Min -55 °C
Package Height 0.5 mm
Package Length 2 mm
Package Style SMT
Package Width 1.25 mm
Packing Method TR, Paper, 7 Inch
Rated Power Dissipation (P) 0.125 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 5230 Ω
Resistor Type FIXED RESISTOR
Size Code 0805
Surface Mount YES
Technology METAL GLAZE/THICK FILM
Temperature Coefficient 100 ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 150 V

Alternate Parts for CRCW08055K23FKEA

This table gives cross-reference parts and alternative options found for CRCW08055K23FKEA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CRCW08055K23FKEA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
RMCF0805FB5K23 SEI Stackpole Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, ROHS COMPLIANT CRCW08055K23FKEA vs RMCF0805FB5K23
RC0805FRF135K23 YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055K23FKEA vs RC0805FRF135K23
CAR10F5231CT Cal-Chip Electronics Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055K23FKEA vs CAR10F5231CT
RC0805FRF075K23L YAGEO Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP, LEAD FREE CRCW08055K23FKEA vs RC0805FRF075K23L
WR08X5231FQ Walsin Technology Corporation Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, CRCW08055K23FKEA vs WR08X5231FQ
RMAW20K5231FB Kamaya Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, FIXED THICK FILM CHIP RESISTOR CRCW08055K23FKEA vs RMAW20K5231FB
CR-05FLB--5K23 Viking Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP CRCW08055K23FKEA vs CR-05FLB--5K23
RK73H2ARTTPD5231F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, CRCW08055K23FKEA vs RK73H2ARTTPD5231F
RK73H2AGTDB5231F KOA Speer Electronics Inc Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, CRCW08055K23FKEA vs RK73H2AGTDB5231F
RC0805F5231 Synton-Tech Corp Check for Price Fixed Resistor, Metal Glaze/thick Film, 0.125W, 5230ohm, 150V, 1% +/-Tol, -100,100ppm/Cel, 0805, CRCW08055K23FKEA vs RC0805F5231

CRCW08055K23FKEA Related Parts

CRCW08055K23FKEA Frequently Asked Questions (FAQ)

  • The thermal resistance of the CRCW08055K23FKEA is 350°C/W, which is typical for a 0805 package size.

  • Yes, the CRCW08055K23FKEA is suitable for high-frequency applications due to its low inductance and high-frequency stability.

  • The power rating of the CRCW08055K23FKEA at 70°C is 0.125W, which is derated from the maximum power rating of 0.25W at 25°C.

  • Yes, the CRCW08055K23FKEA is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications.

  • The MSL of the CRCW08055K23FKEA is 1, which means it can withstand a maximum of 30 days in a humid environment before being soldered.
