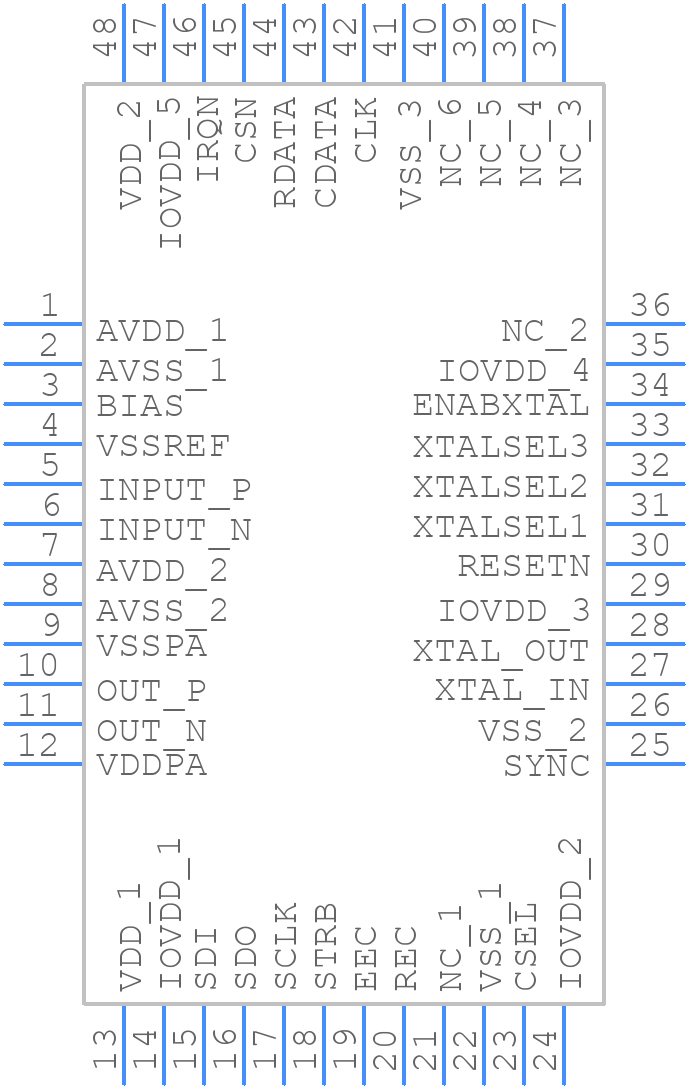

Part Symbol
-

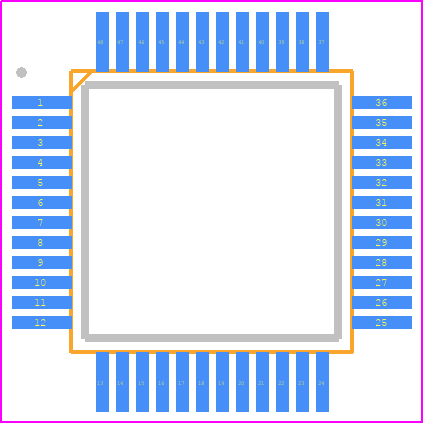

Footprint
-

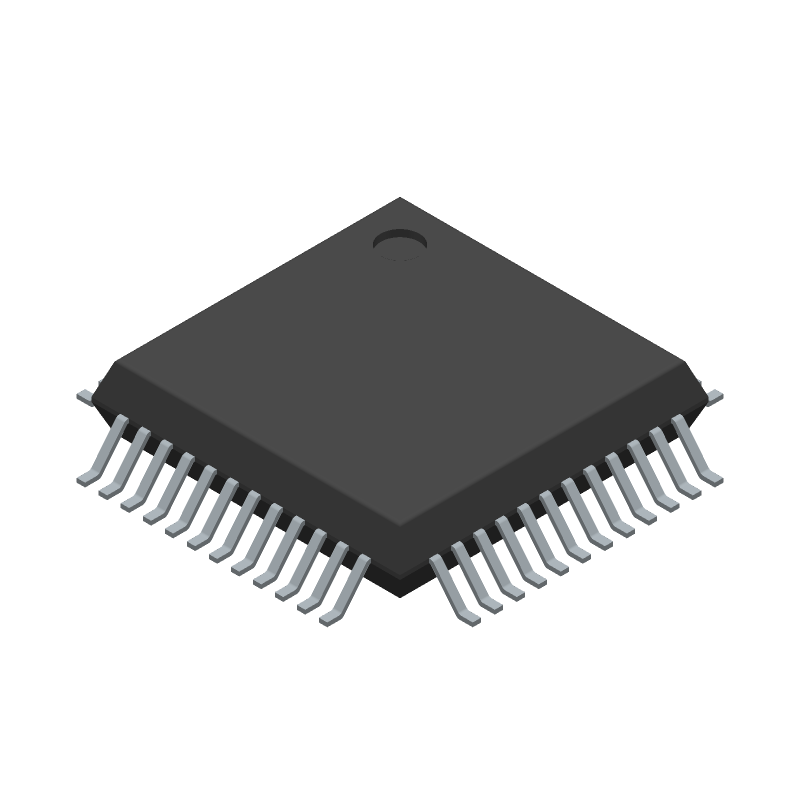

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CMX638L4 by CML Microcircuits Plc
Results Overview of CMX638L4 by CML Microcircuits Plc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CMX638L4 Information
CMX638L4 by CML Microcircuits Plc is a Codec.
Codecs are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for CMX638L4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2032-1055-ND
|
DigiKey | IC TELECOM INTERFACE 48LQFP Min Qty: 1 Lead time: 16 Weeks Container: Tray |
184 In Stock |
|
$23.2801 / $26.7600 | Buy Now |
|
DISTI #
226-CMX638L4
|
Mouser Electronics | Telecom Interface ICs High Performance Low Bit-rate Vocoder RoHS: Compliant | 257 |
|
$22.1300 / $26.7600 | Buy Now |
Part Details for CMX638L4
CMX638L4 CAD Models
CMX638L4 Part Data Attributes
|
|
CMX638L4
CML Microcircuits Plc
Buy Now
Datasheet
|
Compare Parts:
CMX638L4
CML Microcircuits Plc
PCM Codec, 1-Func, PQFP48, LQFP-48
Select a part to compare: |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | CML MICROCIRCUITS LTD | |
| Part Package Code | QFP | |
| Package Description | LQFP-48 | |
| Pin Count | 48 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | CML Micro | |
| Filter | YES | |
| JESD-30 Code | S-PQFP-G48 | |
| Length | 7 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Mode | SYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Telecom IC Type | PCM CODEC | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm |
CMX638L4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CMX638L4 is 3.0V to 5.5V.
-
To configure the CMX638L4 for optimal performance, ensure that the input signal is within the recommended voltage range, and that the device is properly decoupled with capacitors. Additionally, ensure that the device is operated within the recommended temperature range.
-
The maximum power dissipation of the CMX638L4 is 500mW.
-
Yes, the CMX638L4 can be used in high-temperature applications up to 125°C, but the device's performance and reliability may be affected.
-
To troubleshoot issues with the CMX638L4, check the input signal, power supply, and decoupling capacitors. Ensure that the device is operated within the recommended voltage and temperature ranges. If issues persist, consult the datasheet or contact CML Microcircuits Plc for support.
