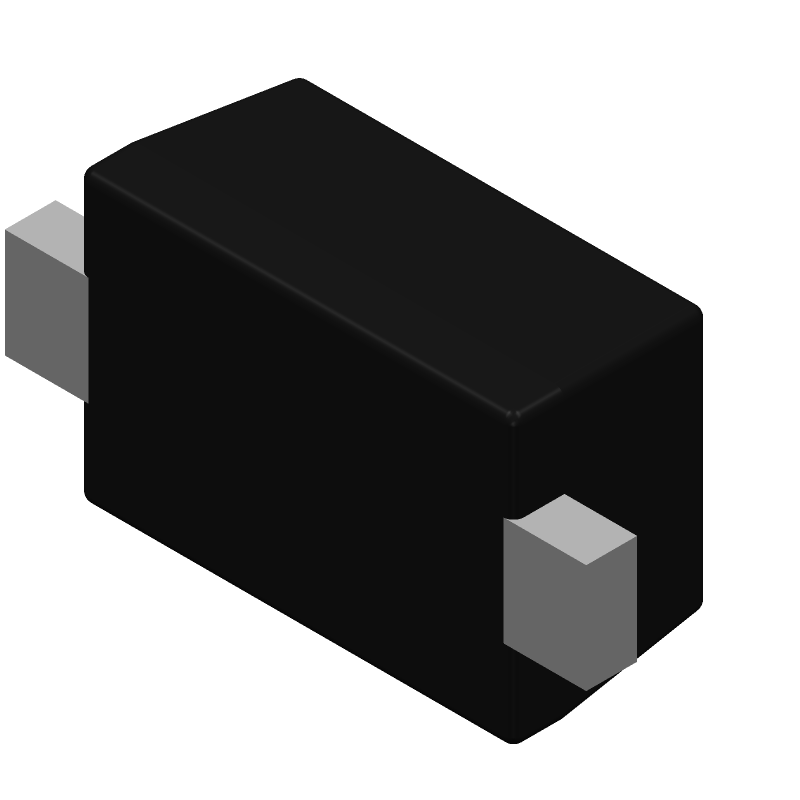

BZT52C3V0T-TP by: Micro Commercial Components

Zener Diode, 3V V(Z), 6.67%, 0.1W, Silicon, Unidirectional, PLASTIC PACKAGE-2

Part Details for BZT52C3V0T-TP by Micro Commercial Components

Results Overview of BZT52C3V0T-TP by Micro Commercial Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Energy and Power Systems Renewable Energy

BZT52C3V0T-TP Information

BZT52C3V0T-TP by Micro Commercial Components is a Zener Diode.
Zener Diodes are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for BZT52C3V0T-TP

Part # Distributor Description Stock Price Buy
DISTI # BZT52C3V0T-TPMSCT-ND
DigiKey DIODE ZENER 3V 200MW SOD523 Min Qty: 1 Lead time: 16 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 6420
In Stock
  • 1 $0.2200
  • 10 $0.1360
  • 100 $0.0610
  • 500 $0.0520
  • 1,000 $0.0420
  • 8,000 $0.0220
  • 16,000 $0.0211
  • 24,000 $0.0192
  • 40,000 $0.0178
  • 56,000 $0.0170
  • 80,000 $0.0162
  • 200,000 $0.0145
  • 400,000 $0.0134
$0.0134 / $0.2200 Buy Now
DISTI # 833-BZT52C3V0T-TP
Mouser Electronics Zener Diodes 100mW 3V 5016
  • 1 $0.2200
  • 10 $0.1360
  • 100 $0.0610
  • 500 $0.0520
  • 1,000 $0.0420
  • 2,500 $0.0380
  • 5,000 $0.0270
  • 8,000 $0.0220
  • 24,000 $0.0210
$0.0210 / $0.2200 Buy Now
DISTI # BZT52C3V0T-TP
TME Diode: Zener, 200mW, 3V, SMD, reel,tape, SOD523, single diode, 10uA Min Qty: 25 0
  • 25 $0.0325
  • 100 $0.0293
  • 500 $0.0259
  • 2,000 $0.0232
  • 8,000 $0.0209
$0.0209 / $0.0325 RFQ

Part Details for BZT52C3V0T-TP

BZT52C3V0T-TP CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BZT52C3V0T-TP Part Data Attributes

Parametric Data
BZT52C3V0T-TP Micro Commercial Components
Buy Now Datasheet
Compare Parts:
BZT52C3V0T-TP Micro Commercial Components Zener Diode, 3V V(Z), 6.67%, 0.1W, Silicon, Unidirectional, PLASTIC PACKAGE-2
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICRO COMMERCIAL COMPONENTS CORP
Package Description PACKAGE-2
Pin Count 2
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8541.10.00.50
Samacsys Manufacturer MCC
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max 95 Ω
JESD-30 Code R-PDSO-F2
JESD-609 Code e3
Knee Impedance-Max 600 Ω
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 175 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity UNIDIRECTIONAL
Power Dissipation-Max 0.2 W
Qualification Status Not Qualified
Reference Voltage-Nom 3 V
Reverse Current-Max 0.01 µA
Surface Mount YES
Technology ZENER
Terminal Finish MATTE TIN
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 10
Voltage Tol-Max 6.67%
Working Test Current 5 mA

Alternate Parts for BZT52C3V0T-TP

This table gives cross-reference parts and alternative options found for BZT52C3V0T-TP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BZT52C3V0T-TP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LLZ5227D Taiwan Semiconductor Check for Price Zener Diode, 3.6V V(Z), 1%, 0.5W, Silicon, Unidirectional, ROHS COMPLIANT, HERMETIC SEALED, GLASS, MINIMELF-2 BZT52C3V0T-TP vs LLZ5227D
MMBZ5268BLG onsemi Check for Price 82V, 0.225W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, TO-236, LEAD FREE, SOT-23, PLASTIC, 2 PIN BZT52C3V0T-TP vs MMBZ5268BLG
CMBZ5228B Rectron Semiconductor Check for Price Zener Diode, 3.9V V(Z), 5%, 0.3W, Silicon, Unidirectional, PLASTIC PACKAGE-3 BZT52C3V0T-TP vs CMBZ5228B
MX1N5227A-1E3 Microsemi Corporation Check for Price Zener Diode, 3.6V V(Z), 10%, 0.48W, Silicon, Unidirectional, DO-204AH, ROHS COMPLIANT, HERMETIC SEALED, GLASS, DO-35, 2 PIN BZT52C3V0T-TP vs MX1N5227A-1E3
1N5519C International Semiconductor Inc Check for Price Zener Diode, 3.6V V(Z), 2%, 0.4W, Silicon, Unidirectional, DO-35 BZT52C3V0T-TP vs 1N5519C
CMHZ4685 Central Semiconductor Corp Check for Price Zener Diode, 3.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, SOD-123, 2 PIN BZT52C3V0T-TP vs CMHZ4685
BZT55C2V7 Lite-On Semiconductor Corporation Check for Price Zener Diode, 2.7V V(Z), 7.407%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, QUADROMELF-2 BZT52C3V0T-TP vs BZT55C2V7
BZV55C3V0TRL13 YAGEO Corporation Check for Price Zener Diode, 3V V(Z), 5%, 0.5W, Silicon, Unidirectional BZT52C3V0T-TP vs BZV55C3V0TRL13
MMSZ4685FL Micro Commercial Components Check for Price Zener Diode, 3.6V V(Z), 5%, 0.5W, Silicon, Unidirectional, PLASTIC PACKAGE-2 BZT52C3V0T-TP vs MMSZ4685FL
BZM55C3V0-13 Diodes Incorporated Check for Price Zener Diode, 3V V(Z), 6.67%, 0.5W, Silicon, Unidirectional, HERMETIC SEALED, GLASS, MICROMELF-2 BZT52C3V0T-TP vs BZM55C3V0-13

BZT52C3V0T-TP Related Parts

BZT52C3V0T-TP Frequently Asked Questions (FAQ)

  • The recommended land pattern for BZT52C3V0T-TP can be found in the Micro Commercial Components' packaging information document or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure proper soldering and to prevent thermal and mechanical stress on the component.

  • BZT52C3V0T-TP is a static-sensitive device. To handle it safely, use anti-static wrist straps, mats, or bags to prevent electrostatic discharge (ESD) damage. Ensure that the workspace and tools are also ESD-safe.

  • The maximum storage temperature for BZT52C3V0T-TP is typically 30°C to 40°C (86°F to 104°F) with a relative humidity of 60% to 90%. Storage beyond these conditions may affect the component's reliability and performance.

  • Yes, BZT52C3V0T-TP is suitable for high-reliability applications. However, it is essential to follow the recommended operating conditions, storage, and handling guidelines to ensure the component's reliability and performance.

  • Use a soldering iron with a temperature of 250°C to 260°C (482°F to 500°F) and a solder with a melting point of 180°C to 220°C (356°F to 428°F). Apply a small amount of solder to the component leads and PCB pads, and ensure that the soldering time is within 2-3 seconds to prevent overheating.
