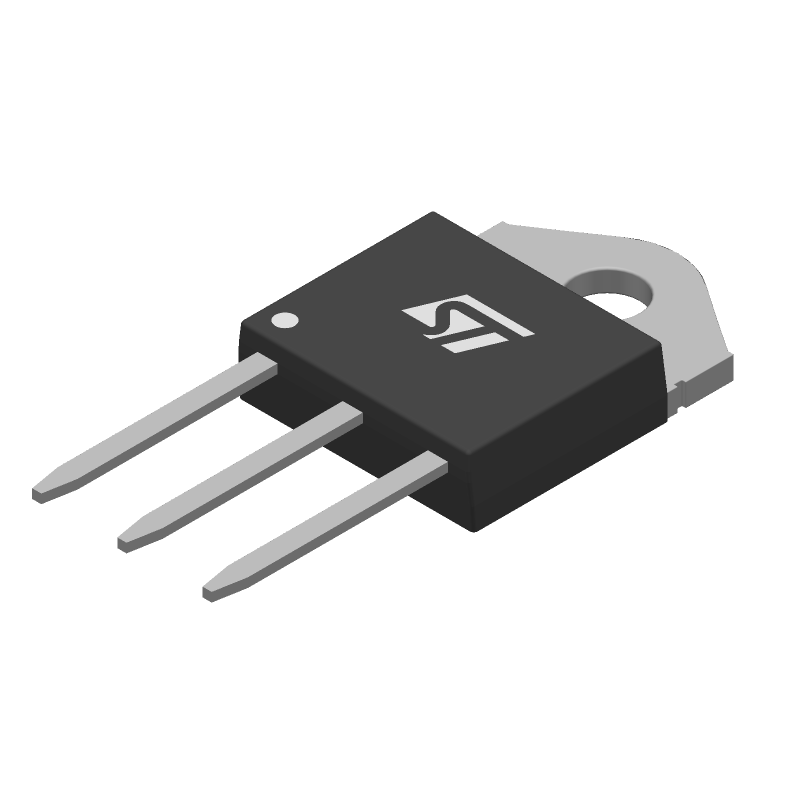

TRIAC,700V V(DRM),4A I(T)RMS,TO-220

Part Details for BTA04-700TRG by STMicroelectronics

Results Overview of BTA04-700TRG by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BTA04-700TRG Information

BTA04-700TRG by STMicroelectronics is a TRIAC.
TRIACs are under the broader part category of Trigger Devices.

Trigger devices initiate or control actions in electronic circuits by producing output signals when specific input conditions are met. They are commonly used in timing circuits and pulse generators. Read more about Trigger Devices on our Trigger Devices part category page.

Price & Stock for BTA04-700TRG

Part # Distributor Description Stock Price Buy
DISTI # BTA04-700TRG
Avnet Americas Thyristor TRIAC 700V 42A 3-Pin(3+Tab) TO-220AB Isolated Tube - Rail/Tube (Alt: BTA04-700TRG) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days Container: Tube 0
RFQ
DISTI # 511-BTA04-700T
Mouser Electronics Triacs 4 Amp 700 Volt RoHS: Compliant 642
  • 1 $1.3300
  • 10 $0.9300
  • 100 $0.7770
  • 250 $0.6600
  • 500 $0.6120
  • 1,000 $0.4990
  • 2,500 $0.4700
  • 5,000 $0.4540
$0.4540 / $1.3300 Buy Now

Part Details for BTA04-700TRG

BTA04-700TRG CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BTA04-700TRG Part Data Attributes

Parametric Data
BTA04-700TRG STMicroelectronics
Buy Now Datasheet
Compare Parts:
BTA04-700TRG STMicroelectronics TRIAC,700V V(DRM),4A I(T)RMS,TO-220
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer STMICROELECTRONICS
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 15 Weeks
Samacsys Manufacturer STMicroelectronics
Critical Rate of Rise of Commutation Voltage-Min 1 V/us
Critical Rate of Rise of Off-State Voltage-Min 10 V/us
DC Gate Trigger Current-Max 5 mA
DC Gate Trigger Voltage-Max 2.5 V
Holding Current-Max 15 mA
Leakage Current-Max 0.75 mA
On-State Voltage-Max 1.4 V
Operating Temperature-Max 110 °C
Operating Temperature-Min -40 °C
RMS On-state Current-Max 4 A
Repetitive Peak Off-state Voltage 700 V
Surface Mount NO
Trigger Device Type TRIAC

BTA04-700TRG Related Parts

BTA04-700TRG Frequently Asked Questions (FAQ)

  • STMicroelectronics recommends a PCB layout with a large copper area connected to the tab of the device to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be connected to a solid ground plane to reduce thermal resistance.

  • To ensure reliable operation in high-temperature environments, it is essential to follow the recommended derating curves for the device. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device. It is also recommended to use a thermally conductive interface material between the device and the heat sink.

  • To prevent ESD damage, handle the device in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the device's pins or leads. Use ESD-protected packaging and storage materials, and ensure that all equipment and tools used to handle the device are ESD-compliant.

  • Yes, the BTA04-700TRG is suitable for use in high-reliability and safety-critical applications. However, it is essential to follow the recommended design and qualification guidelines, and to perform thorough testing and validation to ensure the device meets the required safety and reliability standards.

  • The correct fuse rating for the BTA04-700TRG depends on the specific application and the maximum expected current. As a general guideline, the fuse rating should be at least 1.5 times the maximum expected current. Consult the datasheet and application notes for more detailed guidance on fuse selection.
