BM10B-SRSS-TB(LF)(SN) by: JST Manufacturing

Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

Part Details for BM10B-SRSS-TB(LF)(SN) by JST Manufacturing

Overview of BM10B-SRSS-TB(LF)(SN) by JST Manufacturing

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Price & Stock for BM10B-SRSS-TB(LF)(SN)

Part # Distributor Description Stock Price Buy
DISTI # 33P6554
Newark Wire-To-Board Connector, Top Entry, Sr Series, Surface Mount, Header, 10, 1 Mm, Tin Plated Contacts Rohs Compliant: Yes |Jst (Japan Solderless Terminals) BM10B-SRSS-TB(LF)(SN) Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Cut Tape 23293
  • 10 $1.2400
  • 100 $1.0800
  • 500 $0.8940
  • 1,000 $0.8240
$0.8240 / $1.2400 Buy Now
Future Electronics SR Series 1.0 mm Pitch 10 Position SMT Single Row Top Entry Shrouded Header RoHS: Compliant pbFree: Yes Min Qty: 1500 Package Multiple: 1500 Lead time: 16 Weeks Container: Reel 0
Reel
  • 1,500 $0.6850
  • 3,000 $0.6650
  • 4,500 $0.6500
$0.6500 / $0.6850 Buy Now
DISTI # JSTBM10B-SRSS-TB(LFSN).P
Heilind Electronics CUT TAPE Americas - 1133 in Stock
  • 1 $0.8500
  • 300 $0.7083
  • 600 $0.6855
  • 1,200 $0.6746
  • 2,400 $0.6641
$0.6641 / $0.8500 Buy Now
Quest Components 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 7140
  • 1 $1.4625
  • 1,314 $0.5363
  • 2,798 $0.5119
$0.5119 / $1.4625 Buy Now
Quest Components 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 295
  • 1 $2.0800
  • 132 $1.0400
  • 289 $0.9620
$0.9620 / $2.0800 Buy Now
Quest Components 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 44
  • 1 $2.2412
  • 3 $1.6809
  • 16 $1.4008
$1.4008 / $2.2412 Buy Now
Quest Components 10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT 28611
  • 1 $3.4000
  • 383 $1.4025
  • 714 $1.2750
$1.2750 / $3.4000 Buy Now
DISTI # JSTBM10B-SRSS-TB(LFSN).P
Interstate Connecting Components CUT TAPE 264
  • 1 $0.8500
  • 300 $0.7083
  • 600 $0.6855
  • 1,200 $0.6746
  • 2,400 $0.6641
$0.6641 / $0.8500 Buy Now
DISTI # C1S404000047757
Chip1Stop Conn Shrouded Header HDR 10 POS 1mm Solder ST SMD Embossed T/R RoHS: Compliant pbFree: Yes Container: Cut Tape 2819
  • 5 $0.4670
  • 50 $0.3120
  • 100 $0.2900
  • 200 $0.2890
  • 500 $0.2440
  • 1,000 $0.2300
  • 1,500 $0.2290
$0.2290 / $0.4670 Buy Now
CHIPMALL.COM LIMITED SMD,P=1mm Wire To Board / Wire To Wire Connector ROHS 49949
  • 5 $0.4360
  • 50 $0.3131
  • 150 $0.2669
  • 500 $0.2455
  • 2,500 $0.2331
$0.2331 / $0.4360 Buy Now
Component Electronics, Inc IN STOCK SHIP TODAY 15
  • 1 $1.5400
  • 100 $1.1500
  • 1,000 $1.0000
$1.0000 / $1.5400 Buy Now
LCSC 1x10P SH 10P Tin 10 -25+85 1A 1 1mm Copper Alloy Brick nogging SMDP1mm Wire To Board Connector ROHS 49949
  • 1 $0.3791
  • 10 $0.3048
  • 30 $0.2723
  • 100 $0.2159
  • 500 $0.1986
  • 1,500 $0.1886
$0.1886 / $0.3791 Buy Now

Part Details for BM10B-SRSS-TB(LF)(SN)

BM10B-SRSS-TB(LF)(SN) CAD Models

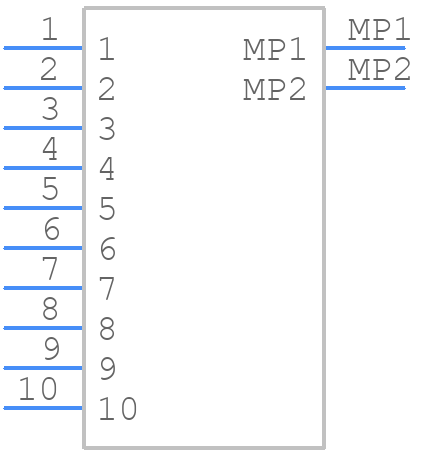

  • Part Symbol

    Part Symbol

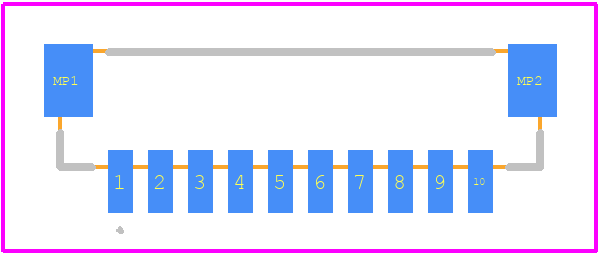

  • Footprint

    footprint

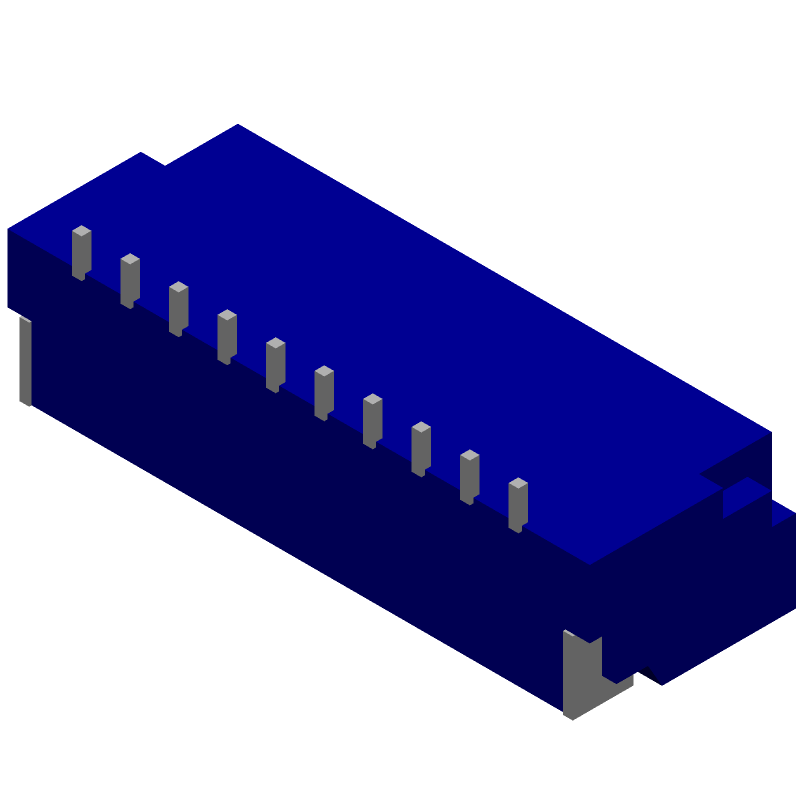

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BM10B-SRSS-TB(LF)(SN) Part Data Attributes

Parametric Data
BM10B-SRSS-TB(LF)(SN) JST Manufacturing
Buy Now Datasheet
Compare Parts:
BM10B-SRSS-TB(LF)(SN) JST Manufacturing Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer J S T MFG CO LTD
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.40
Samacsys Manufacturer JST (JAPAN SOLDERLESS TERMINALS)
Body Breadth 0.114 inch
Body Depth 0.167 inch
Body Length 0.472 inch
Connector Type BOARD CONNECTOR
Contact Finish Mating TIN OVER COPPER
Contact Finish Termination TIN COPPER
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Pattern RECTANGULAR
Contact Resistance 40 mΩ
Contact Style SQ PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage 500VAC V
Filter Feature NO
IEC Conformance NO
Insulation Resistance 100000000 Ω
Insulator Color NATURAL
Insulator Material POLYAMIDE
JESD-609 Code e2
MIL Conformance NO
Mating Contact Pitch 0.039 inch
Mating Information MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 1
Number of Rows Loaded 1
Operating Temperature-Max 85 °C
Operating Temperature-Min -25 °C
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key POLARIZED HOUSING
Rated Current (Signal) 1 A
Reference Standard UL
Terminal Pitch 1 mm
Termination Type SURFACE MOUNT
Total Number of Contacts 10
UL Flammability Code 94V-0
