COMPLEMENTARY SILICON POWER TRANSISTORS

Part Details for BD241C by STMicroelectronics

Results Overview of BD241C by STMicroelectronics

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Motor control systems

BD241C Information

BD241C by STMicroelectronics is a Power Bipolar Transistor.
Power Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for BD241C

Part # Distributor Description Stock Price Buy
DISTI # 95M8997
Newark Bipolar (Bjt) Single Transistor, Npn, 100 V, 40 W, 5 A, 25 Rohs Compliant: Yes |Stmicroelectronics B... D241C more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk 622
  • 1 $0.6910
  • 10 $0.5090
  • 100 $0.4870
  • 500 $0.4080
  • 1,000 $0.3810
  • 2,500 $0.3570
  • 10,000 $0.3270
$0.3270 / $0.6910 Buy Now
DISTI # 497-12139-ND
DigiKey TRANS NPN 100V 3A TO-220 Min Qty: 1 Lead time: 14 Weeks Container: Tube 2177
In Stock
  • 1 $1.0500
  • 50 $0.4844
  • 100 $0.4288
  • 500 $0.3311
  • 1,000 $0.2997
  • 2,000 $0.2732
  • 5,000 $0.2445
  • 10,000 $0.2268
$0.2268 / $1.0500 Buy Now
DISTI # BD241C
Avnet Americas Single Bipolar Transistor, NPN, 100 V, 3 A, 40 W, TO-220, 3 Pins, Through Hole - Rail/Tube (Alt: BD2... 41C) more RoHS: Compliant Min Qty: 3000 Package Multiple: 1000 Lead time: 14 Weeks, 0 Days Container: Tube 0
  • 3,000 $0.2172
  • 5,000 $0.2158
  • 8,000 $0.2119
  • 15,000 $0.2080
  • 30,000 $0.2043
$0.2043 / $0.2172 Buy Now
DISTI # 511-BD241C
Mouser Electronics Bipolar Transistors - BJT NPN Pwr Transistors RoHS: Compliant 3551
  • 1 $0.4000
  • 10 $0.3770
  • 100 $0.3470
  • 500 $0.2930
  • 1,000 $0.2700
  • 2,000 $0.2320
  • 5,000 $0.2260
$0.2260 / $0.4000 Buy Now
DISTI # E02:0323_00206861
Arrow Electronics Trans GP BJT NPN 100V 3A 40000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2508 Europe - 31586
  • 1 $0.3742
  • 10 $0.3467
  • 100 $0.3249
  • 500 $0.2469
  • 1,000 $0.1585
  • 2,500 $0.1540
$0.1540 / $0.3742 Buy Now
DISTI # V36:1790_06547977
Arrow Electronics Trans GP BJT NPN 100V 3A 40000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Lead time: 14 Weeks Date Code: 2310 Americas - 3031
  • 1,000 $0.2548
  • 2,000 $0.2253
  • 5,000 $0.2234
  • 10,000 $0.2211
$0.2211 / $0.2548 Buy Now
STMicroelectronics COMPLEMENTARY SILICON POWER TRANSISTORS RoHS: Compliant Min Qty: 1 3551
  • 1 $0.3900
  • 10 $0.3700
  • 100 $0.3400
  • 500 $0.2900
$0.2900 / $0.3900 Buy Now
DISTI # 7886021
Verical Trans GP BJT NPN 100V 3A 40000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 31 Package Multiple: 1 Americas - 31558
  • 31 $0.3327
$0.3327 Buy Now
DISTI # 66957773
Verical Trans GP BJT NPN 100V 3A 40000mW 3-Pin(3+Tab) TO-220AB Tube Min Qty: 1000 Package Multiple: 1000 Date Code: 2310 Americas - 3000
  • 1,000 $0.2548
  • 2,000 $0.2253
  • 5,000 $0.2234
  • 10,000 $0.2211
$0.2211 / $0.2548 Buy Now
DISTI # BD241C
TME Transistor: NPN, bipolar, 100V, 3A, 40W, TO220AB Min Qty: 1 930
  • 1 $0.5490
  • 10 $0.4800
  • 50 $0.3980
  • 100 $0.3630
  • 250 $0.3200
  • 500 $0.2900
  • 1,000 $0.2640
  • 5,000 $0.2530
$0.2530 / $0.5490 Buy Now
ComSIT USA NPN POWER TRANSISTOR Power Bipolar Transistor, 3A I(C), 100V V(BR)CEO, 1-Element, NPN, Silicon, TO-2... 20AB, Plastic/Epoxy, 3 Pin more ECCN: EAR99 RoHS: Compliant Stock DE - 145
Stock ES - 421
Stock US - 0
Stock MX - 0
Stock CN - 0
Stock HK - 0
RFQ
Chip 1 Exchange INSTOCK 2078
RFQ
DISTI # BD241C
Avnet Silica Single Bipolar Transistor NPN 100 V 3 A 40 W TO220 3 Pins Through Hole (Alt: BD241C) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 15 Weeks, 0 Days Silica - 22200
Buy Now
DISTI # BD241C
EBV Elektronik Single Bipolar Transistor NPN 100 V 3 A 40 W TO220 3 Pins Through Hole (Alt: BD241C) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 15 Weeks, 0 Days EBV - 2750
Buy Now
LCSC 100V 40W 103A4V 3A NPN TO-220-3 Bipolar (BJT) ROHS 1
  • 1 $1.3869
  • 10 $1.1485
  • 50 $0.9782
  • 100 $0.8297
  • 500 $0.7647
  • 1,000 $0.7352
$0.7352 / $1.3869 Buy Now

Part Details for BD241C

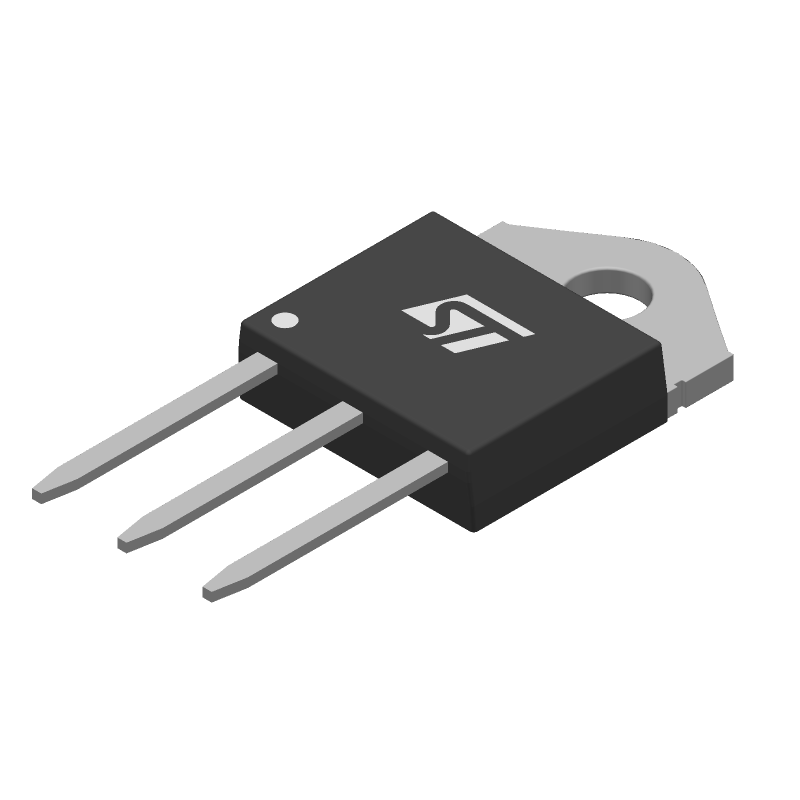

BD241C CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BD241C Part Data Attributes

Parametric Data
BD241C STMicroelectronics
Buy Now Datasheet
Compare Parts:
BD241C STMicroelectronics COMPLEMENTARY SILICON POWER TRANSISTORS
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer STMICROELECTRONICS
Part Package Code TO-220AB
Package Description ROHS COMPLIANT, TO-220, 3 PIN
Pin Count 3
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8541.29.00.95
Factory Lead Time 14 Weeks
Samacsys Manufacturer STMicroelectronics
Collector Current-Max (IC) 3 A
Collector-Emitter Voltage-Max 100 V
Configuration SINGLE
DC Current Gain-Min (hFE) 10
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation Ambient-Max 40 W
Power Dissipation-Max (Abs) 40 W
Qualification Status Not Qualified
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 3 MHz
VCEsat-Max 1.2 V
