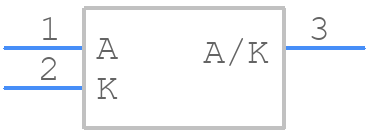

Part Symbol
-
Footprint
-

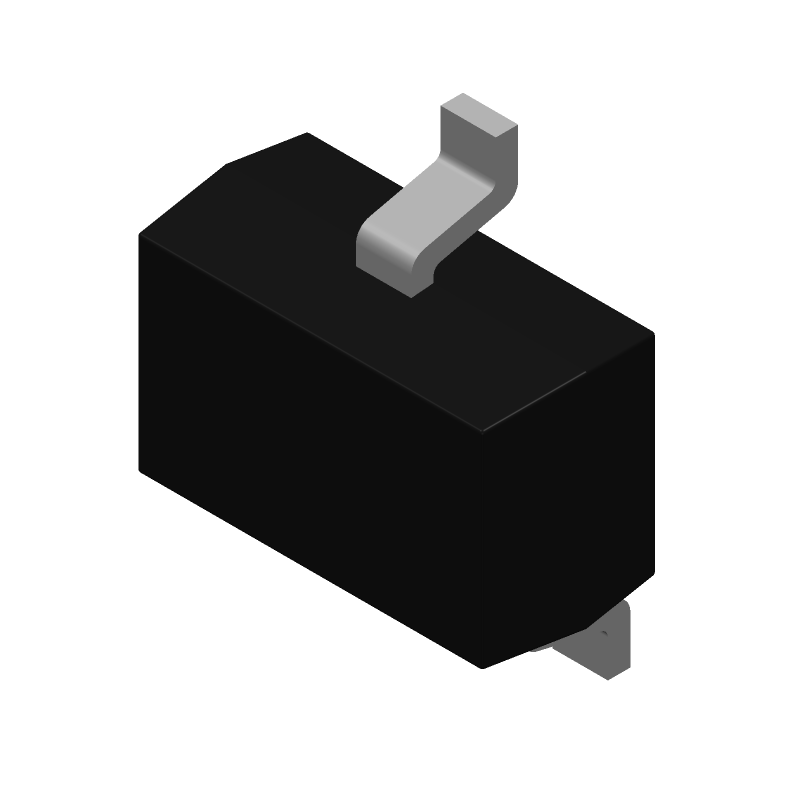

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for BAV199WTHE3-TP by Micro Commercial Components
Results Overview of BAV199WTHE3-TP by Micro Commercial Components
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
BAV199WTHE3-TP Information
BAV199WTHE3-TP by Micro Commercial Components is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAV199WTHE3-TP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
353-BAV199WTHE3-TPCT-ND
|
DigiKey | DIODE ARRAY GP 85V 160MA SOT-323 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
5570 In Stock |
|
$0.0313 / $0.2700 | Buy Now |
|
DISTI #
833-BAV199WTHE3-TP
|
Mouser Electronics | Small Signal Switching Diodes 85V SWITCHING DIODES RoHS: Compliant | 0 |
|
$0.0310 / $0.2700 | Order Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks | 0 |
|
$0.0329 / $0.0355 | Buy Now |
Part Details for BAV199WTHE3-TP
BAV199WTHE3-TP CAD Models
BAV199WTHE3-TP Part Data Attributes
|
|
BAV199WTHE3-TP
Micro Commercial Components
Buy Now
Datasheet
|
Compare Parts:
BAV199WTHE3-TP
Micro Commercial Components
Rectifier Diode, 1 Phase, 2 Element, 0.16A, 85V V(RRM), Silicon, SOT-323, 2 PIN
Select a part to compare: |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICRO COMMERCIAL COMPONENTS CORP | |
| Package Description | SOT-323, 2 PIN | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | MCC | |
| Application | GENERAL PURPOSE | |
| Breakdown Voltage-Min | 85 V | |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e3 | |
| Non-rep Pk Forward Current-Max | 4 A | |
| Number of Elements | 2 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.16 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.2 W | |
| Reference Standard | AEC-Q101 | |
| Rep Pk Reverse Voltage-Max | 85 V | |
| Reverse Current-Max | 0.005 µA | |
| Reverse Recovery Time-Max | 3 µs | |
| Reverse Test Voltage | 75 V | |
| Surface Mount | YES | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 |
