BAS16P2T5G Information
BAS16P2T5G by onsemi is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for BAS16P2T5G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
13AC6083
|
Newark | Diode, Small Signal, Aec-Q101, 100V, Diode Configuration:Single, Repetitive Peak Reverse Voltage:1... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1439 |
|
$0.0300 / $0.0320 | Buy Now |
|
DISTI #
97W4956
|
Newark | 100 V Switching Diode/ Reel |Onsemi BAS16P2T5G RoHS: Not Compliant Min Qty: 16000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0270 / $0.0390 | Buy Now |
|
DISTI #
BAS16P2T5GOSCT-ND
|
DigiKey | DIODE STANDARD 100V 200MA SOD923 Min Qty: 1 Lead time: 9 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
253158 In Stock |
|
$0.0220 / $0.1300 | Buy Now |
|
DISTI #
13AC6083
|
Avnet Americas | Small Signal Switching Diode, Single, 100 V, 200 mA, 1.25 V, 6 ns, 500 mA, SOD-923, 2 Pins - Product... more RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 61 Weeks, 3 Days Container: Ammo Pack |
1439 Partner Stock |
|
$0.0480 | Buy Now |
|
DISTI #
BAS16P2T5G
|
Avnet Americas | Small Signal Switching Diode, Single, 100 V, 200 mA, 1.25 V, 6 ns, 500 mA, SOD-923, 2 Pins - Tape an... more RoHS: Compliant Min Qty: 32000 Package Multiple: 8000 Lead time: 9 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
863-BAS16P2T5G
|
Mouser Electronics | Small Signal Switching Diodes SWITCHING DIODE SOD923 RoHS: Compliant | 149869 |
|
$0.0220 / $0.1200 | Buy Now |
|
DISTI #
V72:2272_07290337
|
Arrow Electronics | Diode Small Signal Switching 0.2A 2-Pin SOD-923 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 9 Weeks Date Code: 2111 Container: Cut Strips | Americas - 28379 |
|
$0.0226 / $0.1196 | Buy Now |
|
|
Future Electronics | BAS16P2T5G Series 100 V 200 mA 240 mW SMT Switching Diode - SOD-923 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 8000 Lead time: 9 Weeks Container: Reel |
304000 Reel |
|
$0.0216 / $0.0228 | Buy Now |
|
|
Future Electronics | BAS16P2T5G Series 100 V 200 mA 240 mW SMT Switching Diode - SOD-923 RoHS: Compliant pbFree: Yes Min Qty: 8000 Package Multiple: 8000 Lead time: 9 Weeks Container: Reel |
56000 Reel |
|
$0.0216 / $0.0228 | Buy Now |
|
|
Onlinecomponents.com | Rectifier Diode Small Signal Switching 0.2A 6ns 2-Pin SOD-923 T/R RoHS: Compliant |
96000 In Stock |
|
$0.0207 / $0.0218 | Buy Now |
Part Details for BAS16P2T5G
BAS16P2T5G CAD Models
BAS16P2T5G Part Data Attributes
|
|
BAS16P2T5G
onsemi
Buy Now
Datasheet
|
Compare Parts:
BAS16P2T5G
onsemi

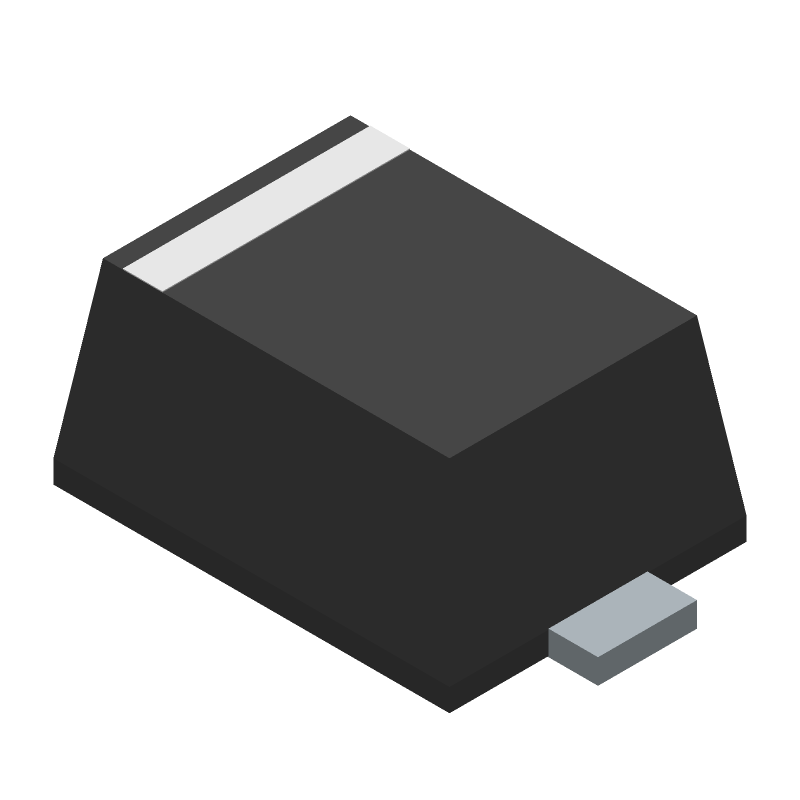

100 V Switching Diode, SOD-923, 1.0x0.6, 0.40 Max Height, 8000-REEL
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | SOD-923, 1.0x0.6, 0.40 Max Height | |
| Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, CASE 514AA, 2 PIN | |
| Pin Count | 2 | |
| Manufacturer Package Code | 514AB | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.70 | |
| Factory Lead Time | 9 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Application | GENERAL PURPOSE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.715 V | |
| JESD-30 Code | R-PDSO-F2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 0.5 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 0.2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Dissipation-Max | 0.24 W | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Recovery Time-Max | 0.006 µs | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 |
