Power Circuits / Linear Regulator ICs / BA08CC0T
Datasheets
BA08CC0T by: ROHM Semiconductor

Fixed Positive LDO Regulator, 8V, 0.5V Dropout, BIPolar, TO-220FP, 3 PIN

Part Details for BA08CC0T by ROHM Semiconductor

Results Overview of BA08CC0T by ROHM Semiconductor

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

BA08CC0T Information

BA08CC0T by ROHM Semiconductor is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for BA08CC0T

Part # Distributor Description Stock Price Buy
DISTI # 01AH6321
Newark Ldo, Fixed, 8V, 1A, -40 To 125Deg C, Output Type:Fixed, Input Voltage Min:4V, Input Voltage Max:2... 5V, Fixed Output Voltage Nom.:8V, Adjustable Output Voltage Min:-, Adjustable Output Voltage Max:-, Output Current:1A, Dropout Voltage Rohs Compliant: Yes |Rohm BA08CC0T more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 13
  • 1 $3.2000
  • 10 $1.8000
  • 100 $1.6200
  • 500 $1.3000
  • 1,000 $1.2000
  • 2,500 $1.1300
  • 5,000 $1.1200
$1.1200 / $3.2000 Buy Now
DISTI # BA08CC0T-ND
DigiKey IC REG LINEAR 8V 1A TO220FP Min Qty: 1 Lead time: 8 Weeks Container: Tube 337
In Stock
  • 1 $2.3500
  • 10 $1.7400
  • 50 $1.4974
  • 100 $1.4222
  • 250 $1.3428
  • 500 $1.2949
  • 1,000 $1.2555
  • 2,500 $1.2139
  • 5,000 $1.1889
$1.1889 / $2.3500 Buy Now
DISTI # 755-BA08CC0T
Mouser Electronics LDO Voltage Regulators REG 1A 8V RoHS: Compliant 222
  • 1 $3.5400
  • 10 $2.2700
  • 25 $1.7300
  • 100 $1.5600
  • 250 $1.3700
  • 500 $1.2500
  • 1,000 $1.1500
  • 2,500 $1.0900
$1.0900 / $3.5400 Buy Now
DISTI # 72488438
Verical LDO Regulator Pos 8V 1A 3-Pin(3+Tab) TO-220FP Tube Min Qty: 57 Package Multiple: 1 Date Code: 2331 Americas - 495
  • 57 $1.3800
  • 100 $1.2400
  • 200 $1.2000
$1.2000 / $1.3800 Buy Now
DISTI # 39222503
Verical LDO Regulator Pos 8V 1A 3-Pin(3+Tab) TO-220FP Tube Min Qty: 76 Package Multiple: 1 Date Code: 2001 Americas - 312
  • 76 $2.7538
$2.7538 Buy Now
Quest Components   249
  • 1 $2.4480
  • 112 $1.2240
  • 246 $1.1322
$1.1322 / $2.4480 Buy Now
Ameya Holding Limited LDO Regulator Pos 8V 1A - 3-Pin(3+Tab) TO-220FP Tube Min Qty: 1 50-Authorized Distributor
  • 1 $2.7500
  • 10 $2.4700
  • 100 $1.9900
  • 500 $1.5700
$1.5700 / $2.7500 Buy Now
DISTI # BA08CC0T
Avnet Silica LDO Regulator Pos 8V 1A 3Pin3Tab TO220FP Tube (Alt: BA08CC0T) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 12 Weeks, 0 Days Silica - 0
Buy Now
DISTI # BA08CC0T
Chip One Stop Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Tube 495
  • 1 $2.8300
  • 10 $1.8100
  • 50 $1.3800
  • 100 $1.2400
  • 200 $1.2000
  • 500 $1.0900
  • 1,000 $1.0600
  • 2,000 $1.0300
  • 4,000 $1.0100
$1.0100 / $2.8300 Buy Now

Part Details for BA08CC0T

BA08CC0T CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

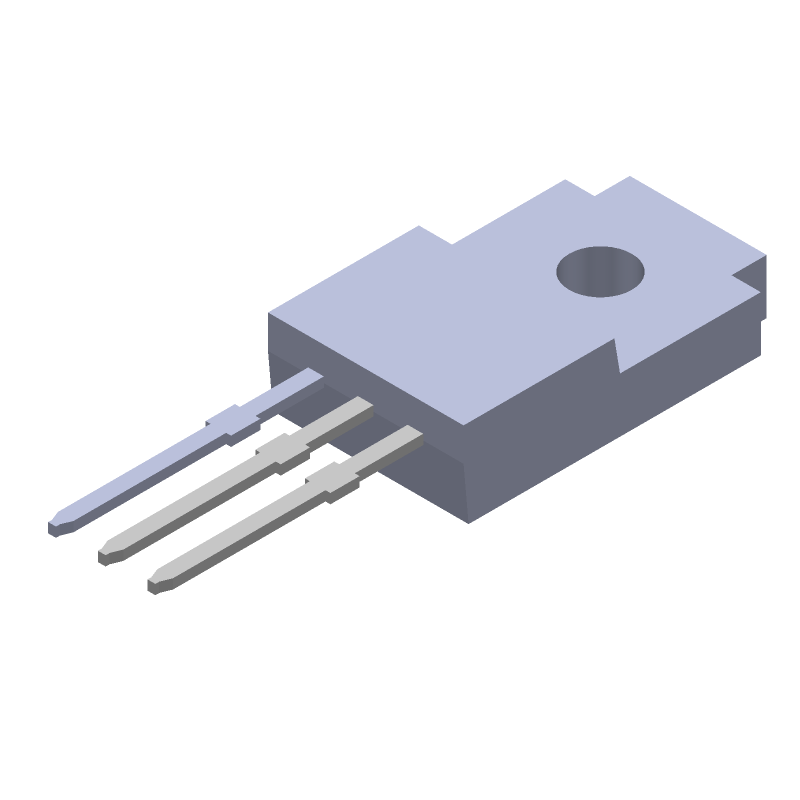

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

BA08CC0T Part Data Attributes

Parametric Data
BA08CC0T ROHM Semiconductor
Buy Now Datasheet
Compare Parts:
BA08CC0T ROHM Semiconductor Fixed Positive LDO Regulator, 8V, 0.5V Dropout, BIPolar, TO-220FP, 3 PIN
Select a part to compare:
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ROHM CO LTD
Part Package Code TO-220FP
Package Description TO-220FP, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer ROHM Semiconductor
Adjustability FIXED
Dropout Voltage1-Max 0.5 V
Dropout Voltage1-Nom 0.3 V
Input Voltage Absolute-Max 35 V
Input Voltage-Max 25 V
Input Voltage-Min 4 V
JESD-30 Code R-XSFM-T3
JESD-609 Code e2
Line Regulation-Max 0.1%
Load Regulation-Max 0.15%
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output Current1-Max 1 A
Output Voltage1-Max 8.16 V
Output Voltage1-Min 7.84 V
Output Voltage1-Nom 8 V
Package Body Material UNSPECIFIED
Package Code SFM
Package Equivalence Code SIP3,.1ISO-TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Qualification Status Not Qualified
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Surface Mount NO
Technology BIPOLAR
Terminal Finish Tin/Copper (Sn/Cu)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Voltage Tolerance-Max 2%

Alternate Parts for BA08CC0T

This table gives cross-reference parts and alternative options found for BA08CC0T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of BA08CC0T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
LD1085P80 STMicroelectronics Check for Price 8V FIXED POSITIVE LDO REGULATOR, 1.5V DROPOUT, PSFM3, TO-220FP, 3 PIN BA08CC0T vs LD1085P80
BA80JC5T ROHM Semiconductor Check for Price Fixed Positive LDO Regulator, 8V, 0.5V Dropout, BIPolar, ROHS COMPLIANT, TO-220FP, 3 PIN BA08CC0T vs BA80JC5T
LD29150P80 STMicroelectronics Check for Price 8V FIXED POSITIVE LDO REGULATOR, 0.7V DROPOUT, PSFM3, LEAD FREE, TO-220FP, 3 PIN BA08CC0T vs LD29150P80

BA08CC0T Related Parts

BA08CC0T Frequently Asked Questions (FAQ)

  • The recommended operating temperature range for the BA08CC0T is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.

  • To ensure proper soldering, follow the recommended soldering conditions and guidelines provided in the datasheet. Use a soldering iron with a temperature range of 250°C to 260°C, and apply a moderate amount of soldering flux. Avoid applying excessive heat or force, which can damage the device.

  • The maximum allowable power dissipation for the BA08CC0T is 1.5W, as specified in the datasheet. Exceeding this limit can cause the device to overheat, leading to reduced performance, reliability issues, or even permanent damage.

  • While the BA08CC0T is designed to operate in a variety of environments, it's essential to take precautions when using it in high-humidity conditions. Ensure the device is properly sealed and protected from moisture ingress, and follow the recommended storage and handling guidelines to prevent damage.

  • To troubleshoot issues with the BA08CC0T, start by reviewing the datasheet and application notes to ensure proper usage and configuration. Check for common issues such as incorrect pin connections, inadequate power supply, or excessive noise. Use oscilloscopes or logic analyzers to debug the circuit, and consult ROHM Semiconductor's technical support resources or forums for additional guidance.
