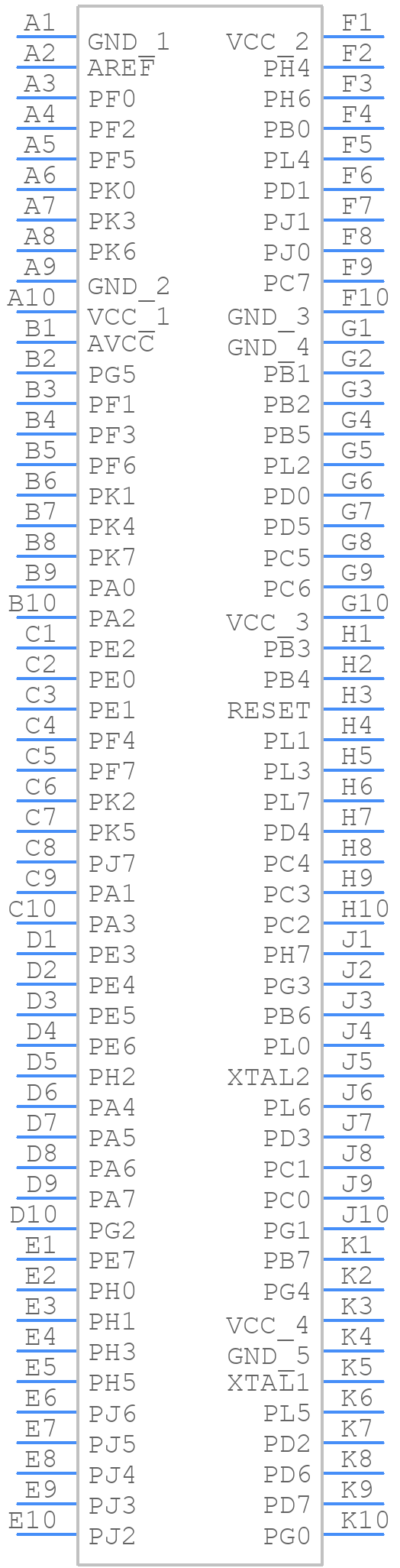

Part Symbol
-

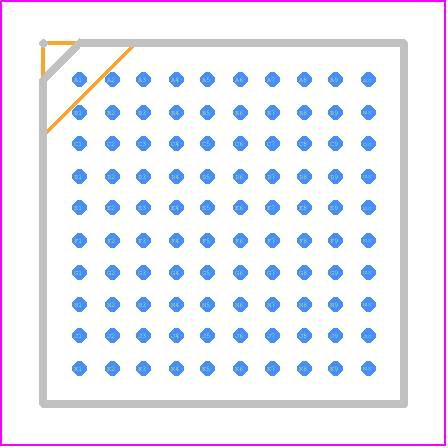

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ATMEGA2560V-8CU by Microchip Technology Inc
Results Overview of ATMEGA2560V-8CU by Microchip Technology Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Automotive
Robotics and Drones
ATMEGA2560V-8CU Information
ATMEGA2560V-8CU by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ATMEGA2560V-8CU
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
44AC2196
|
Newark | Mcu, 8Bit, Avr, 8Mhz, Cbga-100, Product Range:Avr Atmega Family Atmega256X Series Microcontrollers,... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
|
NAC | 8 MHZ, CBGA, IND TEMP, GREEN, 1.8V - Package: 100 TFBGA 9x9x1.2mm TRAY RoHS: Compliant Min Qty: 1 Package Multiple: 250 Container: Tray | 0 |
|
RFQ | |
|
DISTI #
ATMEGA2560V-8CU
|
Avnet Silica | MCU 8bit ATmega AVR RISC 256KB Flash 25V33V5V 100Pin CBGA (Alt: ATMEGA2560V-8CU) RoHS: Compliant Min Qty: 250 Package Multiple: 250 | Silica - 0 |
|
Buy Now | |
|
DISTI #
ATMEGA2560V-8CU
|
EBV Elektronik | MCU 8bit ATmega AVR RISC 256KB Flash 25V33V5V 100Pin CBGA (Alt: ATMEGA2560V-8CU) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Win Source Electronics | IC MCU 8BIT 256KB FLASH 100CBGA | 650 |
|
$625.6251 | Buy Now |
Part Details for ATMEGA2560V-8CU
ATMEGA2560V-8CU CAD Models
ATMEGA2560V-8CU Part Data Attributes
|
|
ATMEGA2560V-8CU
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
ATMEGA2560V-8CU
Microchip Technology Inc
IC MCU 8BIT 256KB FLASH 100CBGA
Select a part to compare: |
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | 9 X 9 MM, 1.20 MM HEIGHT, 0.80 MM PITCH, GREEN, CBGA-100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 5A992.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Additional Feature | OPERATES AT 1.8V MINIMUM SUPPLY AT 2 MHZ | |
| Address Bus Width | 16 | |
| Bit Size | 8 | |
| Boundary Scan | YES | |
| CPU Family | AVR RISC | |
| Clock Frequency-Max | 8 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PBGA-B100 | |
| JESD-609 Code | e1 | |
| Length | 9 mm | |
| Low Power Mode | YES | |
| Number of External Interrupts | 8 | |
| Number of I/O Lines | 86 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 100 | |
| Number of Timers | 6 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFBGA | |
| Package Equivalence Code | BGA100,10X10,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 8192 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.2 mm | |
| Speed | 8 MHz | |
| Supply Current-Max | 14 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Width | 9 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
