Microcontrollers and Processors / Microcontrollers / ATMEGA1608-XF
Datasheets
ATMEGA1608-XF by: Microchip Technology Inc

Microcontroller

Part Details for ATMEGA1608-XF by Microchip Technology Inc

Results Overview of ATMEGA1608-XF by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Internet of Things (IoT) Smart Cities

ATMEGA1608-XF Information

ATMEGA1608-XF by Microchip Technology Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for ATMEGA1608-XF

Part # Distributor Description Stock Price Buy
DISTI # 3052740
Farnell MCU, 8BIT, 20MHZ, SSOP-28 RoHS: Compliant Min Qty: 1 Lead time: 9 Weeks, 1 Days Container: Each 850
  • 1 $1.2754
  • 25 $1.2181
  • 100 $1.1596
  • 250 $1.1369
$1.1369 / $1.2754 Buy Now
DISTI # ATMEGA1608-XF-ND
DigiKey IC MCU 8BIT 16KB FLASH 28SSOP Min Qty: 1 Lead time: 8 Weeks Container: Tube 429
In Stock
  • 1 $1.2100
  • 25 $1.1000
  • 100 $1.0000
$1.0000 / $1.2100 Buy Now
DISTI # ATMEGA1608-XF
Avnet Americas MCU 8-Bit ATMEGA1608 AVR RISC 16KB Flash 1.8V to 5.5V 28-Pin SSOP Tube - Rail/Tube (Alt: ATMEGA1608-... XF) more RoHS: Not Compliant Min Qty: 611 Package Multiple: 47 Lead time: 8 Weeks, 0 Days Container: Tube 0
  • 611 $1.0378
  • 705 $1.0293
  • 1,316 $1.0208
  • 3,055 $1.0123
  • 6,110 $1.0038
$1.0038 / $1.0378 Buy Now
DISTI # 579-ATMEGA1608-XF
Mouser Electronics 8-bit Microcontrollers - MCU 20MHz, 16KB, SOIC RoHS: Compliant 593
  • 1 $1.2100
  • 25 $1.1000
  • 94 $1.0000
$1.0000 / $1.2100 Buy Now
DISTI # ATMEGA1608-XF
Microchip Technology Inc 20MHz, 16KB, SSOP28, Ind 125C, Green, Tube, SSOP, Projected EOL: 2044-04-10 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 8 Weeks, 0 Days Container: Tube 376

Alternates Available
  • 1 $1.2100
  • 25 $1.1000
  • 100 $1.0000
  • 1,000 $0.9100
  • 5,000 $0.8700
$0.8700 / $1.2100 Buy Now
Onlinecomponents.com MCU - 8-bit AVR RISC - 16KB Flash - 2KB SRAM - 20MHz - 1.8-5.5V - -40°C to +125°C - 28-Pin SSOP - Tu... be more RoHS: Compliant 376 Factory Stock
  • 165 $1.5400
  • 329 $1.1600
  • 494 $1.0800
  • 658 $1.0600
$1.0600 / $1.5400 Buy Now
DISTI # 87353613
Verical MCU 8-bit AVR RISC 16KB Flash 3.3V/5V 28-Pin SSOP Tube RoHS: Compliant Min Qty: 38 Package Multiple: 1 Americas - 187
  • 38 $1.8620
$1.8620 Buy Now
DISTI # ATMEGA1608-XF
TME IC: AVR microcontroller, SSOP28, Interface: I2C,PWM,SPI,UART x3 Min Qty: 1 197
  • 1 $1.5900
  • 5 $1.5300
  • 25 $1.4400
  • 94 $1.3400
$1.3400 / $1.5900 Buy Now
NAC 20MHz, 16KB, SOIC - Package: 28 SSOP .209in TUBE RoHS: Compliant Min Qty: 329 Package Multiple: 47 Container: Tube 0
  • 1 $1.3100
  • 100 $1.1800
  • 500 $1.0900
  • 1,000 $1.0600
$1.0600 / $1.3100 Buy Now
Master Electronics MCU - 8-bit AVR RISC - 16KB Flash - 2KB SRAM - 20MHz - 1.8-5.5V - -40°C to +125°C - 28-Pin SSOP - Tu... be more RoHS: Compliant 376 Factory Stock
  • 165 $1.5400
  • 329 $1.1600
  • 494 $1.0800
  • 658 $1.0600
$1.0600 / $1.5400 Buy Now
Vyrian Peripheral ICs 607
RFQ

Part Details for ATMEGA1608-XF

ATMEGA1608-XF CAD Models

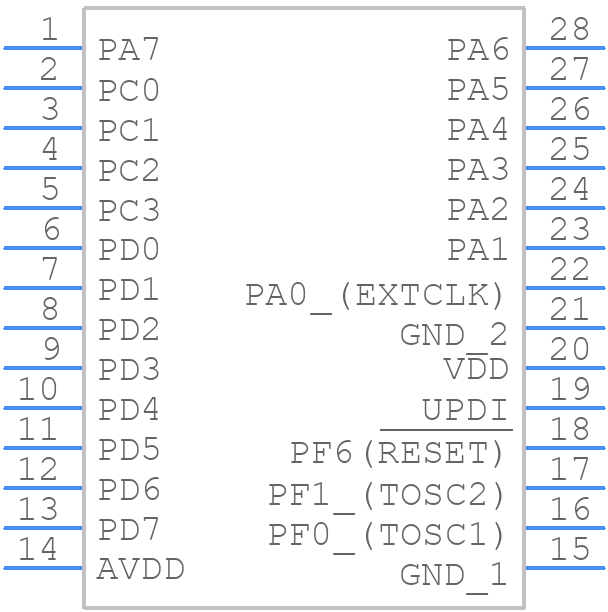

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

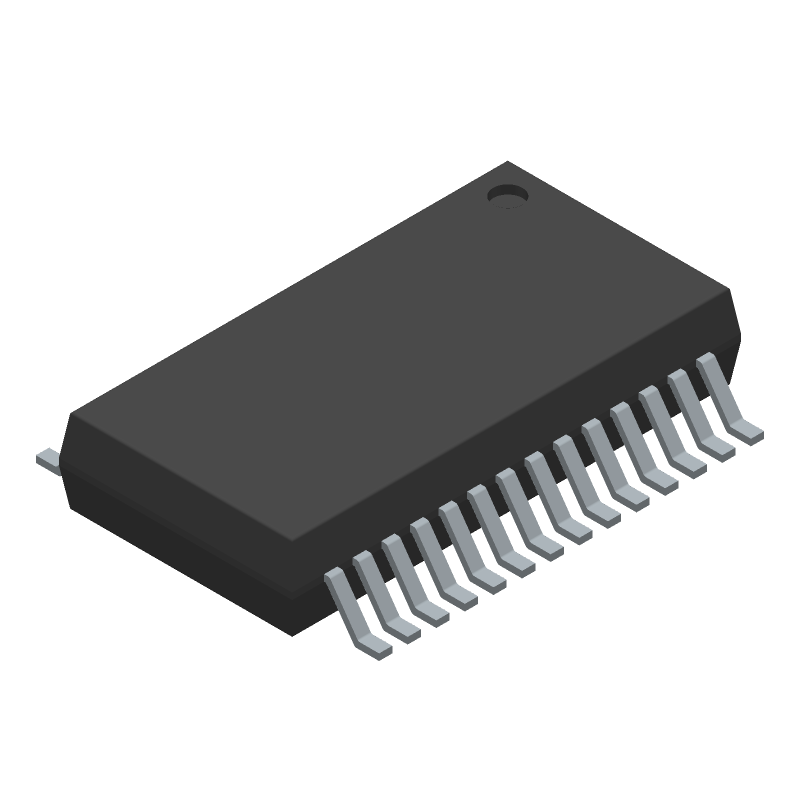

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ATMEGA1608-XF Part Data Attributes

Parametric Data
ATMEGA1608-XF Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
ATMEGA1608-XF Microchip Technology Inc Microcontroller
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description SSOP-28
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.31.00.01
Factory Lead Time 8 Weeks
Date Of Intro 2019-08-07
Samacsys Manufacturer Microchip
Has ADC YES
Additional Feature ALSO OPERATES AT 2.7V SUPPLY @ 8MHZ
Address Bus Width
Bit Size 8
Boundary Scan NO
CPU Family AVR RISC
Clock Frequency-Max 20 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 mm
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 6
Number of I/O Lines 23
Number of Serial I/Os 3
Number of Terminals 28
Number of Timers 4
On Chip Data RAM Width 8
On Chip Program ROM Width 8
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
PWM Channels NO
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
RAM (bytes) 2048
RAM (words) 2048
ROM (words) 16384
ROM Programmability FLASH
Seated Height-Max 2 mm
Speed 16 MHz
Supply Voltage-Max 5.5 V
Supply Voltage-Min 4.5 V
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Width 5.3 mm
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC

Alternate Parts for ATMEGA1608-XF

This table gives cross-reference parts and alternative options found for ATMEGA1608-XF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ATMEGA1608-XF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ATMEGA1608-XU Microchip Technology Inc Check for Price Microcontroller ATMEGA1608-XF vs ATMEGA1608-XU
ATMEGA1608-XUR Microchip Technology Inc $1.0550 Microcontroller ATMEGA1608-XF vs ATMEGA1608-XUR
ATMEGA1608-XFR Microchip Technology Inc Check for Price Microcontroller ATMEGA1608-XF vs ATMEGA1608-XFR
ATMEGA1608-AU Microchip Technology Inc $1.2550 Microcontroller ATMEGA1608-XF vs ATMEGA1608-AU
ATMEGA1608-MFR Microchip Technology Inc $1.2800 Microcontroller ATMEGA1608-XF vs ATMEGA1608-MFR
ATMEGA1608-MU Microchip Technology Inc $1.0900 Microcontroller ATMEGA1608-XF vs ATMEGA1608-MU
ATMEGA1608-MUR Microchip Technology Inc $1.1150 Microcontroller ATMEGA1608-XF vs ATMEGA1608-MUR

ATMEGA1608-XF Frequently Asked Questions (FAQ)

  • The ATMEGA1608-XF can operate at a maximum clock frequency of 20 MHz, but it is recommended to use a clock frequency of 16 MHz or lower for optimal performance and to ensure that the device operates within its specifications.

  • The BOD in the ATMEGA1608-XF can be configured using the BODLEVEL fuse bits in the FUSEBYTE register. The BOD can be set to trigger at a voltage level of 1.8V, 2.2V, 2.7V, or 4.3V, or it can be disabled altogether.

  • Yes, the ATMEGA1608-XF can be used in a 5V system, but it is recommended to use an external voltage regulator to ensure that the device operates within its recommended voltage range of 1.8V to 5.5V. Additionally, the device's I/O pins are not 5V tolerant, so level shifting may be required to interface with 5V devices.

  • The internal oscillator in the ATMEGA1608-XF can be enabled by setting the CKSEL fuses to '11' and the SUT fuses to '10'. The oscillator frequency can be calibrated using the OSCCAL register. It is recommended to use an external crystal oscillator for more accurate clock frequencies.

  • The maximum current that can be sourced or sunk by the I/O pins of the ATMEGA1608-XF is 40mA per pin, with a total current limit of 200mA for all I/O pins combined. It is recommended to use external buffers or drivers for high-current applications.
