Blackfin Processor with Embedded Network Connectivity

Part Details for ADSP-BF536BBCZ-4B by Analog Devices Inc

Results Overview of ADSP-BF536BBCZ-4B by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ADSP-BF536BBCZ-4B Information

ADSP-BF536BBCZ-4B by Analog Devices Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
ADSP-2105BPZ-80RL Rochester Electronics LLC ADSP-2105 - 16-Bit Fixed-Point DSP Microprocessor (-40C to + 85C)
ADSP-2105BPZ-80 Rochester Electronics LLC ADSP-2105 - 16-Bit Fixed-Point DSP Microprocessor (-40C to + 85C)
ADSP-2101BPZ-100 Rochester Electronics LLC ADSP-2101 - 16-Bit Fixed-Point DSP Microprocessor (-40C to + 85C)

Price & Stock for ADSP-BF536BBCZ-4B

Part # Distributor Description Stock Price Buy
DISTI # 53AK9419
Newark Embedded Processor, 400Mhz, 48I/O, Bga, Dsp Type:Core, Data Bus Width:32 Bit, Operating Frequency... Max:400Mhz, Ic Case/Package:Cspbga, No. Of Pins:208Pins, No. Of Mips:-, Interfaces:Can, I2C, Spi, Uart, Ram Memory Size:100Kb Rohs Compliant: Yes |Analog Devices ADSP-BF536BBCZ-4B more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 7
  • 1 $38.3300
  • 5 $33.7200
  • 10 $29.1000
  • 25 $25.5700
  • 50 $24.7000
  • 100 $23.8200
$23.8200 / $38.3300 Buy Now
DISTI # ADSP-BF536BBCZ-4B-ND
DigiKey IC DSP CTLR 16BIT 208CSBGA Min Qty: 1 Lead time: 10 Weeks Container: Tray 85
In Stock
  • 1 $35.2700
  • 10 $29.5220
  • 26 $27.7458
  • 104 $25.7724
  • 260 $24.8039
$24.8039 / $35.2700 Buy Now
DISTI # 584-ADSPBF536BBCZ-4B
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 400MHz, BLACKFIN PROCESS RoHS: Compliant 26
  • 1 $37.4500
  • 10 $27.8400
  • 25 $26.0200
  • 90 $23.8200
$23.8200 / $37.4500 Buy Now
DISTI # V36:1790_06223154
Arrow Electronics DSP Fixed-Point 16bit 400MHz 208-Pin CSP-BGA Tray RoHS: Compliant Min Qty: 26 Package Multiple: 26 Lead time: 10 Weeks Date Code: 2338 Americas - 1
  • 26 $23.7700
  • 104 $23.5300
  • 260 $23.2900
$23.2900 / $23.7700 Buy Now
Analog Devices Inc 400MHz, BLACKFIN PROCESS Package Multiple: 1 17
  • 1 $35.2700
  • 10 $29.5220
  • 1,000 $19.0600
$19.0600 / $35.2700 Buy Now
DISTI # 73551149
Verical DSP Fixed-Point 16bit 400MHz 208-Pin CSP-BGA Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2338 Americas - 1
  • 1 $23.7700
  • 104 $23.5300
  • 260 $23.2900
$23.2900 / $23.7700 Buy Now
Vyrian Peripheral ICs 52
RFQ

Part Details for ADSP-BF536BBCZ-4B

ADSP-BF536BBCZ-4B CAD Models

  • Part Symbol

    Part Symbol

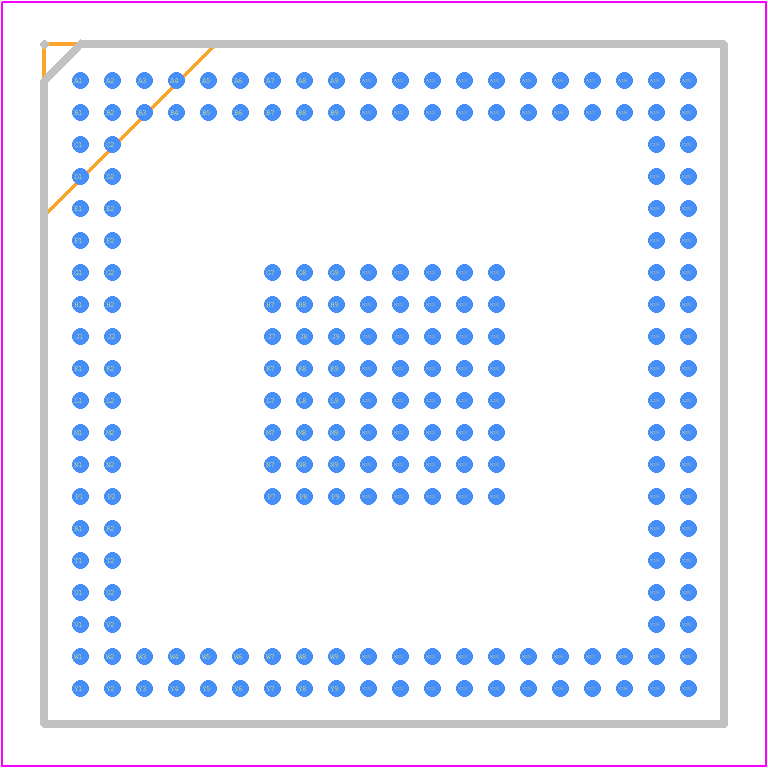

  • Footprint

    footprint

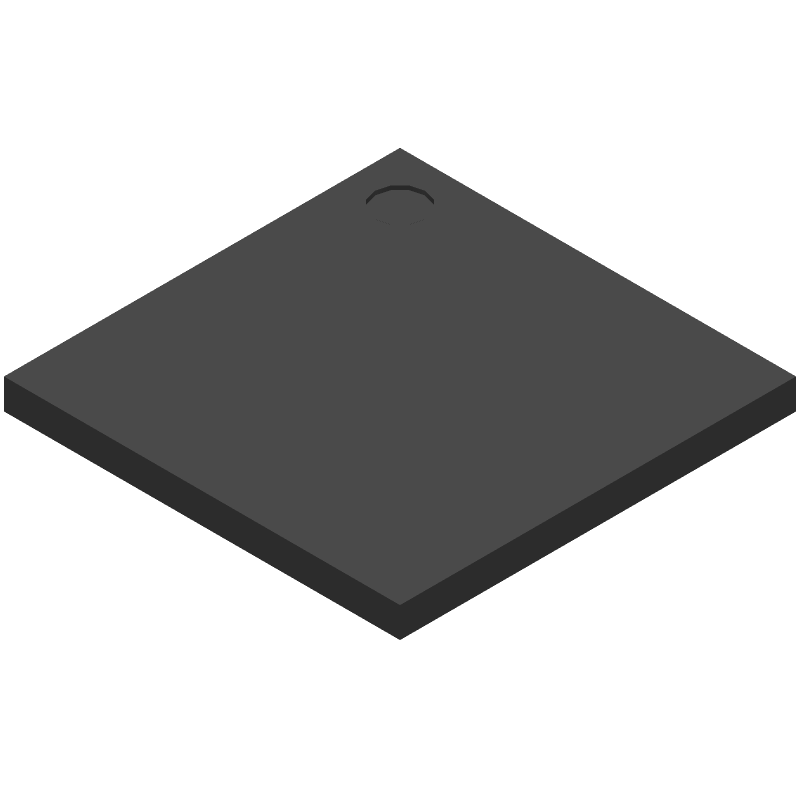

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADSP-BF536BBCZ-4B Part Data Attributes

Parametric Data
ADSP-BF536BBCZ-4B Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADSP-BF536BBCZ-4B Analog Devices Inc Blackfin Processor with Embedded Network Connectivity
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code BGA
Package Description ROHS COMPLIANT, MO-205AM, CSPBGA-208
Pin Count 208
Manufacturer Package Code BC-208-2
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Samacsys Manufacturer Analog Devices
Additional Feature ALSO REQUIRES 2.5V OR 3V SUPPLY
Address Bus Width 19
Barrel Shifter YES
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 400 MHz
External Data Bus Width 16
Format FIXED POINT
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PBGA-B208
JESD-609 Code e1
Length 17 mm
Low Power Mode YES
Moisture Sensitivity Level 3
Number of Terminals 208
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code FBGA
Package Equivalence Code BGA208,20X20,32
Package Shape SQUARE
Package Style GRID ARRAY, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Speed 400 MHz
Supply Voltage-Max 1.32 V
Supply Voltage-Min 0.8 V
Supply Voltage-Nom 1.2 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 0.8 mm
Terminal Position BOTTOM
Width 17 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
