Power Circuits / Linear Regulator ICs / ADPL44002ACPZN3.3-R7
Datasheets
ADPL44002ACPZN3.3-R7 by: Analog Devices Inc

Fixed Positive LDO Regulator, 3.3V, 0.45V Dropout, CMOS

Part Details for ADPL44002ACPZN3.3-R7 by Analog Devices Inc

Results Overview of ADPL44002ACPZN3.3-R7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

ADPL44002ACPZN3.3-R7 Information

ADPL44002ACPZN3.3-R7 by Analog Devices Inc is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Price & Stock for ADPL44002ACPZN3.3-R7

Part # Distributor Description Stock Price Buy
DISTI # 20AM9356
Newark Ldo, Fixed, 3.3V, 0.2A, Lfcsp-Ep-6 Rohs Compliant: Yes |Analog Devices ADPL44002ACPZN3.3-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $1.6500
  • 10 $1.0600
  • 25 $0.9450
  • 50 $0.8360
  • 100 $0.7260
  • 250 $0.6570
  • 500 $0.5880
  • 1,000 $0.5580
$0.5580 / $1.6500 Buy Now
DISTI # 505-ADPL44002ACPZN3.3-R7CT-ND
DigiKey IC REG LIN 3.3V 300MA 6-LFCSP-UD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) Temporarily Out of Stock
  • 1 $1.6200
  • 10 $1.0010
  • 25 $0.8380
  • 100 $0.6537
  • 250 $0.5632
  • 500 $0.5075
  • 1,000 $0.4608
  • 3,000 $0.4019
  • 6,000 $0.3724
  • 9,000 $0.3625
$0.3625 / $1.6200 Buy Now
DISTI # 584-PL44002ACPZN33R7
Mouser Electronics LDO Voltage Regulators 40V 200mA LDO 3.3Vo RoHS: Compliant 0
  • 1 $1.5900
  • 10 $0.9960
  • 25 $0.8590
  • 100 $0.6740
  • 250 $0.5970
  • 500 $0.5360
  • 1,000 $0.4860
  • 3,000 $0.4070
$0.4070 / $1.5900 Order Now
DISTI # V72:2272_30175841
Arrow Electronics Low Noise, CMOS LDO Linear Regulator Min Qty: 1 Package Multiple: 1 Lead time: 39 Weeks Date Code: 2434 Container: Cut Strips Americas - 3000
  • 1 $0.4785
  • 10 $0.4713
  • 25 $0.4640
  • 100 $0.4568
  • 250 $0.4494
  • 500 $0.4422
  • 1,000 $0.4349
  • 3,000 $0.4277
$0.4277 / $0.4785 Buy Now
Analog Devices Inc 40V 200mA LDO 3.3Vo Min Qty: 3000 Package Multiple: 1 0
  • 1 $1.6200
  • 10 $1.0010
  • 25 $0.8380
  • 100 $0.6537
  • 250 $0.5632
  • 500 $0.5075
  • 1,000 $0.4608
  • 3,000 $0.4019
  • 6,000 $0.3724
$0.3724 / $1.6200 Buy Now
DISTI # 87057027
Verical Low Noise, CMOS LDO Linear Regulator Min Qty: 16 Package Multiple: 1 Date Code: 2434 Americas - 3000
  • 16 $0.4713
  • 25 $0.4640
  • 100 $0.4568
  • 250 $0.4494
  • 500 $0.4422
  • 1,000 $0.4349
  • 3,000 $0.4277
$0.4277 / $0.4713 Buy Now

Part Details for ADPL44002ACPZN3.3-R7

ADPL44002ACPZN3.3-R7 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

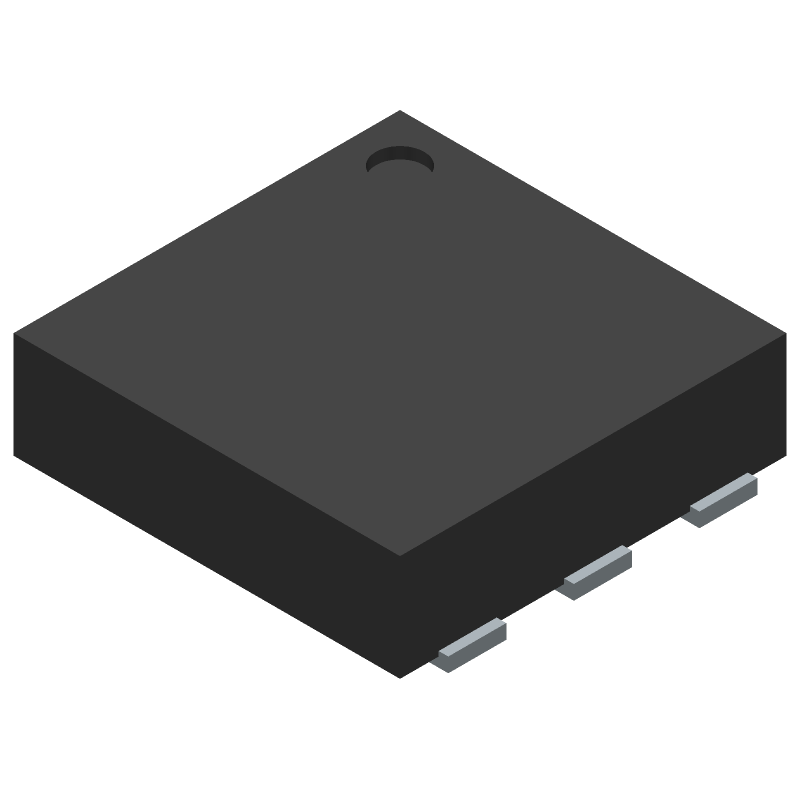

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADPL44002ACPZN3.3-R7 Part Data Attributes

Parametric Data
ADPL44002ACPZN3.3-R7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADPL44002ACPZN3.3-R7 Analog Devices Inc Fixed Positive LDO Regulator, 3.3V, 0.45V Dropout, CMOS
Select a part to compare:
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description LFCSP-6
Reach Compliance Code unknown
Samacsys Manufacturer Analog Devices
Adjustability FIXED
Dropout Voltage1-Max 0.45 V
Dropout Voltage1-Nom 0.22 V
Input Voltage Absolute-Max 44 V
Input Voltage-Max 40 V
Input Voltage-Min 4.3 V
JESD-30 Code S-PDSO-N6
Length 2 mm
Line Regulation-Max 0.0117%
Load Regulation-Max 0.02638%
Number of Functions 1
Number of Outputs 1
Number of Terminals 6
Operating Temperature TJ-Max 125 °C
Operating Temperature TJ-Min -40 °C
Output Current1-Max 0.2 A
Output Voltage1-Max 3.3594 V
Output Voltage1-Min 3.2406 V
Output Voltage1-Nom 3.3 V
Package Body Material UNSPECIFIED
Package Code HVSON
Package Equivalence Code SOLCC6,.08,25
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method TR
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max 0.6 mm
Surface Mount YES
Technology CMOS
Terminal Form NO LEAD
Terminal Pitch 0.65 mm
Terminal Position DUAL
Voltage Tolerance-Max 1.8%
Width 2 mm

ADPL44002ACPZN3.3-R7 Frequently Asked Questions (FAQ)

  • Analog Devices provides a recommended PCB layout guide in their application note AN-1299, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.

  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general guideline is to choose a capacitor with a capacitance value between 10uF to 47uF, and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it meets the required ripple voltage and stability criteria.

  • The maximum ambient temperature rating for the ADPL44002ACPZN3.3-R7 is 125°C, as specified in the datasheet. However, it's essential to consider the device's thermal derating and ensure proper thermal management to maintain reliability and performance.

  • While the ADPL44002ACPZN3.3-R7 is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult Analog Devices' documentation and evaluate the device's performance, radiation hardness, and reliability data to determine its suitability for such applications.

  • To troubleshoot issues with the ADPL44002ACPZN3.3-R7, engineers should follow a systematic approach, including: 1) verifying the input voltage and current, 2) checking the output voltage and current, 3) inspecting the PCB layout and component placement, 4) measuring the output ripple voltage and noise, and 5) consulting Analog Devices' application notes and technical support resources.
