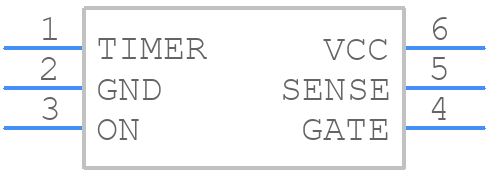

Part Symbol
-
Footprint
-

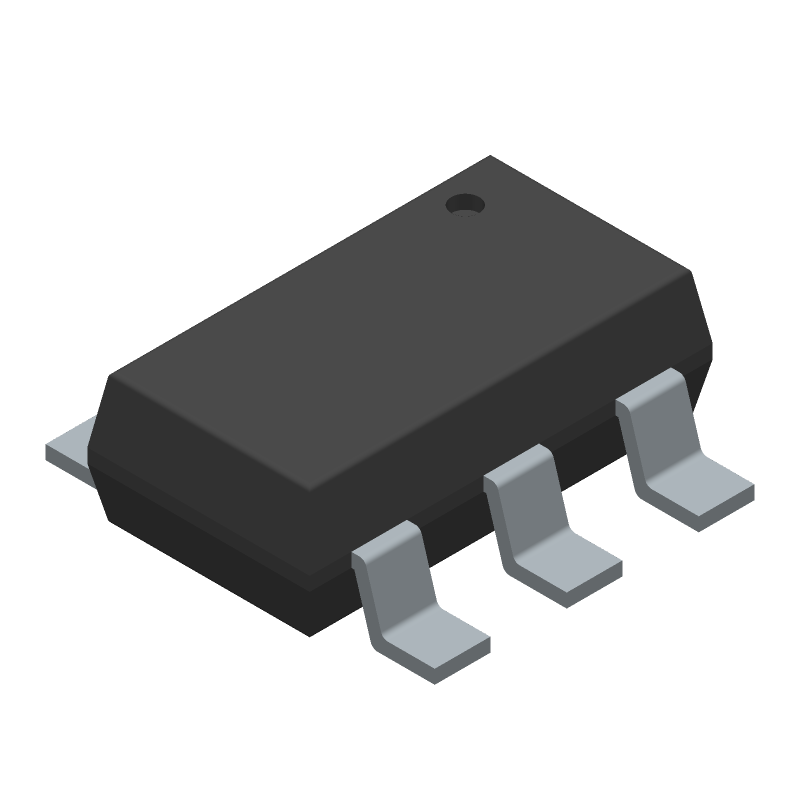

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADM4210-1AUJZ-RL7 by Analog Devices Inc
Results Overview of ADM4210-1AUJZ-RL7 by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ADM4210-1AUJZ-RL7 Information
ADM4210-1AUJZ-RL7 by Analog Devices Inc is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ADM4210-1AUJZ-RL7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
80AK8646
|
Newark | Hot-Swap Ctrl, Tsot-6, -40 To 85Deg C Rohs Compliant: Yes |Analog Devices ADM4210-1AUJZ-RL7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2674 |
|
$3.1800 / $6.0900 | Buy Now |
|
DISTI #
ADM4210-1AUJZ-RL7CT-ND
|
DigiKey | IC HOT SWAP CTRLR GP TSOT6 Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2690 In Stock |
|
$2.7375 / $6.8400 | Buy Now |
|
DISTI #
584-ADM4210-1AUJZ-R7
|
Mouser Electronics | Hot Swap Voltage Controllers Simple Hotswap Auto Retry IC RoHS: Compliant | 100 |
|
$2.7300 / $6.5800 | Buy Now |
|
|
Analog Devices Inc | Simple Hotswap Auto Retry IC Min Qty: 1 Package Multiple: 3000 | 538 |
|
$2.1900 / $6.8400 | Buy Now |
|
|
Quest Components | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6 | 132 |
|
$2.6423 / $6.0975 | Buy Now |
|
|
Rochester Electronics | ADM4210 - HOT SWAP Controller RoHS: Compliant Status: Active Min Qty: 1 | 15974 |
|
$2.3000 / $2.8700 | Buy Now |
Part Details for ADM4210-1AUJZ-RL7
ADM4210-1AUJZ-RL7 CAD Models
ADM4210-1AUJZ-RL7 Part Data Attributes
|
|
ADM4210-1AUJZ-RL7
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADM4210-1AUJZ-RL7
Analog Devices Inc
Low Voltage Hot Swap Controller in 6-pin TSOT Package
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | TSOT-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | UJ-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | HOT SWAP CONTROLLER | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e4 | |
| Length | 2.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSSOP | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1 mm | |
| Supply Current-Max (Isup) | 3.5 mA | |
| Supply Voltage-Max (Vsup) | 16.5 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Supply Voltage-Nom (Vsup) | 3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95 mm | |
| Terminal Position | DUAL | |
| Width | 1.6 mm |
Alternate Parts for ADM4210-1AUJZ-RL7
This table gives cross-reference parts and alternative options found for ADM4210-1AUJZ-RL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADM4210-1AUJZ-RL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM4210-1AUJZ-RL7 | Rochester Electronics LLC | Check for Price | 1-CHANNEL POWER SUPPLY SUPPORT CKT, PDSO6, LEAD FREE, MO-193AA, TSOT-6 | ADM4210-1AUJZ-RL7 vs ADM4210-1AUJZ-RL7 |
