ADL5530ACPZ-R7 by: Analog Devices Inc

DC to 1000 MHz IF Gain Block

Part Details for ADL5530ACPZ-R7 by Analog Devices Inc

Results Overview of ADL5530ACPZ-R7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Consumer Electronics Internet of Things (IoT) Audio and Video Systems Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

ADL5530ACPZ-R7 Information

ADL5530ACPZ-R7 by Analog Devices Inc is an RF/Microwave Amplifier.
RF/Microwave Amplifiers are under the broader part category of RF and Microwave Components.

RF and Microwave Engineering focuses on the design and operation of devices that transmit or receive radio waves. The main distinction between RF and microwave engineering is their wavelength, which influences how energy is transmitted and used in various applications. Read more about RF and Microwave Components on our RF and Microwave part category page.

Price & Stock for ADL5530ACPZ-R7

Part # Distributor Description Stock Price Buy
DISTI # V72:2272_06219841
Arrow Electronics RF Amp Single Gain Amp 1GHz 5.5V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2043 Container: Cut Strips Americas - 2607
  • 1 $5.1040
  • 10 $4.5210
  • 25 $4.0370
  • 50 $3.9970
  • 100 $3.6110
  • 250 $3.2300
  • 500 $2.8730
  • 1,000 $2.4560
$2.4560 / $5.1040 Buy Now
DISTI # 59609876
Verical RF Amp Single Gain Amp 1GHz 5.5V 8-Pin LFCSP EP T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2043 Americas - 2607
  • 3 $5.1040
  • 10 $4.5210
  • 25 $4.0370
  • 50 $3.9970
  • 100 $3.6110
  • 250 $3.2300
  • 500 $2.8730
  • 1,000 $2.4560
$2.4560 / $5.1040 Buy Now
Quest Components 0 MHZ - 1000 MHZ RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER 8
  • 1 $4.5477
  • 3 $3.7898
  • 8 $3.3350
$3.3350 / $4.5477 Buy Now
Rochester Electronics DC to 1000 MHz IF Gain Block RoHS: Compliant Status: End of Life / Last Time Buy Min Qty: 1 4780
  • 25 $2.4000
  • 100 $2.2800
  • 500 $2.1600
  • 1,000 $2.0400
  • 10,000 $1.9200
$1.9200 / $2.4000 Buy Now

Part Details for ADL5530ACPZ-R7

ADL5530ACPZ-R7 CAD Models

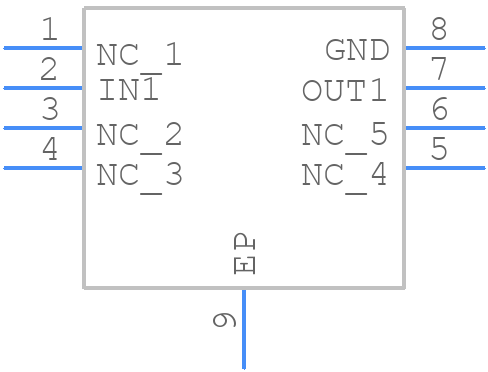

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

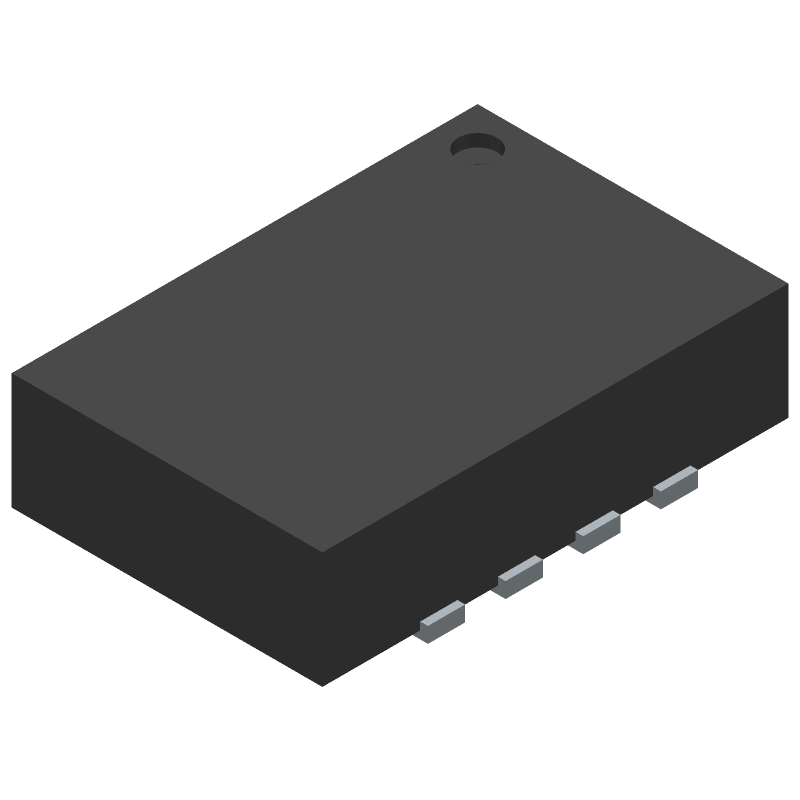

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADL5530ACPZ-R7 Part Data Attributes

Parametric Data
ADL5530ACPZ-R7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADL5530ACPZ-R7 Analog Devices Inc DC to 1000 MHz IF Gain Block
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ANALOG DEVICES INC
Package Description LFCSP, 8 PIN
Pin Count 8
Manufacturer Package Code CP-8-23
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Analog Devices
Additional Feature TAPE AND REEL
Characteristic Impedance 50 Ω
Construction COMPONENT
Gain 13 dB
Input Power-Max (CW) 10 dBm
JESD-609 Code e3
Operating Frequency-Max 1000 MHz
Operating Frequency-Min
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
RF/Microwave Device Type WIDE BAND MEDIUM POWER
Terminal Finish Matte Tin (Sn)

Alternate Parts for ADL5530ACPZ-R7

This table gives cross-reference parts and alternative options found for ADL5530ACPZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADL5530ACPZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ADL5530ACPZ-WP Analog Devices Inc Check for Price DC to 1000 MHz IF Gain Block ADL5530ACPZ-R7 vs ADL5530ACPZ-WP

ADL5530ACPZ-R7 Related Parts

ADL5530ACPZ-R7 Frequently Asked Questions (FAQ)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.

  • The ADL5530ACPZ-R7 requires a bias voltage of 5V ± 0.5V. Ensure the bias voltage is well-regulated and decoupled with a 10uF capacitor to minimize noise and ripple.

  • The ADL5530ACPZ-R7 can handle input powers up to +20 dBm. Exceeding this limit may cause compression and distortion.

  • For optimal NF performance, ensure the input is matched to 50 ohms, use a low-noise bias voltage, and minimize the temperature of the device. A NF of around 2.5 dB can be achieved with proper optimization.

  • The recommended operating temperature range for the ADL5530ACPZ-R7 is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
