Signal Circuits / Multiplexers or Switches / ADG736BRMZ-REEL
Datasheets
ADG736BRMZ-REEL by:
Analog Devices Inc
Analog Devices Inc
Rochester Electronics LLC
Not Found

CMOS Low Voltage 2.5 Ω Dual SPDT Switch

Part Details for ADG736BRMZ-REEL by Analog Devices Inc

Results Overview of ADG736BRMZ-REEL by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Communication and Networking Automotive

ADG736BRMZ-REEL Information

ADG736BRMZ-REEL by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
LMX2325TMX-G Rochester Electronics LLC LMX2325 - RoHS - T/R, PLL Freq Synthesizer

Price & Stock for ADG736BRMZ-REEL

Part # Distributor Description Stock Price Buy
DISTI # 60AK4975
Newark Analogue Switch, 2-Channel, Spdt, Msop, Ic Function:Analog Switch, Power Supply Type:Single Supply... , Supply Voltage Range:1.8V To 5.5V, Ic Case/Package:Msop, No. Of Pins:10Pins, No. Of Channels:2Channels, On Resistance Typ:2.5Ohm Rohs Compliant: Yes |Analog Devices ADG736BRMZ-REEL more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 3610
  • 1 $3.9200
  • 10 $2.9500
  • 25 $2.8200
  • 50 $2.7000
  • 100 $2.5700
  • 250 $2.3100
  • 500 $2.1700
  • 1,000 $1.9800
$1.9800 / $3.9200 Buy Now
DISTI # 505-ADG736BRMZ-REELCT-ND
DigiKey IC SWITCH SPDT X 2 4OHM 10MSOP Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 6327
In Stock
  • 1 $5.1500
  • 10 $3.3570
  • 25 $2.8908
  • 100 $2.3634
  • 250 $2.1045
  • 500 $1.9452
  • 1,000 $1.8500
  • 3,000 $1.8500
$1.8500 / $5.1500 Buy Now
DISTI # 584-ADG736BRMZ-R
Mouser Electronics Analog Switch ICs LOW VOLTAGE DUAL SPDT I.C. RoHS: Compliant 5813
  • 1 $3.7400
  • 10 $2.8200
  • 25 $2.5900
  • 100 $2.3000
  • 250 $2.1200
  • 500 $2.0200
  • 1,000 $1.9600
  • 3,000 $1.9200
$1.9200 / $3.7400 Buy Now
DISTI # V72:2272_06219370
Arrow Electronics Analog Switch Dual SPDT 10-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2236 Container: Cut Strips Americas - 450
  • 1 $2.6800
  • 10 $2.3030
  • 25 $2.1920
  • 100 $2.0400
  • 250 $1.8980
$1.8980 / $2.6800 Buy Now
Analog Devices Inc LOW VOLTAGE DUAL SPDT I.C. Min Qty: 1 Package Multiple: 3000 31266
  • 1 $5.1500
  • 10 $3.3570
  • 25 $2.8908
  • 100 $2.3634
  • 250 $2.1045
  • 500 $1.9452
  • 1,000 $1.8500
  • 3,000 $1.8500
$1.8500 / $5.1500 Buy Now
DISTI # 50876427
Verical Analog Switch Dual SPDT 10-Pin MSOP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Americas - 30000
  • 3,000 $1.8616
$1.8616 Buy Now
DISTI # 86896079
Verical Analog Switch Dual SPDT 10-Pin MSOP T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2236 Americas - 450
  • 4 $2.6800
  • 10 $2.3030
  • 25 $2.1920
  • 100 $2.0400
  • 250 $1.8980
$1.8980 / $2.6800 Buy Now
Rochester Electronics SPDT, 2 Func, 1 Channel, CMOS, PDSO10 RoHS: Compliant Status: Active Min Qty: 1 28
  • 25 $1.9400
  • 100 $1.8400
  • 500 $1.7500
  • 1,000 $1.6500
  • 10,000 $1.5500
$1.5500 / $1.9400 Buy Now
DISTI # ADG736BRMZ-REEL
Richardson RFPD ANALOG SWITCH RoHS: Compliant Min Qty: 3000 0
  • 3,000 $1.9400
$1.9400 Buy Now
Chip 1 Exchange INSTOCK 318
RFQ
Vyrian Other Function Semiconductors 8403
RFQ
Win Source Electronics CMOS Low Voltage 2.5 Ω Dual SPDT Switch | IC SWITCH DUAL SPDT 10MSOP 54670
  • 75 $1.0010
  • 165 $0.9365
  • 250 $0.9042
  • 360 $0.8396
  • 465 $0.8073
  • 585 $0.7751
$0.7751 / $1.0010 Buy Now

Part Details for ADG736BRMZ-REEL

ADG736BRMZ-REEL CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

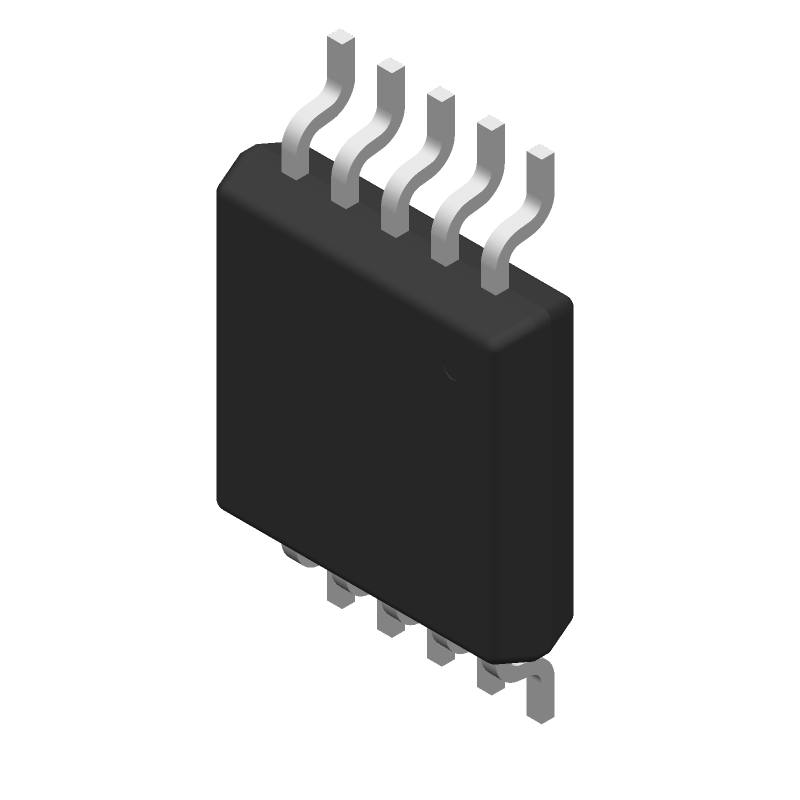

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADG736BRMZ-REEL Part Data Attributes

Parametric Data
ADG736BRMZ-REEL Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADG736BRMZ-REEL Analog Devices Inc CMOS Low Voltage 2.5 Ω Dual SPDT Switch
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code TSSOP
Package Description MSOP-10
Pin Count 10
Manufacturer Package Code RM-10
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog IC - Other Type SPDT
JESD-30 Code S-PDSO-G10
JESD-609 Code e3
Length 3 mm
Moisture Sensitivity Level 1
Number of Channels 1
Number of Functions 2
Number of Terminals 10
Off-state Isolation-Nom 62 dB
On-state Resistance Match-Nom 0.1 Ω
On-state Resistance-Max (Ron) 12 Ω
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Output SEPARATE OUTPUT
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP10,.19,20
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.1 mm
Signal Current-Max 0.03 A
Supply Current-Max (Isup) 0.001 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 1.8 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Switch-off Time-Max 10 ns
Switch-on Time-Max 20 ns
Switching BREAK-BEFORE-MAKE
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Width 3 mm

Alternate Parts for ADG736BRMZ-REEL

This table gives cross-reference parts and alternative options found for ADG736BRMZ-REEL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG736BRMZ-REEL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
ADG736BRM-REEL Rochester Electronics LLC Check for Price DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO10, MO-187BA, MSOP-10 ADG736BRMZ-REEL vs ADG736BRM-REEL
Part Number Manufacturer Composite Price Description Compare
ADG736BRM-REEL Analog Devices Inc Check for Price CMOS Low Voltage 2.5 Ω Dual SPDT Switch ADG736BRMZ-REEL vs ADG736BRM-REEL
ADG736BRMZ-REEL7 Analog Devices Inc $2.1789 CMOS Low Voltage 2.5 Ω Dual SPDT Switch ADG736BRMZ-REEL vs ADG736BRMZ-REEL7
ADG736BRM Analog Devices Inc Check for Price CMOS Low Voltage 2.5 Ω Dual SPDT Switch ADG736BRMZ-REEL vs ADG736BRM
ADG736BRM-REEL7 Analog Devices Inc Check for Price CMOS Low Voltage 2.5 Ω Dual SPDT Switch ADG736BRMZ-REEL vs ADG736BRM-REEL7

ADG736BRMZ-REEL Related Parts

ADG736BRMZ-REEL Frequently Asked Questions (FAQ)

  • A good PCB layout practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. A 4-layer PCB with a dedicated analog ground plane is recommended.

  • Use a low-ESR capacitor (e.g., 0.1 μF) between VDD and GND, and a 10 μF capacitor between VDD and GND for bulk decoupling. Ensure the power supply is clean and regulated, and use a low-dropout regulator if necessary.

  • The ADG736BRMZ-REEL can operate up to 250 MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information.

  • Use ESD protection devices (e.g., TVS diodes) on the input and output pins, and ensure the PCB design includes ESD protection features such as guard rings and ESD-safe layout practices.

  • Use a heat sink or thermal pad on the exposed pad of the QFN package, and ensure good airflow around the device. The maximum junction temperature is 150°C, so thermal management is crucial to prevent overheating.
