ADG412BRZ-REEL7 by: Analog Devices Inc

LC2MOS Precision Quad SPST Switch

Part Details for ADG412BRZ-REEL7 by Analog Devices Inc

Results Overview of ADG412BRZ-REEL7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Environmental Monitoring Internet of Things (IoT) Industrial Automation Computing and Data Storage Aerospace and Defense Healthcare Agriculture Technology Medical Imaging Telecommunications Communication and Networking Automotive

ADG412BRZ-REEL7 Information

ADG412BRZ-REEL7 by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.

A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.

Price & Stock for ADG412BRZ-REEL7

Part # Distributor Description Stock Price Buy
DISTI # ADG412BRZ-REEL7CT-ND
DigiKey IC SWITCH SPST-NOX4 35OHM 16SOIC Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 2433
In Stock
  • 1 $9.0800
  • 10 $6.1310
  • 25 $5.3616
  • 100 $4.4910
  • 250 $4.0636
  • 500 $4.0250
  • 1,000 $4.0250
$4.0250 / $9.0800 Buy Now
DISTI # 584-ADG412BRZ-R7
Mouser Electronics Analog Switch ICs QUAD CMOS ANALOG SWITCH RoHS: Compliant 4357
  • 1 $9.0800
  • 10 $4.7700
  • 25 $4.1900
  • 250 $4.0700
  • 500 $4.0300
  • 1,000 $4.0200
$4.0200 / $9.0800 Buy Now
DISTI # V72:2272_06218847
Arrow Electronics Analog Switch Quad SPST 16-Pin SOIC N T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2309 Container: Cut Strips Americas - 3
  • 0 $4.1416
  • 1 $2.2910
$2.2910 / $4.1416 Buy Now
DISTI # 66950559
Verical Analog Switch Quad SPST 16-Pin SOIC N T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2309 Americas - 3
  • 2 $2.2910
$2.2910 Buy Now

Part Details for ADG412BRZ-REEL7

ADG412BRZ-REEL7 CAD Models

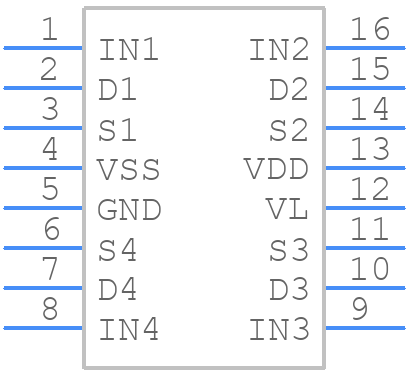

  • Part Symbol
