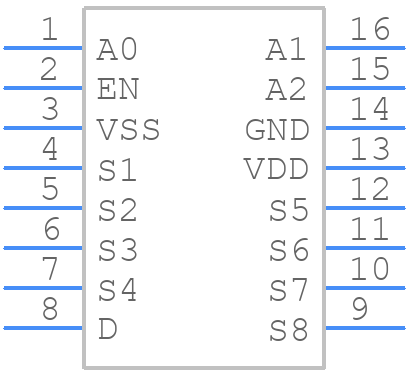

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADG408BRUZ by Analog Devices Inc
Results Overview of ADG408BRUZ by Analog Devices Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Environmental Monitoring
Industrial Automation
Aerospace and Defense
Agriculture Technology
Medical Imaging
Communication and Networking
ADG408BRUZ Information
ADG408BRUZ by Analog Devices Inc is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ADG408BRUZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
60AK4794
|
Newark | Multiplexer, Analogue, Tssop, Ic Function:Analog Multiplexer, Power Supply Type:Single Supply, Su... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 349 |
|
$5.3500 / $10.4900 | Buy Now |
|
DISTI #
505-ADG408BRUZ-ND
|
DigiKey | IC MUX 8:1 100OHM 16TSSOP Min Qty: 1 Lead time: 20 Weeks Container: Tube |
765 In Stock |
|
$5.0875 / $10.8100 | Buy Now |
|
DISTI #
584-ADG408BRUZ
|
Mouser Electronics | Multiplexer Switch ICs 8/DUAL 4 CHANNEL MUX. RoHS: Compliant | 1328 |
|
$5.6800 / $9.3000 | Buy Now |
|
DISTI #
V36:1790_06218813
|
Arrow Electronics | Analog Multiplexer Single 8:1 16-Pin TSSOP Tube RoHS: Compliant Min Qty: 96 Package Multiple: 96 Lead time: 20 Weeks Date Code: 2411 | Americas - 372 |
|
$4.9800 / $5.0880 | Buy Now |
|
|
Analog Devices Inc | 8/DUAL 4 CHANNEL MUX. Package Multiple: 96 | 249 |
|
$4.0700 / $10.8100 | Buy Now |
|
DISTI #
87628601
|
Verical | Analog Multiplexer Single 8:1 16-Pin TSSOP Tube RoHS: Compliant Min Qty: 96 Package Multiple: 96 Date Code: 2411 | Americas - 288 |
|
$4.9800 / $5.0880 | Buy Now |
|
DISTI #
32685507
|
Verical | Analog Multiplexer Single 8:1 16-Pin TSSOP Tube RoHS: Compliant Min Qty: 96 Package Multiple: 96 | Americas - 96 |
|
$5.1195 | Buy Now |
|
DISTI #
77696300
|
Verical | Analog Multiplexer Single 8:1 16-Pin TSSOP Tube RoHS: Compliant Min Qty: 10 Package Multiple: 10 Date Code: 2352 | Americas - 10 |
|
$10.9964 | Buy Now |
|
|
Quest Components | 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16 | 8 |
|
$5.9625 / $11.9250 | Buy Now |
|
|
Quest Components | 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16 | 8 |
|
$14.0000 / $15.7500 | Buy Now |
Part Details for ADG408BRUZ
ADG408BRUZ CAD Models
ADG408BRUZ Part Data Attributes
|
|
ADG408BRUZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADG408BRUZ
Analog Devices Inc
LC2MOS, ±15 V, 8 Channel High Performance Analog Multiplexer
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | TSSOP | |
| Package Description | LEAD FREE, MO-153AB, TSSOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | RU-16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | CAN ALSO OPERATE WITH 12V SUPPLY | |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e3 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Channels | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 75 dB | |
| On-state Resistance Match-Nom | 15 Ω | |
| On-state Resistance-Max (Ron) | 100 Ω | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Signal Current-Max | 0.02 A | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 150 ns | |
| Switch-on Time-Max | 150 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for ADG408BRUZ
This table gives cross-reference parts and alternative options found for ADG408BRUZ. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADG408BRUZ, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADG408BRU-REEL7 | Analog Devices Inc | Check for Price | LC2MOS, ±15 V, 8 Channel High Performance Analog Multiplexer | ADG408BRUZ vs ADG408BRU-REEL7 |
| ADG408BRUZ-REEL7 | Rochester Electronics LLC | Check for Price | 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, LEAD FREE, MO-153AB, TSSOP-16 | ADG408BRUZ vs ADG408BRUZ-REEL7 |
| ADG408BRU | Rochester Electronics LLC | Check for Price | 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, MO-153AB, TSSOP-16 | ADG408BRUZ vs ADG408BRU |
| ADG408BRUZ | Rochester Electronics LLC | Check for Price | 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, LEAD FREE, MO-153AB, TSSOP-16 | ADG408BRUZ vs ADG408BRUZ |
ADG408BRUZ Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD before applying the analog signal. This ensures that the internal circuitry is properly biased before the analog signal is applied.
-
The ADG408BRUZ requires a 50Ω termination resistor to VDD or VSS on each switch terminal to ensure proper operation. This helps to reduce signal reflections and improve signal integrity.
-
The maximum voltage that can be applied to the analog signal pins is VDD + 0.3V or VSS - 0.3V, whichever is less. Exceeding this voltage can cause damage to the device.
-
To minimize power consumption when the device is not in use, set the EN pin low to disable the device. This reduces the quiescent current to less than 1μA.
-
The recommended PCB layout involves keeping the analog signal traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the termination resistors.
