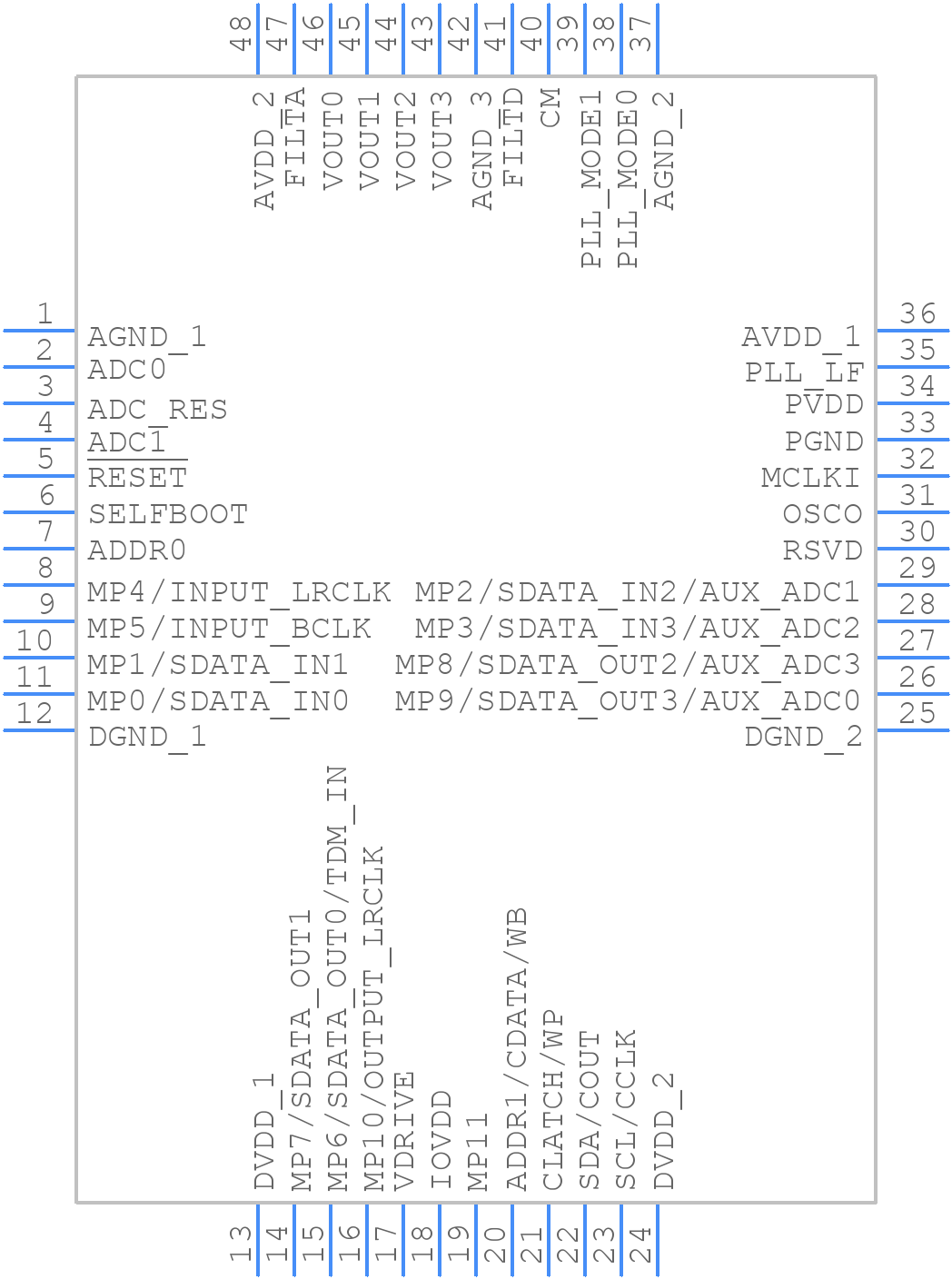

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADAU1401AWBSTZ by Analog Devices Inc
Results Overview of ADAU1401AWBSTZ by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Automotive
Price & Stock for ADAU1401AWBSTZ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53AK9024
|
Newark | Audio Processor, 2 Channel, Lqfp, Audio Control Type:Sigmadsp Digital Audio Processor, Supply Volt... more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 69 |
|
$10.2600 / $16.2000 | Buy Now |
|
DISTI #
505-ADAU1401AWBSTZ-ND
|
DigiKey | IC AUDIO PROC 28/56BIT 48LQFP Min Qty: 1 Lead time: 20 Weeks Container: Tray |
64 In Stock |
|
$6.2531 / $10.0000 | Buy Now |
|
DISTI #
584-ADAU1401AWBSTZ
|
Mouser Electronics | Audio DSPs SigmaDSP 28-/56-Bit Audio Processor RoHS: Compliant | 906 |
|
$6.2500 / $10.0000 | Buy Now |
|
|
Analog Devices Inc | SigmaDSP 28-/56-Bit Audio Proc Package Multiple: 1 | 5872 |
|
$4.7900 / $10.0000 | Buy Now |
|
DISTI #
26634610
|
Verical | DSP 28bit/56bit 50MHz 50MIPS Automotive AEC-Q100 48-Pin LQFP Tray RoHS: Compliant Min Qty: 104 Package Multiple: 104 | Americas - 5824 |
|
$6.0252 | Buy Now |
|
|
Rochester Electronics | ADAU1401AWBSTZ - SigmaDSP 28-/56-Bit Audio Processor RoHS: Compliant Status: Active Min Qty: 1 | 2 |
|
$5.0300 / $6.2900 | Buy Now |
|
|
Vyrian | General Purpose ICs | 1618 |
|
RFQ | |
|
|
Win Source Electronics | IC AUDIO PROC 28/56BIT 48LQFP | 8000 |
|
$6.2500 / $8.0729 | Buy Now |
Part Details for ADAU1401AWBSTZ
ADAU1401AWBSTZ CAD Models
ADAU1401AWBSTZ Part Data Attributes
|
|
ADAU1401AWBSTZ
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADAU1401AWBSTZ
Analog Devices Inc
SigmaDSP 28-/56-Bit Audio Processor with Two ADCs and Four DACs
Select a part to compare: |
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFP | |
| Package Description | ROHS COMPLIANT, PLASTIC, MS-026BBC, LQFP-48 | |
| Pin Count | 48 | |
| Manufacturer Package Code | ST-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | ALSO REQUIRES 1.8V DIGITAL SUPPLY | |
| Consumer IC Type | CONSUMER CIRCUIT | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max (Vsup) | 3.63 V | |
| Supply Voltage-Min (Vsup) | 2.97 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 7 mm |
