Amplifier Circuits / Operational Amplifiers / ADA4505-4ACBZ-R7
Datasheets
ADA4505-4ACBZ-R7 by: Analog Devices Inc

10 µA, RRIO, Zero Input Crossover Distortion Quad Op Amp

Part Details for ADA4505-4ACBZ-R7 by Analog Devices Inc

Results Overview of ADA4505-4ACBZ-R7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Automotive

ADA4505-4ACBZ-R7 Information

ADA4505-4ACBZ-R7 by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for ADA4505-4ACBZ-R7

Part # Distributor Description Stock Price Buy
DISTI # 62AK1322
Newark Op-Amp, 50Khz, -40 To 125Deg C, Wlcsp-14 Rohs Compliant: Yes |Analog Devices ADA4505-4ACBZ-R7 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 844
  • 1 $3.2200
  • 10 $2.2300
  • 25 $2.1100
  • 50 $1.9800
  • 100 $1.8600
  • 250 $1.6700
  • 500 $1.5600
  • 1,000 $1.4700
$1.4700 / $3.2200 Buy Now
DISTI # ADA4505-4ACBZ-R7CT-ND
DigiKey IC CMOS 4 CIRCUIT 14WLCSP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1613
In Stock
  • 1 $4.7100
  • 10 $3.0590
  • 25 $2.6280
  • 100 $2.1406
  • 250 $1.9012
  • 500 $1.7540
  • 1,000 $1.6375
  • 3,000 $1.6375
$1.6375 / $4.7100 Buy Now
DISTI # 584-ADA4505-4ACBZ-R7
Mouser Electronics Precision Amplifiers 10 A, RRIO, Zero Input Crossover Distortion Quad Op Amp RoHS: Compliant 559
  • 1 $3.3500
  • 10 $2.5200
  • 25 $2.3100
  • 100 $2.0700
  • 250 $1.9300
  • 500 $1.8200
  • 1,000 $1.7400
  • 3,000 $1.7000
$1.7000 / $3.3500 Buy Now
DISTI # V72:2272_06217462
Arrow Electronics Op Amp Quad Micropower Amplifier R-R I/O ±2.5V/5V 14-Pin WLCSP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2109 Container: Cut Strips Americas - 4
  • 1 $1.6800
$1.6800 Buy Now
Analog Devices Inc Quad 10uA CMOS/Zero Crossover Min Qty: 1 Package Multiple: 3000 15323
  • 1 $4.7100
  • 10 $3.0590
  • 25 $2.6280
  • 100 $2.1406
  • 250 $1.9012
  • 500 $1.7540
  • 1,000 $1.6375
  • 3,000 $1.6375
$1.6375 / $4.7100 Buy Now
DISTI # 26617493
Verical Op Amp Quad Micropower Amplifier R-R I/O ±2.5V/5V 14-Pin WLCSP T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Americas - 15000
  • 3,000 $1.6478
$1.6478 Buy Now
DISTI # 54440417
Verical Op Amp Quad Micropower Amplifier R-R I/O ±2.5V/5V 14-Pin WLCSP T/R RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2109 Americas - 4
  • 4 $1.6800
$1.6800 Buy Now
Bristol Electronics   1832
RFQ
Rochester Electronics Operational Amplifier, 4 Func, 4000uV Offset-Max, CMOS, PBGA14 RoHS: Compliant Status: Active Min Qty: 1 8132
  • 25 $1.7200
  • 100 $1.6300
  • 500 $1.5500
  • 1,000 $1.4600
  • 10,000 $1.3800
$1.3800 / $1.7200 Buy Now

Part Details for ADA4505-4ACBZ-R7

ADA4505-4ACBZ-R7 CAD Models

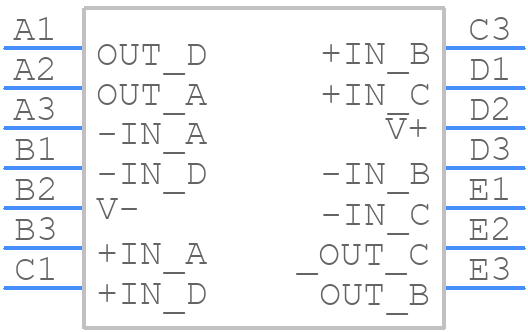

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

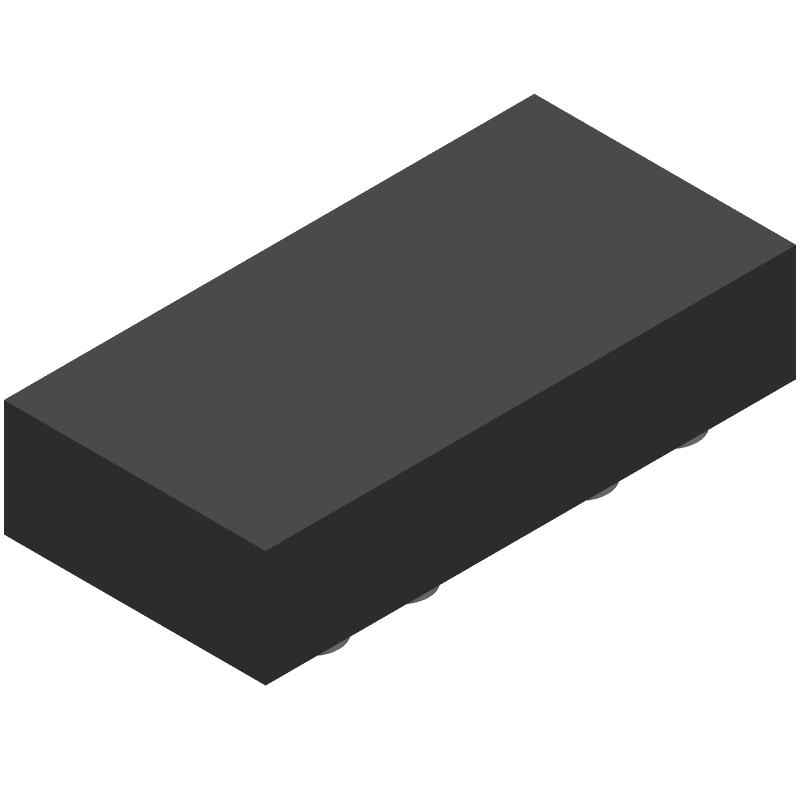

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ADA4505-4ACBZ-R7 Part Data Attributes

Parametric Data
ADA4505-4ACBZ-R7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
ADA4505-4ACBZ-R7 Analog Devices Inc 10 µA, RRIO, Zero Input Crossover Distortion Quad Op Amp
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code BGA
Package Description ROHS COMPLIANT, WLCSP-14
Pin Count 14
Manufacturer Package Code CB-14-1
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.33.00.01
Samacsys Manufacturer Analog Devices
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 0.000375 µA
Bias Current-Max (IIB) @25C 0.000002 µA
Common-mode Reject Ratio-Nom 100 dB
Frequency Compensation YES
Input Offset Voltage-Max 4000 µV
JESD-30 Code R-PBGA-B14
JESD-609 Code e1
Length 2.96 mm
Low-Bias YES
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 1
Number of Functions 4
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code VFBGA
Package Equivalence Code BGA14,5X5,20/10
Package Shape RECTANGULAR
Package Style GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Packing Method TAPE AND REEL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 0.65 mm
Slew Rate-Nom 6500 V/us
Supply Current-Max 0.06 mA
Supply Voltage Limit-Max 5.5 V
Supply Voltage-Nom (Vsup) 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade AUTOMOTIVE
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form BALL
Terminal Pitch 0.5 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom 50
Voltage Gain-Min 56200
Width 1.46 mm

Alternate Parts for ADA4505-4ACBZ-R7

This table gives cross-reference parts and alternative options found for ADA4505-4ACBZ-R7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADA4505-4ACBZ-R7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AD8508ACBZ-REEL7 Rochester Electronics LLC Check for Price QUAD OP-AMP, 3500 uV OFFSET-MAX, 0.095 MHz BAND WIDTH, PBGA14, ROHS COMPLIANT, WLCSP-14 ADA4505-4ACBZ-R7 vs AD8508ACBZ-REEL7
AD8508ACBZ-REEL Analog Devices Inc Check for Price 20 µA Maximum, RRIO, Zero Input Crossover Distortion Quad Op Amp ADA4505-4ACBZ-R7 vs AD8508ACBZ-REEL

ADA4505-4ACBZ-R7 Related Parts

ADA4505-4ACBZ-R7 Frequently Asked Questions (FAQ)

  • A good PCB layout for the ADA4505-4ACBZ-R7 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. A 4-layer PCB with a dedicated ground plane is recommended.

  • To ensure proper decoupling, use a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed as close as possible to the device's power pins. Additionally, use a 1uF ceramic capacitor on the output pin to filter out high-frequency noise.

  • The maximum power dissipation of the ADA4505-4ACBZ-R7 is 1.4W. To ensure reliable operation, the device should be operated at a junction temperature below 150°C.

  • The ADA4505-4ACBZ-R7 is specified to operate from -40°C to 125°C. However, the device's performance may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to maintain reliable operation.

  • To troubleshoot oscillations or instability issues, check the PCB layout for any parasitic inductance or capacitance, ensure proper decoupling, and verify that the input and output impedances are matched. Also, check for any noise or interference on the power supply lines.
