Precision Low Noise, Low Input Bias Current Dual Op Amp

Part Details for AD8672ARZ by Analog Devices Inc

Results Overview of AD8672ARZ by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD8672ARZ Information

AD8672ARZ by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.

Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.

Price & Stock for AD8672ARZ

Part # Distributor Description Stock Price Buy
DISTI # 60AK7763
Newark Op-Amp, 10Mhz, -40 To 125Deg C, Nsoic-8, No. Of Channels:2Channels, Gain Bandwidth Product:10Mhz, ... Supply Voltage Range:± 5V To ± 15V, Ic Case/Package:Nsoic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Rail To Rail:- Rohs Compliant: Yes |Analog Devices AD8672ARZ more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 0
Buy Now
DISTI # 505-AD8672ARZ-ND
DigiKey IC OPAMP GP 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube Temporarily Out of Stock
  • 1 $5.7900
  • 10 $4.4350
  • 98 $3.7272
  • 196 $3.5879
  • 294 $3.5181
  • 588 $3.4158
  • 1,078 $3.3413
  • 2,548 $3.2551
$3.2551 / $5.7900 Buy Now
DISTI # 584-AD8672ARZ
Mouser Electronics Precision Amplifiers DUAL PRECISION LOW NOISE BIPOLAR AMP RoHS: Compliant 2833
  • 1 $7.3400
  • 10 $4.8900
  • 25 $3.5400
  • 98 $3.2500
  • 294 $3.1100
$3.1100 / $7.3400 Buy Now
DISTI # E54:1762_00005970
Arrow Electronics Op Amp Dual Low Noise Amplifier ±15V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 33 Weeks Date Code: 2451 Europe - 702
  • 1 $7.1940
  • 10 $3.4900
  • 98 $3.1750
  • 196 $3.1470
  • 294 $2.9840
  • 588 $2.8820
$2.8820 / $7.1940 Buy Now
Analog Devices Inc DUAL PRECISION LOW NOISE BIPOL Package Multiple: 98 0
  • 1 $7.3400
  • 10 $4.8880
  • 1,000 $2.0900
$2.0900 / $7.3400 Buy Now
DISTI # 87514838
Verical Op Amp Dual Low Noise Amplifier ±15V 8-Pin SOIC N Tube RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2451 Americas - 702
  • 2 $7.1940
  • 10 $3.4900
  • 98 $3.1750
  • 196 $3.1470
  • 294 $2.9840
  • 588 $2.8820
$2.8820 / $7.1940 Buy Now
Bristol Electronics   267
RFQ
Bristol Electronics   40
RFQ
Bristol Electronics   Min Qty: 2 3
  • 2 $3.8080
$3.8080 Buy Now
Quest Components DUAL OP-AMP, 125 UV OFFSET-MAX, 10 MHZ BAND WIDTH, PDSO8 137
  • 1 $22.2975
  • 56 $17.3425
  • 116 $15.8560
$15.8560 / $22.2975 Buy Now
Quest Components DUAL OP-AMP, 125 UV OFFSET-MAX, 10 MHZ BAND WIDTH, PDSO8 136
  • 1 $6.9525
  • 16 $4.6350
  • 55 $4.2874
$4.2874 / $6.9525 Buy Now
Quest Components DUAL OP-AMP, 125 UV OFFSET-MAX, 10 MHZ BAND WIDTH, PDSO8 8
  • 1 $6.9525
  • 2 $4.6350
  • 6 $3.4763
$3.4763 / $6.9525 Buy Now
Quest Components DUAL OP-AMP, 125 UV OFFSET-MAX, 10 MHZ BAND WIDTH, PDSO8 2
  • 1 $5.1000
  • 3 $3.4000
$3.4000 / $5.1000 Buy Now
DISTI # AD8672ARZ
TME IC: operational amplifier, 10MHz, Ch: 2, SO8, ±5÷18VDC,10÷36VDC Min Qty: 1 140
  • 1 $5.4200
  • 3 $4.8800
  • 10 $4.3100
  • 25 $3.8700
  • 98 $3.6100
$3.6100 / $5.4200 Buy Now
DISTI # AD8672ARZ
Richardson RFPD AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 1 0
  • 1 $3.6100
  • 10 $3.5100
  • 25 $3.3700
  • 100 $3.2700
  • 196 $3.2700
$3.2700 / $3.6100 Buy Now
DISTI # SMC-AD8672ARZ
Sensible Micro Corporation AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days 14
RFQ
Component Electronics, Inc IN STOCK SHIP TODAY 3
  • 1 $4.2300
  • 100 $3.1700
  • 1,000 $2.7500
$2.7500 / $4.2300 Buy Now
LCSC 10MHz Dual channel SOIC-8 Precision Op Amps ROHS 165
  • 1 $4.2336
  • 10 $3.4448
  • 30 $3.0505
  • 100 $2.6593
  • 500 $2.4252
  • 1,000 $2.3047
$2.3047 / $4.2336 Buy Now
Vyrian Amplifiers 2318
RFQ
Win Source Electronics IC OPAMP GP 10MHZ 8SOIC 9360
  • 17 $3.0138
  • 36 $2.8194
  • 56 $2.7222
  • 80 $2.5278
  • 103 $2.4305
  • 129 $2.3333
$2.3333 / $3.0138 Buy Now

Part Details for AD8672ARZ

AD8672ARZ CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

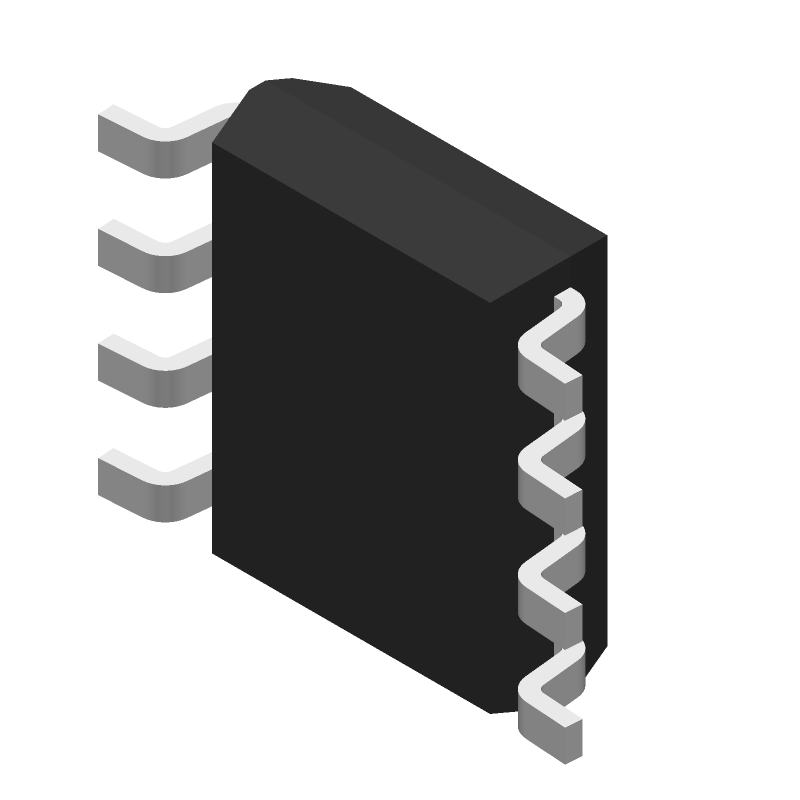

  • 3D Model
