Sensors/Transducers / Temperature Sensors / AD7814ARMZ-REEL7
Datasheets
AD7814ARMZ-REEL7 by: Analog Devices Inc

Temperature Sensor: 10-Bit Digital in 6-Lead SOT-23

Part Details for AD7814ARMZ-REEL7 by Analog Devices Inc

Results Overview of AD7814ARMZ-REEL7 by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD7814ARMZ-REEL7 Information

AD7814ARMZ-REEL7 by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.

Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.

Price & Stock for AD7814ARMZ-REEL7

Part # Distributor Description Stock Price Buy
DISTI # 53AK9833
Newark Temperature Sensor, 10Bit, 2Deg C, Msop, Sensor Output Type:Digital, Accuracy:± 2°C, Sensor Case/... Package:Msop, No. Of Pins:8Pins, Supply Voltage Min:2.7V, Supply Voltage Max:5.5V, No. Of Channels:1Channels, Resolution:10 Bits Rohs Compliant: Yes |Analog Devices AD7814ARMZ-REEL7 more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 98
  • 1 $4.4000
  • 10 $3.3200
  • 25 $3.2700
  • 50 $3.2100
  • 100 $3.1600
  • 250 $3.1500
  • 500 $2.6100
  • 1,000 $2.5000
$2.5000 / $4.4000 Buy Now
DISTI # AD7814ARMZ-REEL7CT-ND
DigiKey SENSOR DIGITAL -55C-125C 8MSOP Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 1066
In Stock
  • 1 $3.9300
  • 5 $3.5180
  • 10 $3.3640
  • 25 $3.1812
  • 50 $3.0566
  • 100 $2.9423
  • 500 $2.7122
  • 1,000 $2.6266
  • 2,000 $2.5480
  • 3,000 $2.5050
$2.5050 / $3.9300 Buy Now
DISTI # 584-AD7814ARMZ-R7
Mouser Electronics Board Mount Temperature Sensors 10-BIT DIGITAL TEMP SENSOR I.C. RoHS: Compliant 4638
  • 1 $3.8400
  • 5 $3.4900
  • 10 $3.3400
  • 25 $3.1400
  • 50 $3.0300
  • 100 $2.9000
  • 500 $2.6600
  • 1,000 $2.5900
$2.5900 / $3.8400 Buy Now
DISTI # V36:1790_06212186
Arrow Electronics Temp Sensor Digital Serial (4-Wire, SPI) 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks Date Code: 2412 Americas - 1000
  • 1,000 $2.4110
  • 2,000 $2.3920
$2.3920 / $2.4110 Buy Now
DISTI # V72:2272_06212186
Arrow Electronics Temp Sensor Digital Serial (4-Wire, SPI) 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2412 Container: Cut Strips Americas - 520
  • 1 $2.7630
  • 10 $2.6660
  • 25 $2.5030
  • 100 $2.4810
  • 250 $2.4580
  • 500 $2.4350
$2.4350 / $2.7630 Buy Now
Analog Devices Inc 10-BIT DIGITAL TEMP SENSOR I.C Min Qty: 1 Package Multiple: 1000 11214
  • 1 $3.9300
  • 10 $3.3640
  • 25 $3.1812
  • 100 $2.9423
  • 500 $2.7122
  • 1,000 $2.6266
  • 2,000 $2.5480
  • 3,000 $2.5050
$2.5050 / $3.9300 Buy Now
DISTI # 26616571
Verical Temp Sensor Digital Serial (4-Wire, SPI) 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Americas - 11000
  • 1,000 $2.4110
$2.4110 Buy Now
DISTI # 83670322
Verical Temp Sensor Digital Serial (4-Wire, SPI) 8-Pin MSOP T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2412 Americas - 1000
  • 1,000 $2.4110
  • 2,000 $2.3920
$2.3920 / $2.4110 Buy Now
DISTI # 80895366
Verical Temp Sensor Digital Serial (4-Wire, SPI) 8-Pin MSOP T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2412 Americas - 520
  • 3 $2.7630
  • 10 $2.6660
  • 25 $2.5030
  • 100 $2.4810
  • 250 $2.4580
  • 500 $2.4350
$2.4350 / $2.7630 Buy Now
Vyrian Sensors & Transducers 1052
RFQ
Win Source Electronics SENSOR TEMPERATURE SPI 8MSOP 2730
  • 13 $5.8125
  • 28 $5.4375
  • 43 $5.2500
  • 62 $4.8750
  • 80 $4.6875
  • 100 $4.5000
$4.5000 / $5.8125 Buy Now

Part Details for AD7814ARMZ-REEL7

AD7814ARMZ-REEL7 CAD Models

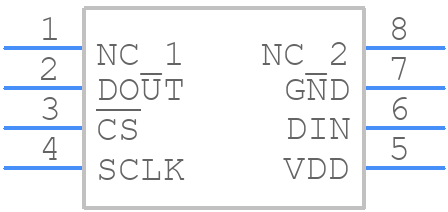

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD7814ARMZ-REEL7 Part Data Attributes

Parametric Data
AD7814ARMZ-REEL7 Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD7814ARMZ-REEL7 Analog Devices Inc Temperature Sensor: 10-Bit Digital in 6-Lead SOT-23
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Package Description LEAD FREE, MO-187AA, MSOP-8
Pin Count 8
Manufacturer Package Code RM-8
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Accuracy-Max (Cel) 3.5 Cel
Body Breadth 3 mm
Body Height 0.95 mm
Body Length or Diameter 3 mm
Housing PLASTIC
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Bits 10
Number of Terminals 8
Operating Current-Max 0.4 mA
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Interface Type 4-WIRE INTERFACE
Package Body Material PLASTIC/EPOXY
Package Equivalence Code TSSOP8,.16
Package Shape/Style SQUARE
Sensors/Transducers Type TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL
Supply Voltage-Max 5.5 V
Supply Voltage-Min 2.7 V
Surface Mount YES
Technology CMOS
Terminal Finish Matte Tin (Sn) - annealed
Termination Type SOLDER

Alternate Parts for AD7814ARMZ-REEL7

This table gives cross-reference parts and alternative options found for AD7814ARMZ-REEL7. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7814ARMZ-REEL7, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AD7814ARMZ-REEL Analog Devices Inc $3.1692 Temperature Sensor: 10-Bit Digital in 6-Lead SOT-23 AD7814ARMZ-REEL7 vs AD7814ARMZ-REEL
AD7814ARM-REEL7 Analog Devices Inc Check for Price Temperature Sensor: 10-Bit Digital in 6-Lead SOT-23 AD7814ARMZ-REEL7 vs AD7814ARM-REEL7
AD7814ARMZ Analog Devices Inc $2.8918 Temperature Sensor: 10-Bit Digital in 6-Lead SOT-23 AD7814ARMZ-REEL7 vs AD7814ARMZ
Part Number Manufacturer Composite Price Description Compare
AD7814ARM-REEL Analog Devices Inc Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 10BIT(s), 3.50Cel, SQUARE, SURFACE MOUNT, MO-187AA, MSOP-8 AD7814ARMZ-REEL7 vs AD7814ARM-REEL
AD7816AR-REEL Analog Devices Inc Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, SOIC-8 AD7814ARMZ-REEL7 vs AD7816AR-REEL
LM74CIM-5/NOPB National Semiconductor Corporation Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 13BIT(s), 3Cel, RECTANGULAR, SURFACE MOUNT, PLASTIC, SOP-8 AD7814ARMZ-REEL7 vs LM74CIM-5/NOPB
LM74CIMX-5/NOPB National Semiconductor Corporation Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 13BIT(s), 3Cel, RECTANGULAR, SURFACE MOUNT, PLASTIC, SOP-8 AD7814ARMZ-REEL7 vs LM74CIMX-5/NOPB
AD7814ARTZ-REEL7 Analog Devices Inc $2.9356 Temperature Sensor: 10-Bit Digital in 6-Lead SOT-23 AD7814ARMZ-REEL7 vs AD7814ARTZ-REEL7
AD7814ART Analog Devices Inc Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 10BIT(s), 2Cel, RECTANGULAR, SURFACE MOUNT, PLASTIC, SOT-23, 6 PIN AD7814ARMZ-REEL7 vs AD7814ART
LM70CIMM-3 Texas Instruments Check for Price ±2°C  Temperature Sensor with SPI Interface 8-VSSOP -55 to 150 AD7814ARMZ-REEL7 vs LM70CIMM-3
LM70CIMM-3/NOPB National Semiconductor Corporation Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 11BIT(s), 3.50Cel, SQUARE, SURFACE MOUNT, PLASTIC, MSOP-8 AD7814ARMZ-REEL7 vs LM70CIMM-3/NOPB
LM71CIMF/NOPB National Semiconductor Corporation Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 14BIT(s), 3Cel, RECTANGULAR, SURFACE MOUNT, SOT-23, 5 PIN AD7814ARMZ-REEL7 vs LM71CIMF/NOPB
LM70CILDX-5 National Semiconductor Corporation Check for Price Switch/Digital Output Temperature Sensor, DIGITAL TEMP SENSOR-SERIAL, 11BIT(s), 3.50Cel, SQUARE, SURFACE MOUNT, PLASTIC, LLP-8 AD7814ARMZ-REEL7 vs LM70CILDX-5

AD7814ARMZ-REEL7 Related Parts

AD7814ARMZ-REEL7 Frequently Asked Questions (FAQ)

  • The recommended layout and placement for the AD7814ARMZ-REEL7 involves keeping the analog and digital grounds separate, using a star-ground configuration, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane and to avoid running digital signals near the analog signals.

  • To ensure accuracy and linearity over the entire operating temperature range, it's essential to calibrate the AD7814ARMZ-REEL7 at multiple temperatures, use a high-quality voltage reference, and ensure that the device is operated within its specified temperature range. Additionally, using a thermocouple or thermistor to monitor the temperature and compensate for temperature-related errors can help improve accuracy.

  • The key considerations for powering the AD7814ARMZ-REEL7 include using a low-noise, low-dropout regulator, decoupling the power supply lines, and ensuring a stable voltage reference. It's also essential to follow proper power-up and power-down sequencing to prevent latch-up and ensure reliable operation.

  • The AD7814ARMZ-REEL7 can be interfaced with a microcontroller or digital signal processor using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. Key considerations for data transfer and synchronization include using a compatible interface protocol, ensuring proper clock synchronization, and implementing error detection and correction mechanisms.

  • Common pitfalls to avoid when designing with the AD7814ARMZ-REEL7 include improper power supply decoupling, inadequate analog signal filtering, and incorrect interface configuration. To troubleshoot common issues, it's essential to use a systematic approach, including reviewing the datasheet, checking the PCB layout, and using debugging tools such as oscilloscopes and logic analyzers.
