AD7663ASTZRL by: Analog Devices Inc

16-Bit Bipolar 250 kSPS PulSAR® CMOS ADC

Part Details for AD7663ASTZRL by Analog Devices Inc

Results Overview of AD7663ASTZRL by Analog Devices Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Internet of Things (IoT) Computing and Data Storage Aerospace and Defense Healthcare Telecommunications Automotive

AD7663ASTZRL Information

AD7663ASTZRL by Analog Devices Inc is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.

A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.

Price & Stock for AD7663ASTZRL

Part # Distributor Description Stock Price Buy
DISTI # 60AK6936
Newark Adc, 16Bit, 250Ksps, Lqfp-48, Resolution (Bits):16Bit, Sampling Rate:250Ksps, Input Channel Type:... Differential, Data Interface:Microwire, Parallel, Qspi, Serial, Spi, Supply Voltage Type:Single, Supply Voltage Min:4.75V Rohs Compliant: Yes |Analog Devices AD7663ASTZRL more RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 1604
  • 1 $40.4100
  • 10 $38.4100
  • 25 $37.5800
  • 50 $36.4500
  • 100 $35.3200
  • 250 $34.4100
  • 500 $34.2900
  • 1,000 $33.3500
$33.3500 / $40.4100 Buy Now
DISTI # 505-AD7663ASTZRLCT-ND
DigiKey IC ADC 16BIT SAR 48LQFP Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 1463
In Stock
  • 1 $32.8200
  • 10 $26.6040
  • 25 $25.0516
  • 100 $23.3450
  • 250 $22.5316
  • 2,000 $21.3061
$21.3061 / $32.8200 Buy Now
DISTI # 584-AD7663ASTZR
Mouser Electronics Analog to Digital Converters - ADC 16-Bit, 250 Ksps CMOS A/D Converter 336
  • 1 $31.1200
  • 10 $22.7500
  • 25 $20.5700
  • 100 $20.2500
$20.2500 / $31.1200 Buy Now
DISTI # V72:2272_06211505
Arrow Electronics 4-Channel Single ADC SAR 250ksps 16-bit Parallel/Serial 48-Pin LQFP T/R Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2316 Container: Cut Strips Americas - 353
  • 1 $25.8200
  • 10 $25.0100
  • 25 $24.1900
  • 100 $23.3800
  • 250 $22.5600
  • 500 $21.7400
$21.7400 / $25.8200 Buy Now
Analog Devices Inc 16-Bit, 250 Ksps CMOS A/D Conv Min Qty: 1 Package Multiple: 2000 293
  • 1 $31.1200
  • 10 $22.7450
  • 25 $20.5632
  • 100 $20.2500
  • 1,000 $15.3900
  • 2,000 $20.2500
$15.3900 / $31.1200 Buy Now
DISTI # 68482182
Verical 4-Channel Single ADC SAR 250ksps 16-bit Parallel/Serial 48-Pin LQFP T/R Min Qty: 1 Package Multiple: 1 Date Code: 2316 Americas - 353
  • 1 $25.8200
  • 10 $22.5400
  • 25 $21.8900
  • 100 $21.8200
  • 250 $21.7400
$21.7400 / $25.8200 Buy Now
Ameya Holding Limited IC ADC 16BIT CMOS 48-LQFP 1201
RFQ
DISTI # AD7663ASTZRL
Richardson RFPD CONVERTER - ADC RoHS: Compliant Min Qty: 2000 0
  • 2,000 $21.1900
$21.1900 Buy Now
Vyrian Converters 974
RFQ
Win Source Electronics IC ADC 16BIT SAR 48LQFP / 16 Bit Analog to Digital Converter 1 Input 1 SAR 48-LQFP (7x7) 2010
  • 4 $16.1740
  • 7 $15.1310
  • 11 $14.6090
  • 15 $13.5660
  • 20 $13.0440
  • 24 $12.5220
$12.5220 / $16.1740 Buy Now

Part Details for AD7663ASTZRL

AD7663ASTZRL CAD Models

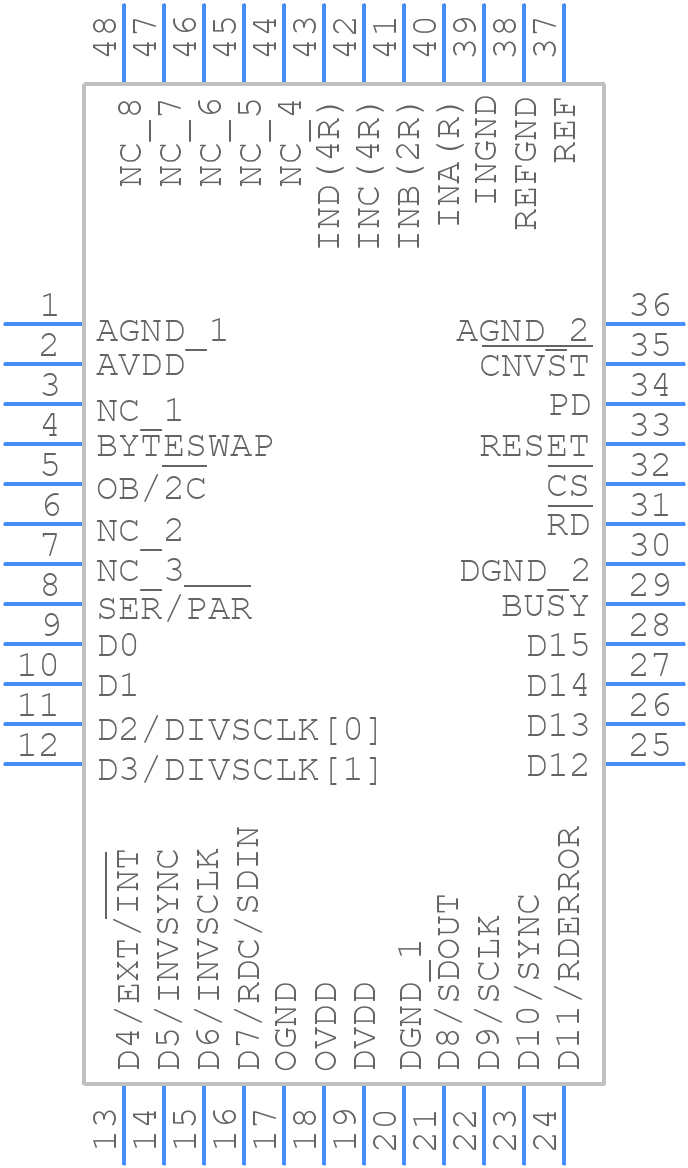

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

AD7663ASTZRL Part Data Attributes

Parametric Data
AD7663ASTZRL Analog Devices Inc
Buy Now Datasheet
Compare Parts:
AD7663ASTZRL Analog Devices Inc 16-Bit Bipolar 250 kSPS PulSAR® CMOS ADC
Select a part to compare:
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ANALOG DEVICES INC
Part Package Code QFP
Package Description MS-026BBC, LQFP-48
Pin Count 48
Manufacturer Package Code ST-48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Analog Devices
Analog Input Voltage-Max 10 V
Analog Input Voltage-Min -10 V
Conversion Time-Max 1.25 µs
Converter Type ADC, SUCCESSIVE APPROXIMATION
JESD-30 Code S-PQFP-G48
JESD-609 Code e3
Length 7 mm
Linearity Error-Max (EL) 0.0046%
Moisture Sensitivity Level 3
Number of Analog In Channels 4
Number of Bits 16
Number of Functions 1
Number of Terminals 48
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Output Bit Code BINARY, 2'S COMPLEMENT BINARY
Output Format SERIAL, PARALLEL, WORD
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP48,.35SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Sample Rate 0.25 MHz
Sample and Hold / Track and Hold SAMPLE
Seated Height-Max 1.6 mm
Supply Voltage-Nom 5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 7 mm

Alternate Parts for AD7663ASTZRL

This table gives cross-reference parts and alternative options found for AD7663ASTZRL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of AD7663ASTZRL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
AD7663AST Analog Devices Inc Check for Price IC 4-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, PQFP48, MS-026BBC, LQFP-48, Analog to Digital Converter AD7663ASTZRL vs AD7663AST
AD7663ASTRL Analog Devices Inc Check for Price IC 4-CH 16-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, PQFP48, MS-026BBC, LQFP-48, Analog to Digital Converter AD7663ASTZRL vs AD7663ASTRL
AD7663ASTZ Analog Devices Inc $28.8207 16-Bit Bipolar 250 kSPS PulSAR® CMOS ADC AD7663ASTZRL vs AD7663ASTZ

AD7663ASTZRL Related Parts

AD7663ASTZRL Frequently Asked Questions (FAQ)

  • The recommended power-up sequence is to apply VDD first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.

  • To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and minimize the distance between the AD7663ASTZRL and the analog input signal. Also, use a low-impedance source for the reference voltage and decouple the power supplies with ceramic capacitors.

  • The maximum sampling rate of the AD7663ASTZRL is 250 kSPS. However, the actual sampling rate may be limited by the system's clock frequency, analog input bandwidth, and other system-level factors.

  • The AD7663ASTZRL outputs 16-bit data in a serial format. You can use a microcontroller or FPGA to receive and process the data. Make sure to synchronize the data transfer with the clock signal and handle the data in the correct byte order.

  • The SYNC pin is used to synchronize the conversion process with an external clock signal. It allows the AD7663ASTZRL to operate in a synchronous mode, ensuring that the conversions are triggered by the rising edge of the SYNC signal.
